Façade systems
All-in-one solutions for ventilated rainscreen façades.
Façade systems

Façade systems

All-in-one solutions for ventilated rainscreen façades

The fischer façade systems business unit of the fischer Group of Companies offers innovative and high-quality all-in-one solutions for the secure and aesthetic installation of ventilated rainscreen façades. The company also offers a wide range of services, as the fischer specialists support planners and façade builders with consultation and calculation services from the briefing and installation stage across all construction phases until the project is successfully completed.

fischer’s all-in-one systems of compatible products with tested and approved individual components includes a comprehensive range of substructure solutions. With the acquisition of BWM Fassadensysteme GmbH from Leinfelden-Echterdingen in 2018, the fischer portfolio expanded considerably. fischer now offers various subframe systems for concealed and exposed fixing of rear-ventilated rainscreen facades from a single source.

More information

Our products


fischer rainscreen façade advisor.

The digital tool for architects, consultants and contractors.

Within a few clicks, you can find the suitable fischer façade system as a complete solution for the realisation of your ventilated rainscreen façade. The façade solutions are selected according to cladding material, fixing type, wall structure, building substrate, insulation thickness and thermal efficiency. The system recommendation is then provided in an output file. In addition to the system description, this also contains helpful information such as CAD drawings, BIM data, technical properties and drafting tender specifications.
In this way, you can quickly and easily obtain an initial solution proposal for your façade project.

Start application

All-in-one solutions for ventilated rainscreen façades
Façade systems

Our complete solutions

Creative freedom and functionality

The exposed and concealed fischer BWM facade system solutions are suitable for all standard cladding materials for ventilated rainscreen facades and fulfil all requirements on buildings regarding aesthetics, sustainability and energy efficiency. The modern façade technology also provides a healthy indoor climate, as rear-ventilated rooms constantly dissipate the moisture from the structure and living spaces.

Highlights of fischer façade systems:


  • Fast and easy installation
  • Low maintenance costs
  • Long service life
  • Weather protection
  • High energy efficiency

Exposed fixing systems

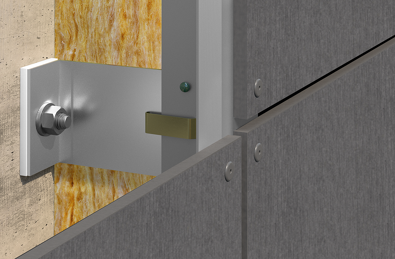

The façade system for exposed and direct fixing of façade panels consists of the vertical subframe system ATK 100. Components of the vertical level are wall holders and vertical profiles as well as necessary connectors and fixings. The façade panels are exposed fixed to these vertical profiles with rivets or self-tapping screws, exposed clamps or a glued solution.

More information

Concealed fixing systems

The façade system for concealed fixing of façade panels consists of a vertical and horizontal subframe system. Components of the vertical level are wall holders and vertical profiles as well as necessary connectors and fixings. The horizontal level consists of profiles and clasps. Undercut anchors connect the façade panels with the horizontal components of the subframe system.

More information

Concealed fixing solution - undercut anchors

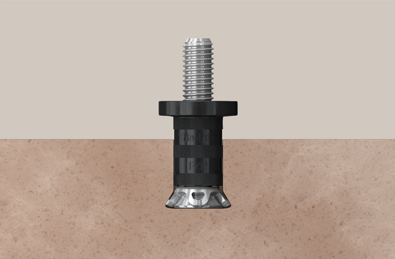

The fischer Zykon panel anchors FZP II enable the concealed fixing of façade panels in ventilated rainscreen façades. They ensure a inter-locking and therefore completely stress-free fixing in an conical drill hole. By attaching the undercut anchors to the back of the panels, the fixing solution is not visible from the façade side and is therefore visually appealing.

More information

Various cladding materials - various facade system solutions - various partnerships

The fischer facade systems offer solutions for each and every cladding material.

More information

Advantages of fischer façade systems

On-site support
Technology leadership beyond the state-of-the-art
Approved and third-party certified systems and in-house test laboratory
Global availability and supply of a complete system from a single source
Cost efficiency of the overall system with fischer quality
Fast supply and installation of the system

Our references

„Raffles City“, China

‘Raffles City’ in Chongqing, China is a megastructure. The new world record construction includes the world’s tallest ‘horizontal skyscraper’. Around 300,000 fischer Zykon panel anchors FZP II provide a firm hold to the natural stone panels on all of the structure’s eight skyscrapers.

More information

An iconic façade

The fischer Group of Companies supplied around 85,000 Zykon panel anchors to the most prominent construction project in the Albanian capital of Tirana, the Downtown One commercial and residential tower. The façade can unfold its full iconic effect thanks to the secure and concealed undercut anchors.

More information

A secure hold all down the line

fischer fixing products are proving their worth under challenging conditions during the expansion of the metro in Kolkata, India. Products being used include FZP II undercut anchors, substructure solutions and FBN II bolt anchors to anchor the cladding with granite panels in the stations. More than 30,000 fischer fixing solutions have been used in total so far.

More information

La Grand Arche, Frankreich

The multi-storey office building La Grande Arche de la Fraternité is showcasing itself with a new appearance and the same old charm in Puteaux just outside of Paris.

More information

Sabah Al-Salem Kuwait University, Kuwait

The façade of the new sports facilities on the campus of Sabah Al-Salem Kulait University combine style and safety, also thanks to fischer FZP II M8i internal thread anchors.

More information

Our product highlight

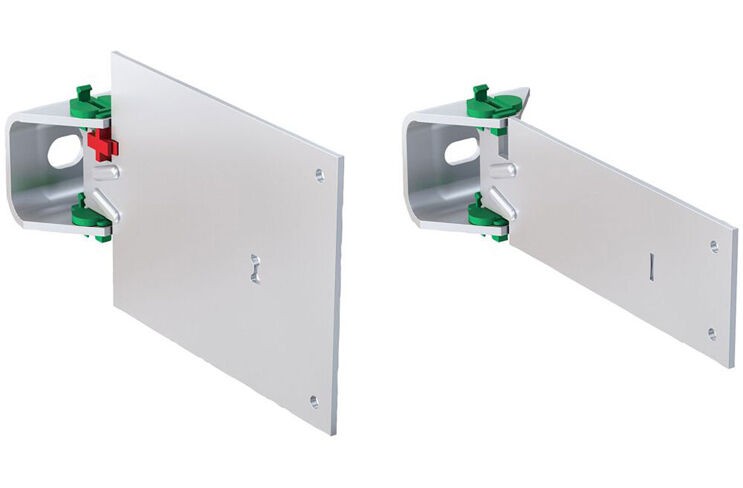

Wall holders ZeLa

Thermally decoupled wall holder for ventilated rainscreen façades.

The thermally decoupled wall holders ZeLa, consting of a base console and a sword made of aluminum or stainless steel, separated by polyamide couplings, form the basis for the vertical layer of the vertical subframe system ATK 100. They are fixed to the building substrate using fischer fixings (such as frame fixings SXRL). To reduce thermal bridges, the wall holders can be installed with additional thermostops made of hard PVC. In order to enable all common insulation thicknesses and façade offsets, various sword lengths are availalbe. To compensate the thermal expansion of the profiles, the wall holders are used both as fixed and sliding points. In addition to the proportional wind loads, the fixed point absorbs the entire dead load of the façade panels and subframe. The special feature of this system is the integrated sliding mechanism in the polyamide couplings, which means that no slotted holes are required in the sword.

More information
