Universal plug UX
UX 10 x 60 K NV
Universal plug UX

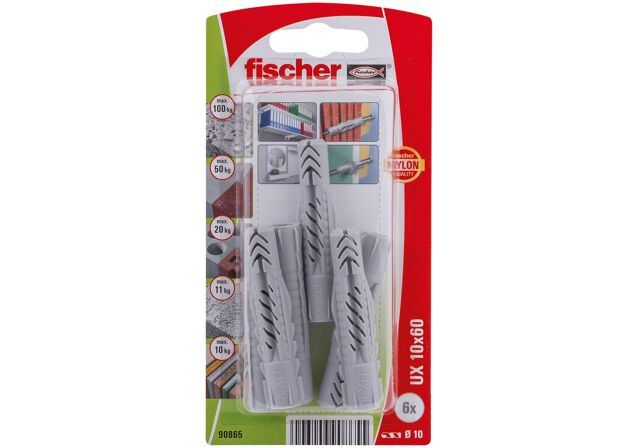

fischer Universal plug UX 10 x 60
Download of image data
Plug holds in all building materials.
Plug expands in solid building materials.
Knots in perforated brick and behind gypsum plasterboard.
Optimum screw guidance.
Enter the postal code or city and find the nearest fischer dealer.
Postcode or place
Your advantages / Product description
The universal operating principle (knotting or expanding) allows for use in all solid, hollow and board building materials. Thus the UX is the correct choice for unknown base materials.
The UX's angled connection ridges allow for optimum screw guidance. Serrated anti-rotation locks prevent rotation in the drill hole. This guarantees the greatest possible installation safety.
Fixing sets with screws, eye screws and hooks provide the right solution for all applications.
Application and approval
Gypsum plasterboard and gypsum fibreboards
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid panel made from gypsum
Solid brick made from lightweight concrete
You can find detailed information on building materials in the approval document.
The UX without rim is suitable for push-through installation.

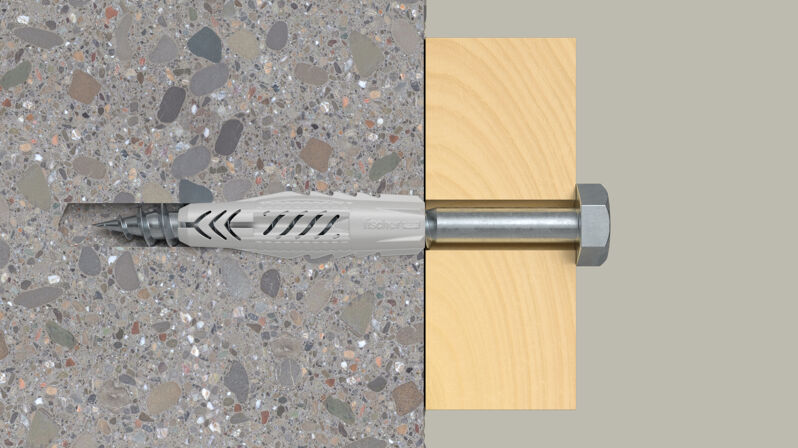

Turning in the screw causes the UX to expand in the solid building material and to knot within the cavity.
The required screw length is given by the plug length + fixture thickness + 1 x screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of board building materials, the threadless part of the screw must not be longer than the fixture, and the UX with rim is to be used.
The edge distance must be at least one plug length.
Min. drill hole depth
Min. panel thickness
Wood and chipboard screws
6.0 - 8.0
6 x UX 10 x 60
