fischer Universal plug UX 8 x 50

Name: fischer Universal plug UX 8 x 50
Brand: fischer

Product Variant

Download of image data

Top Features

Plug holds in all building materials.
Maximum hold in solid and hollow building materials due to knotting.
Optimum screw guidance due to slanting connection bridges.
Optimum screw guidance.
Installation safety due to anti-rotation lock.

The universal nylon plug for all building materials.

Advantages

The universal operating principle (knotting or expanding) allows for use in all solid, hollow and board building materials. Thus the UX is the correct choice for unknown base materials.
The UX's angled connection ridges allow for optimum screw guidance. Serrated anti-rotation locks prevent rotation in the drill hole. This guarantees the greatest possible installation safety.

The fischer universal fixing UX is a plastic fixing made of high-quality nylon. The fischer universal fixing expands in solid building materials and knots in hollow building materials for maximum hold. For this reason the fischer UX is always the correct choice - even with unknown building materials. The edge prevents slippage during assembly.

Applications

Wall cabinets
Mirror cabinets
Wash basin fixings
Plumbing and heating fixings

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Aerated concrete
Chipboard
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the approval document.

Functionality

The UX without rim is suitable for push-through installation, the UX with rim for pre-positioned installation.
Turning in the screw causes the UX to expand in the solid building material and to knot within the cavity.
The required screw length is given by the plug length + fixture thickness + 1 x screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of board building materials, the threadless part of the screw must not be longer than the fixture, and the UX with rim is to be used.
The edge distance must be at least one plug length.

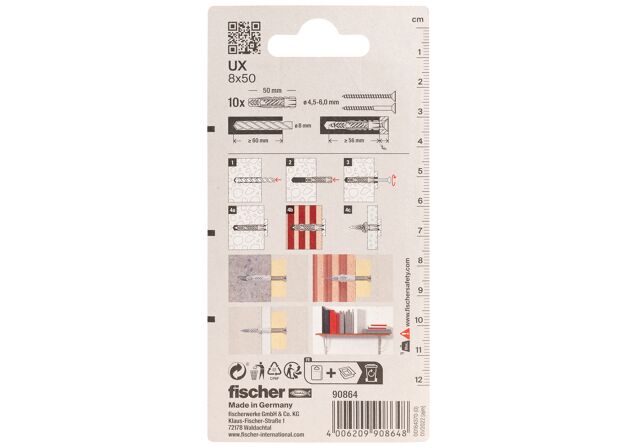

Installation UX

1 / 6

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	60 mm
Min. panel thickness ( d_p )	12,5 mm
Anchor length ( l )	50 mm
Wood and chipboard screws ( d_s )	5.0 - 6.0 mm

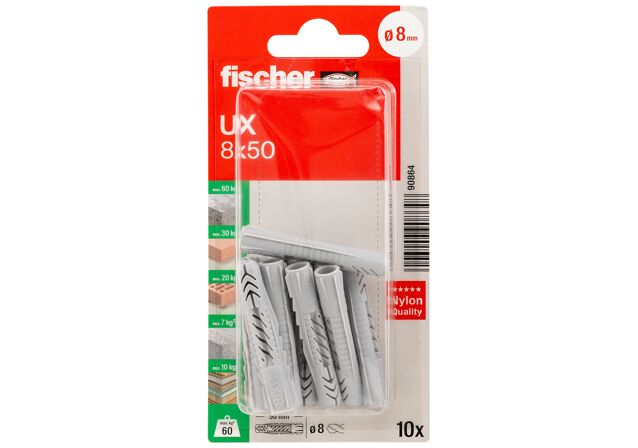

Contents	10 x Universal plug UX 8 x 50
Amount	10 pcs
Packaging	Blister card
GTIN (EAN-Code)	4006209908648
