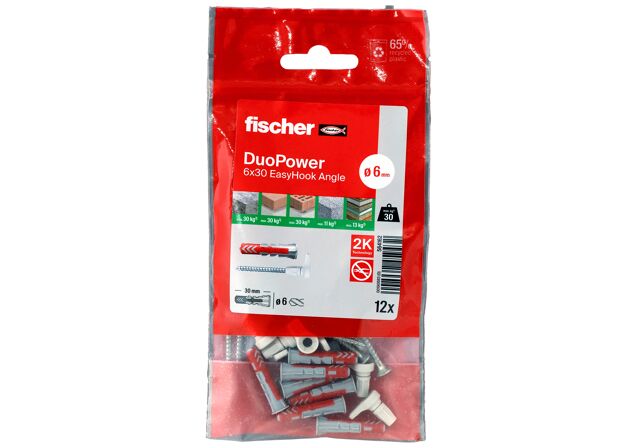

fischer EasyHook Angle DuoPower 6 x 30 PB NV

Name: fischer EasyHook Angle DuoPower 6 x 30 PB NV
Brand: fischer

Varianti del prodotto

Download of image data

Top Features

Quick and easy installation using a cordless screwdriver.
Application in different substrates.
Predetermined breaking point enables optimum positioning of the hook.
Variable distance mounting to the wall possible.
High load level due to the glass fibre reinforced plastic.

Turn screws into angle hooks.

Advantages

The attachable hook is installed quickly and easily using a cordless screwdriver.
Due to the predetermined breaking point, the hook can be positioned optimally.
The EasyHook can be installed at different distances from the wall depending on the screw-in depth.
The glass-fibre reinforced plastic ensures a high load level and secure hold.
The use of the cover ring and cap ensures a visually appealing design of the EasyHook Round and Loop.
The EasyHook can be used with the DuoPower, the DuoBlade or without plugs in wood, covering a wide range of substrates

The innovative EasyHook Angle turns screws into angled hooks of various sizes. The hook adapter is attached to the countersunk screw and installed quickly and securely with the DuoPower. Thanks to to the glass-fibre reinforced plastic, the angled hook covers high loads and ensures a secure hold. Due to the predetermined breaking point, the hook is optimally positioned and can be installed with variable wall distances. If required, the EasyHook Angle can be quickly and easily removed using a cordless screwdriver.

Applications

Pictures
Light shelves
Decorative items
Ceiling lights
Light cabinets
Mirrors
Letter boxes
Chains

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Gypsum plasterboard and gypsum fibreboards
Hollow blocks made from lightweight concrete
Natural stone
Wood

Maggiori informazioni su materiali di supporto, ecc. sono disponibili nella documentazione tecnica.

Functionality

For easier installation in wood, the shaft area of the eye and round hook can be broken off.
The screw is inserted through the EasyHook and screwed in with a cordless screwdriver without holding the hook.
By turning the hook to the left, it is released at the predetermined breaking point. This allows the EasyHook to be aligned and tightened as required.
Depending on the depth of the screw, the distance to the wall can be adjusted.
The cover cap of the EasyHook Round and Loop is placed on the screw head from behind.
If needed, the hook can be easily removed with a cordless screwdriver or screwdriver.

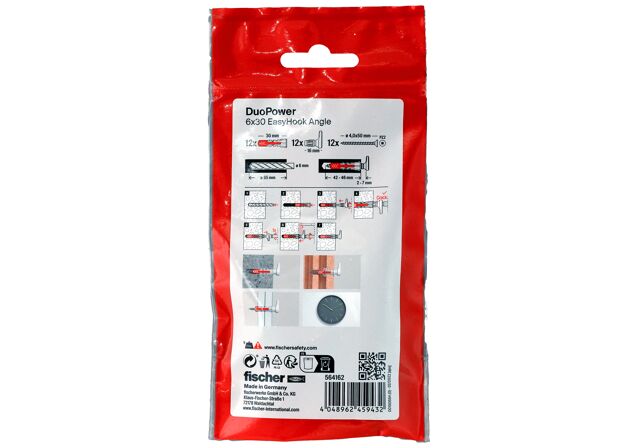

Installation EasyHook Angle

1 / 7

Installation EasyHook Round & Loop

1 / 8

Drill diameter ( d₀ )	6 mm
Min. drill hole depth ( h₁ )	40 mm
Min. panel thickness ( d_p )	12,5 mm
Min. bolt penetration ( l_E,min )	35 mm
Anchor length ( l )	30 mm
Screw dimension ( d_s x l_s )	4.0 x 50 mm
Drive	PZ2
Wall distance ( t_fix )	4.0 - 9.0 mm
Contents	12 x DuoPower 6 x 30 12 x Screw 4.0 x 50 12 x EasyHook Angle
Amount	12 pcs
Packaging	Polybag
GTIN (EAN-Code)	4048962459432
