Pi-shaped wall holder with fixing points on both sides.

Wall holders FPH AL

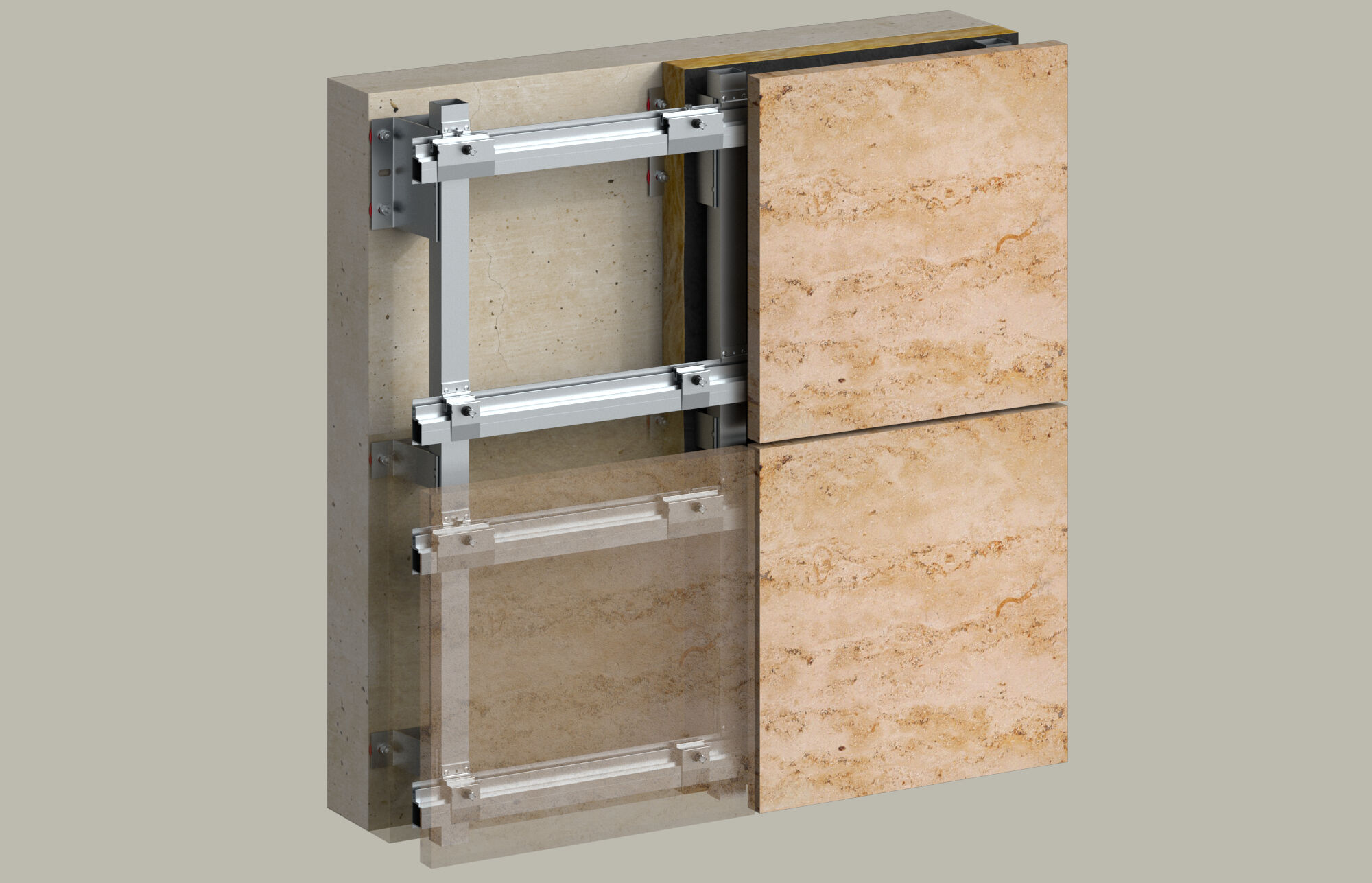

This system allows the user to compensate the tolerance of the substrate. Wall holders and vertical profiles are attached using connectors (such as blind rivets). The wall holders are attached to the substrate using steel anchors or frame anchors.

Product Variant

Download of image data

Product Variant

10 Varianti del prodotto

Length

Width

Height

Thickness

Dimensions

Visualizzate 10 di 10 varianti

Advantages

The Pi-shaped geometry of the wall holder ensures optimised load transfer.
The combination of wall holder and vertical profile ensures optimum compensation of tolerances in the building substrate.
Compatible with all common fixings and connectors (e.g. fischer frame fixings and steel anchors).
The predesigned hole pattern allows for quick and easy installation.
The long projection lengths form the basis for large wall constructions and ensure flexible use.

Properties

Aluminium (e. g. EN AW 6063, 6061)

Length ( L )	30 mm
Width ( W )	140 mm
Width ( W₂ )	50 mm
Height ( H )	180 mm
Thickness ( T )	2,5 mm
Dimensions ( d )	11x25 mm
Hole pattern	6x 11x25 mm
Hole pattern profile	10x 5.1 mm
Angle	90 °
System	—
Amount	40 pcs
GTIN (EAN-Code)	4006209184424
BWM	18442

Length ( L )	30 mm
Width ( W )	140 mm
Width ( W₂ )	50 mm
Height ( H )	60 mm
Thickness ( T )	2,5 mm
Dimensions ( d )	11x25 mm
Hole pattern	2x 11x25 mm
Hole pattern profile	2x 5.1x15 mm
Angle	90 °
System	—
Amount	100 pcs
GTIN (EAN-Code)	4006209184431
BWM	18443

Length ( L )	54 mm
Width ( W )	160 mm
Width ( W₂ )	50 mm
Height ( H )	180 mm
Thickness ( T )	3 mm
Dimensions ( d )	11x25 mm
Hole pattern	6x 11x25 mm
Hole pattern profile	10x 5.1 mm
Angle	90 °
System	—
Amount	40 pcs
GTIN (EAN-Code)	4006209184448
BWM	18444

Length ( L )	54 mm
Width ( W )	160 mm
Width ( W₂ )	50 mm
Height ( H )	60 mm
Thickness ( T )	3 mm
Dimensions ( d )	11x25 mm
Hole pattern	2x 11x25 mm
Hole pattern profile	2x 5.1x15 mm
Angle	90 °
System	—
Amount	100 pcs
GTIN (EAN-Code)	4006209184455
BWM	18445

Length ( L )	68 mm
Width ( W )	160 mm
Width ( W₂ )	50 mm
Height ( H )	180 mm
Thickness ( T )	3 mm
Dimensions ( d )	11x25 mm
Hole pattern	6x 11x25 mm
Hole pattern profile	10x 5.1 mm
Angle	90 °
System	—
Amount	30 pcs
GTIN (EAN-Code)	4006209489000
BWM	48900

Wall holders FPH AL

Product Variant

Your advantages / Product description

Application and approval

Assembly instruction

Length ( L )	93 mm
Width ( W )	160 mm
Width ( W₂ )	50 mm
Height ( H )	60 mm
Thickness ( T )	3 mm
Dimensions ( d )	11x25 mm
Hole pattern	2x 11x25 mm
Hole pattern profile	2x 5.1x15 mm
Angle	90 °
System	—
Amount	75 pcs
GTIN (EAN-Code)	4006209489031
BWM	48903

Length ( L )	133 mm
Width ( W )	160 mm
Width ( W₂ )	50 mm
Height ( H )	180 mm
Thickness ( T )	3 mm
Dimensions ( d )	11x25 mm
Hole pattern	6x 11x25 mm
Hole pattern profile	10x 5.1 mm
Angle	90 °
System	—
Amount	24 pcs
GTIN (EAN-Code)	4006209303672
BWM	30367
