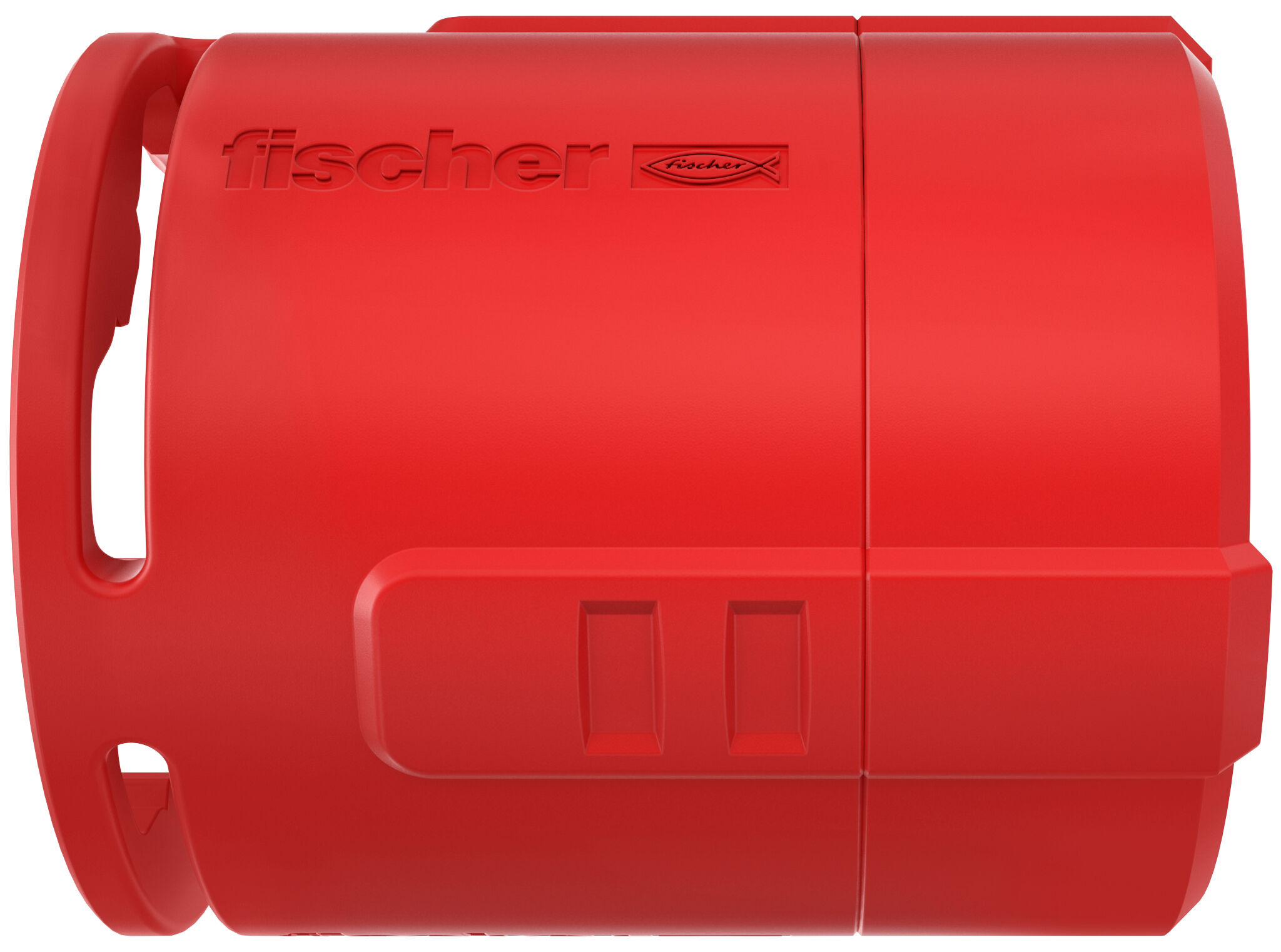

fischer FCM N SensorNode

Name: fischer FCM N SensorNode
Brand: fischer

Product Variant

Download of image data

Top Features

Tool-free quick installation via special developed bayonet lock for secure, durable and easy attachment to sensor-integrated fastening systems.
Reliable remote monitoring through NFC readout and LoRaWAN data transmission with a range of up to 3 km in open field.
Long-term, low-maintenance operation with a battery lifetime of more than 5 years at a transmission interval of every two hours.
Innovative, robust and site-ready design for reliable operation even under demanding environmental conditions.

Digital transmission unit for remote monitoring of sensor-integrated fastening systems.

Advantages

Wireless transmission of sensor data to the cloud enables location-independent and continuous monitoring.
Reliable and secure data communication ensures stable remote monitoring of safety-relevant connections.
Wireless remote monitoring via LoRaWAN technology with a range of up to 3 km in open field to the next gateway.
Long service life due to energy-efficient design with a battery lifetime of more than 5 years at a preset transmission interval of every two hours.
Centralized cloud data storage provides full transparency regarding the condition of structures and anchorages.
Robust housing designed for reliable operation under demanding site conditions.
Reduction of manual inspection efforts through digital data acquisition and automatic availability of measurement values.
Efficient visualization and analysis of measurement data via the fischer Construction Monitoring platform.

The SensorNode is the intelligent transmission unit of the fischer Construction Monitoring system. It collects measurement data from compatible sensor solutions such as SensorBolt or SensorDisc and transmits the data wirelessly to the cloud. The data is stored, visualized and made available for further analysis. With continuous transmission, the SensorNode enables location-independent monitoring of safety-relevant connections and structures. The SensorNode provides maximum transparency, increased operational safety and efficient structural health monitoring.

Properties

Communication technology: NFC (sensor readout) and LoRaWAN (data transmission)
LoRaWAN range: up to 3 km in open field
Power supply: Battery-operated
Battery lifetime: > 5 years at a measuring interval of 2 hours (indivudally adjustable)
Replaceable, commercially available battery
Secure data transmission to a LoRaWAN gateway with subsequent cloud connection
Robust housing for operation in demanding environments
Dedicated bayonet lock for secure attachment to sensor-integrated fastening systems
Compatible with the fischer Construction Monitoring platform

Applications

Steel construction:

Industrial and commercial halls
Steel lattice towers
Sports stadiums
Amusement rides

Infrastructure:

Energy installations (onshore and offshore)
Road and bridge construction
Railway

Industry:

Crane systems
Process engineering plants
Robotics

Building materials

According to the respective sensor-integrated fastening system used.

You can find detailed information on building materials in the approval document.

Functionality

The SensorNode features a dedicated bayonet lock that allows it to be securely attached to the fastening elements of the fischer Construction Monitoring products, ensuring reliable and durable fixation.
It reads measurement data from the integrated sensors contactlessly via NFC.
The collected data is transmitted via LoRaWAN with a range of up to 3 km in open field to the nearest gateway.
The gateway then forwards the data to the cloud.
Within the fischer Construction Monitoring platform, the data is stored, visualized and documented.
The SensorNode thus enables continuous and traceable condition monitoring of safety-relevant connections and structures.

Show the assembly instruction as pdf file

Installation

1 / 5

Battery replacement

1 / 7

Diameter( d )	32 mm
Height( H )	38,1 mm
Amount	1 pcs
GTIN (EAN-Code)	4048962587883
