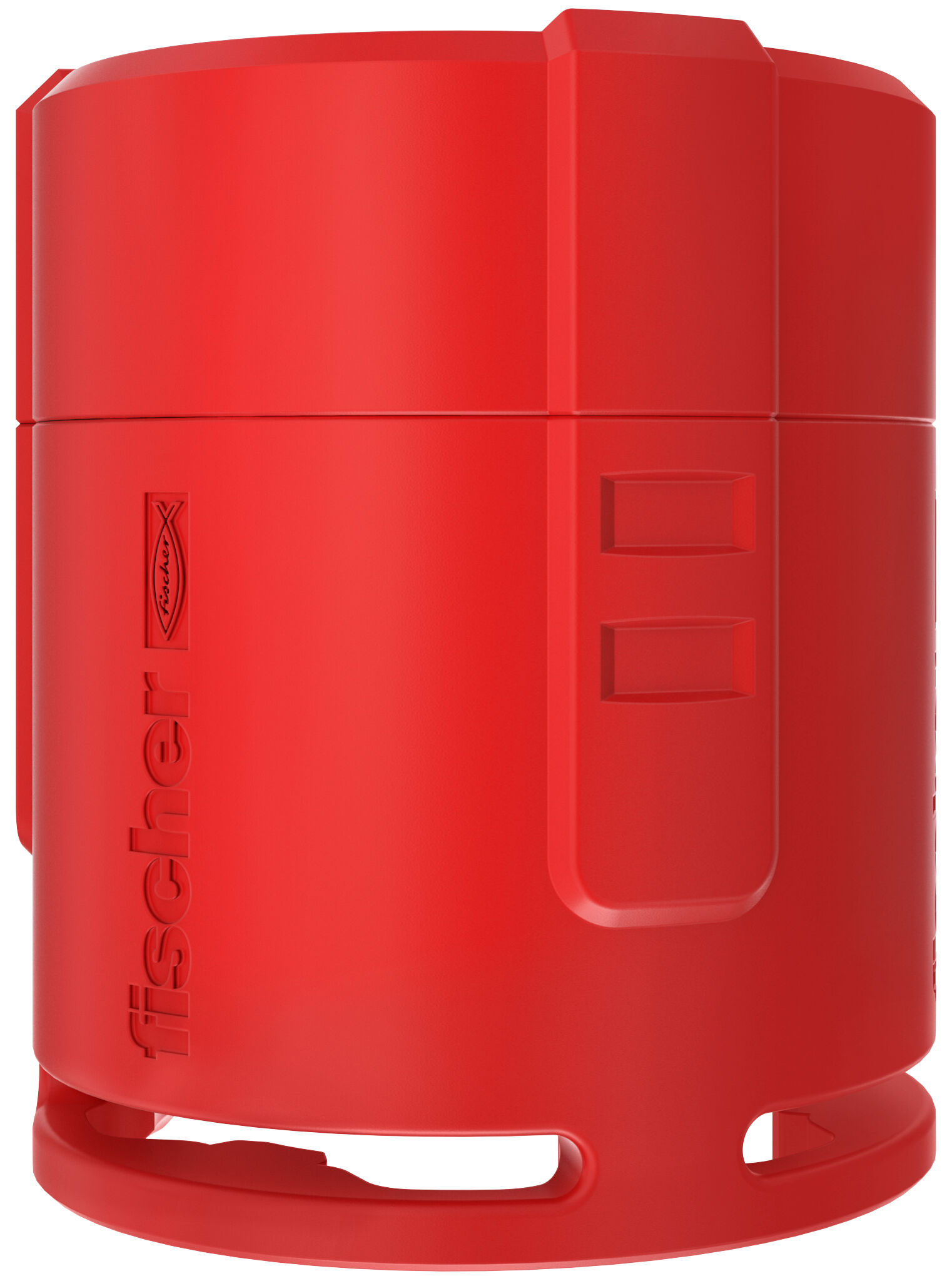

SensorNode FCM-N

Product Variant

1 product variants

Diameter

Height

Amount

GTIN (EAN-Code)

Viewed 1 of 1 variant (s)

Advantages

Wireless transmission of sensor data to the cloud enables location-independent and continuous monitoring.
Reliable and secure data communication ensures stable remote monitoring of safety-relevant connections.
Wireless remote monitoring via LoRaWAN technology with a range of up to 3 km in open field to the next gateway.
Long service life due to energy-efficient design with a battery lifetime of more than 5 years at a preset transmission interval of every two hours.
Centralized cloud data storage provides full transparency regarding the condition of structures and anchorages.
Robust housing designed for reliable operation under demanding site conditions.
Reduction of manual inspection efforts through digital data acquisition and automatic availability of measurement values.
Efficient visualization and analysis of measurement data via the fischer Construction Monitoring platform.

Properties

Communication technology: NFC (sensor readout) and LoRaWAN (data transmission)
LoRaWAN range: up to 3 km in open field
Power supply: Battery-operated
Battery lifetime: > 5 years at a measuring interval of 2 hours (indivudally adjustable)
Replaceable, commercially available battery
Secure data transmission to a LoRaWAN gateway with subsequent cloud connection
Robust housing for operation in demanding environments
Dedicated bayonet lock for secure attachment to sensor-integrated fastening systems
Compatible with the fischer Construction Monitoring platform

Applications

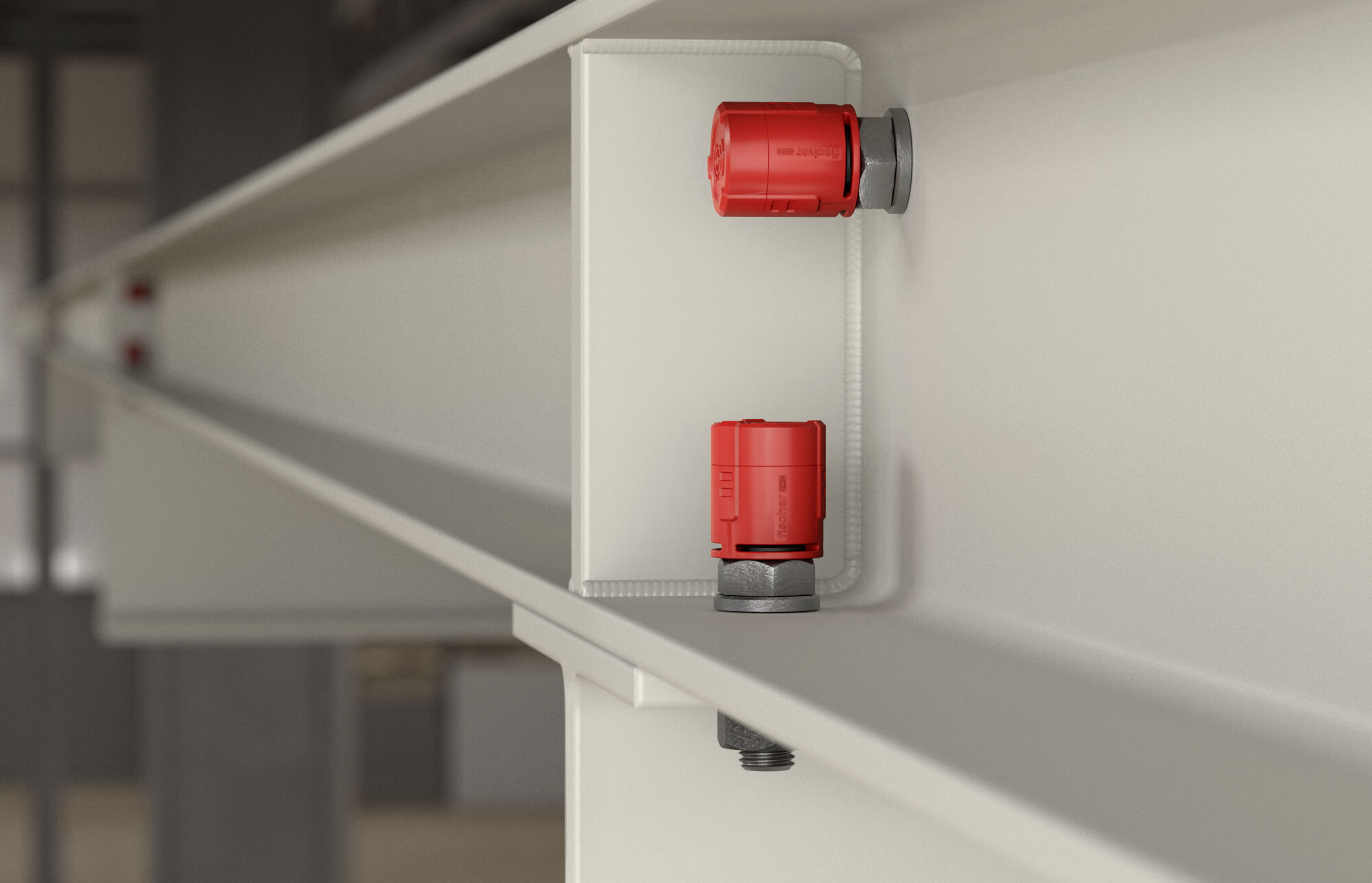

Steel construction:

Infrastructure:

Industry:

Building materials

You can find detailed information on building materials in the approval document.

Functionality

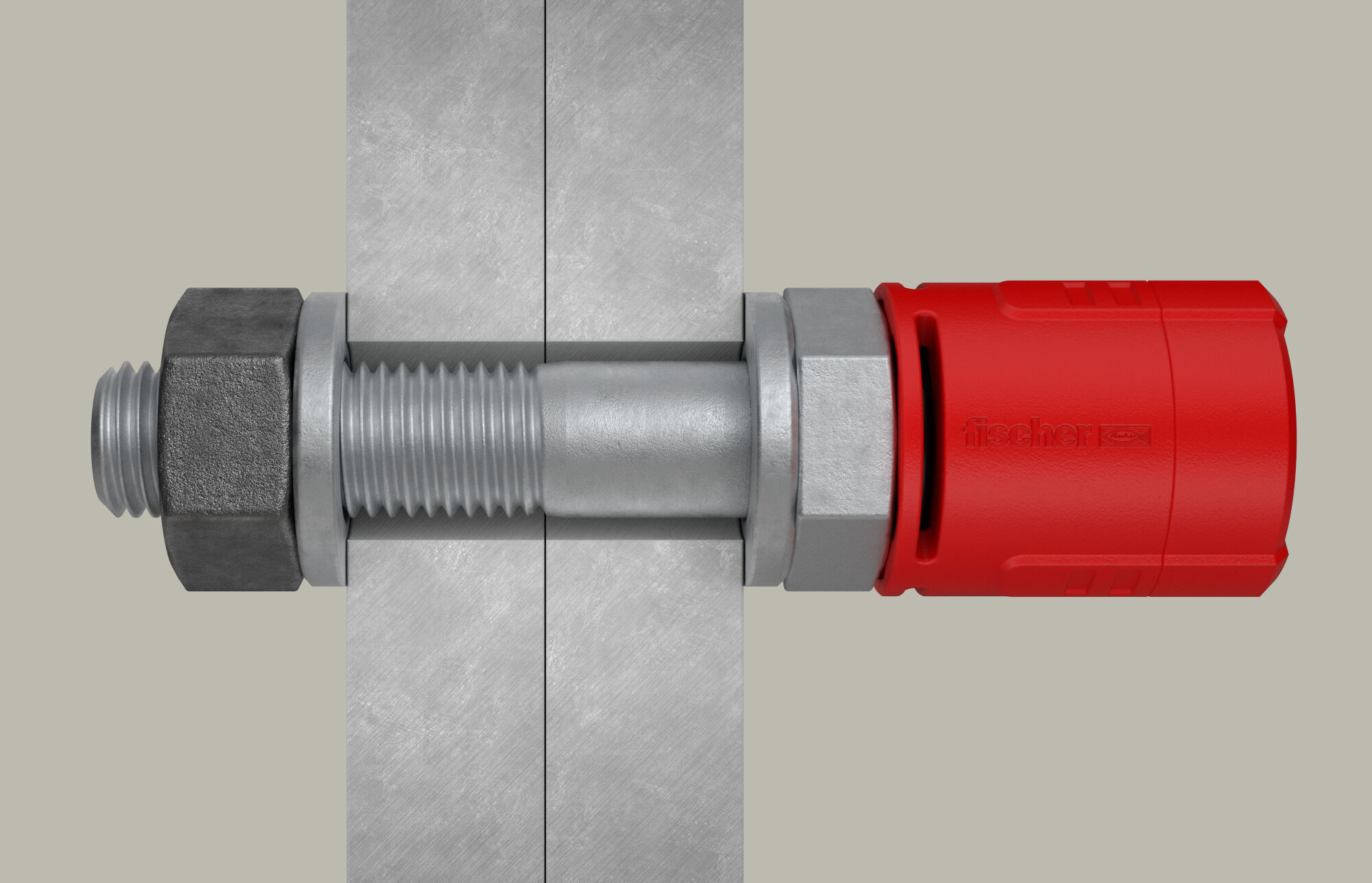

The SensorNode features a dedicated bayonet lock that allows it to be securely attached to the fastening elements of the fischer Construction Monitoring products, ensuring reliable and durable fixation.
It reads measurement data from the integrated sensors contactlessly via NFC.
The collected data is transmitted via LoRaWAN with a range of up to 3 km in open field to the nearest gateway.
The gateway then forwards the data to the cloud.
Within the fischer Construction Monitoring platform, the data is stored, visualized and documented.
The SensorNode thus enables continuous and traceable condition monitoring of safety-relevant connections and structures.

Installation

1 / 5

Battery replacement

1 / 7
