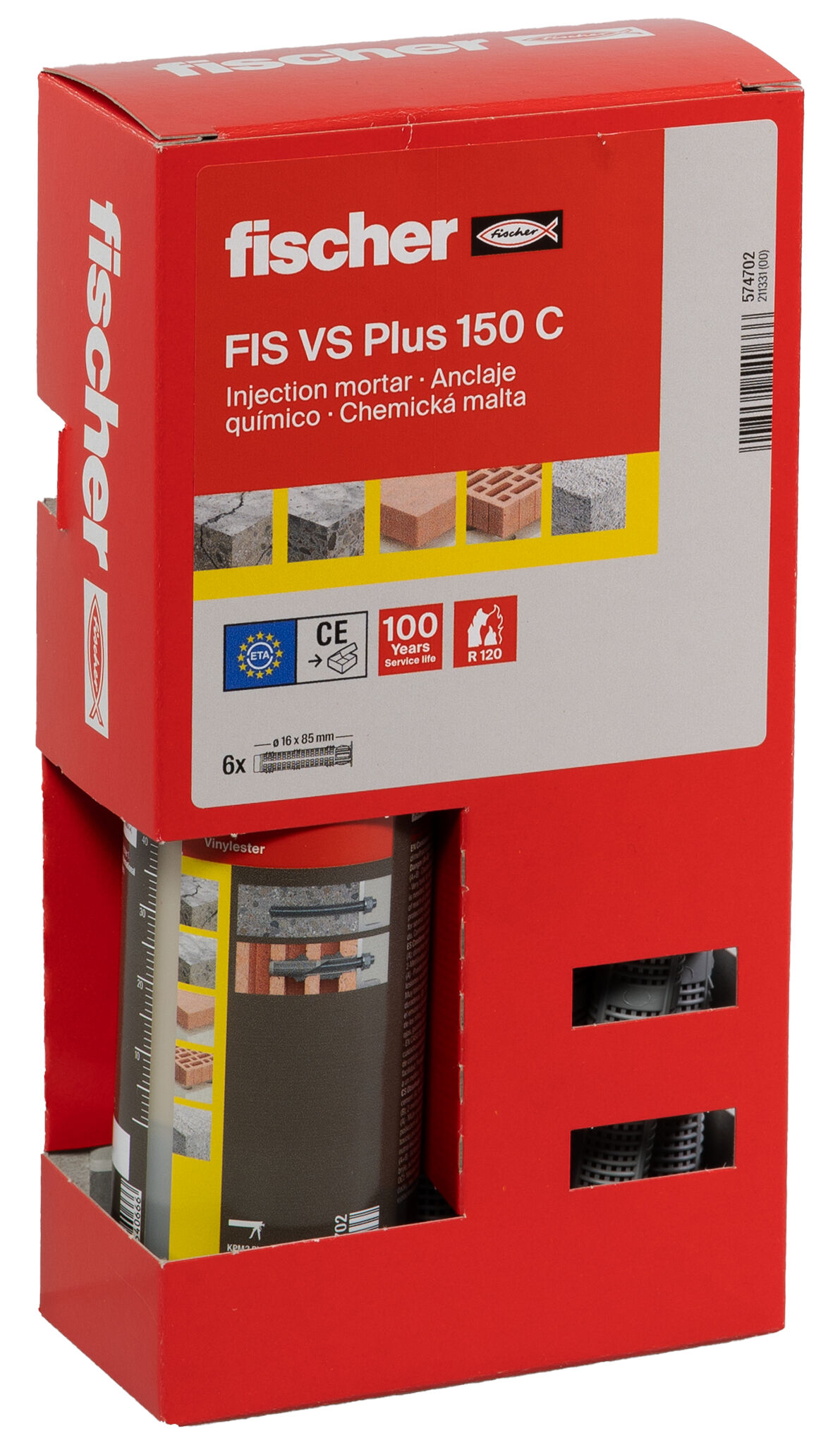

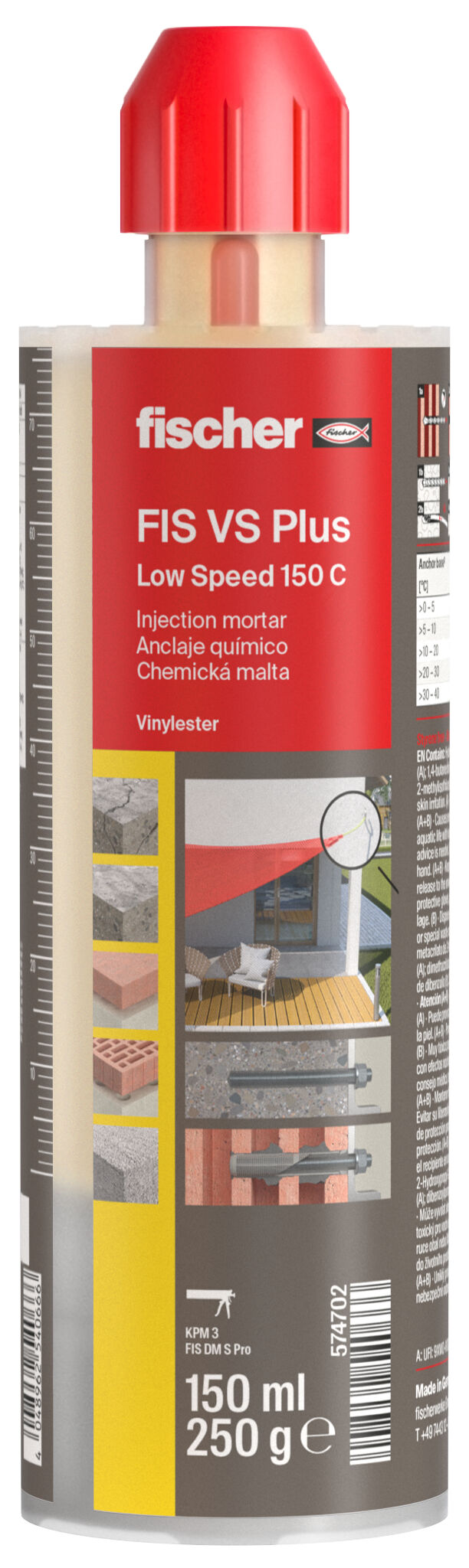

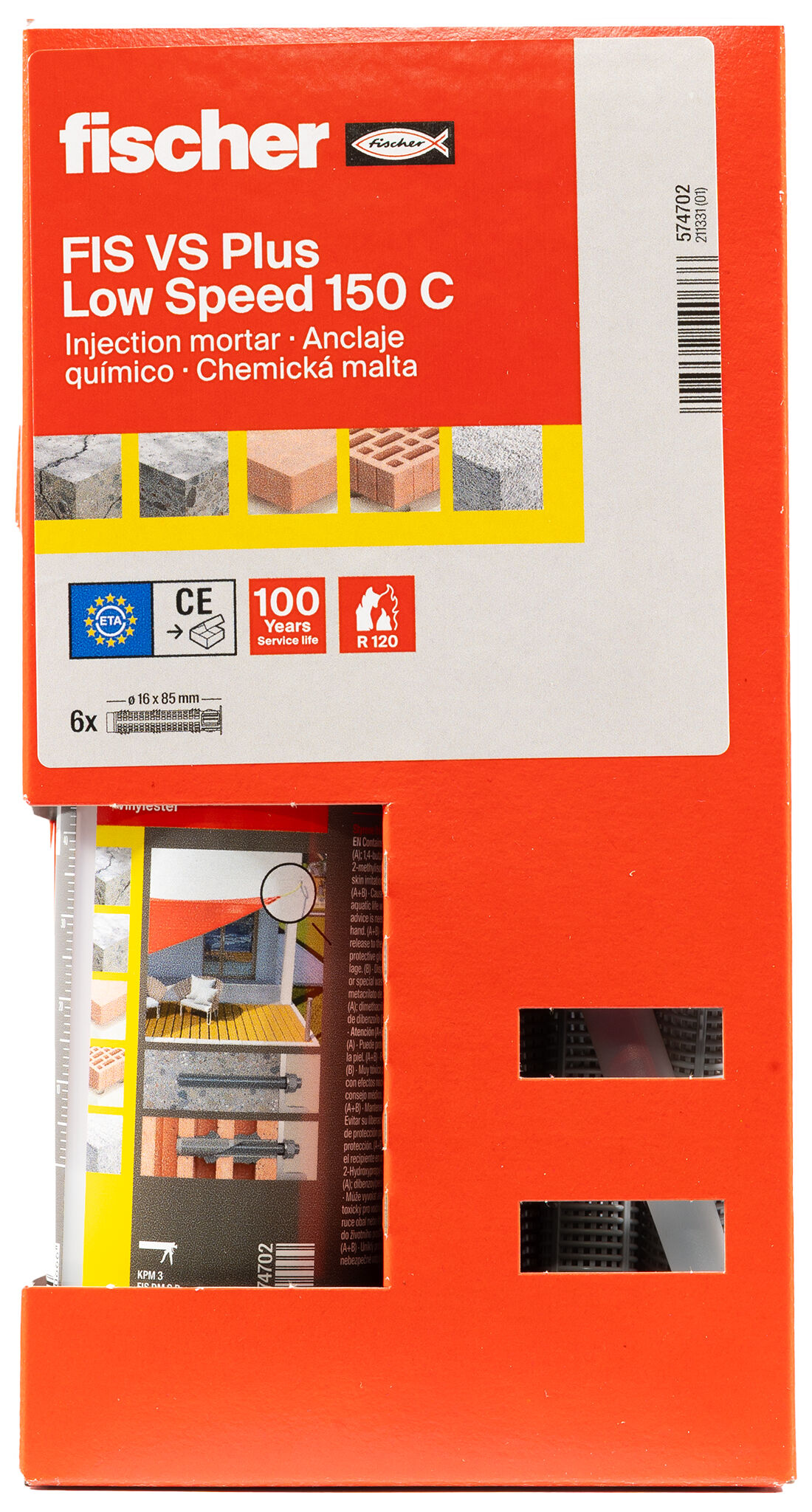

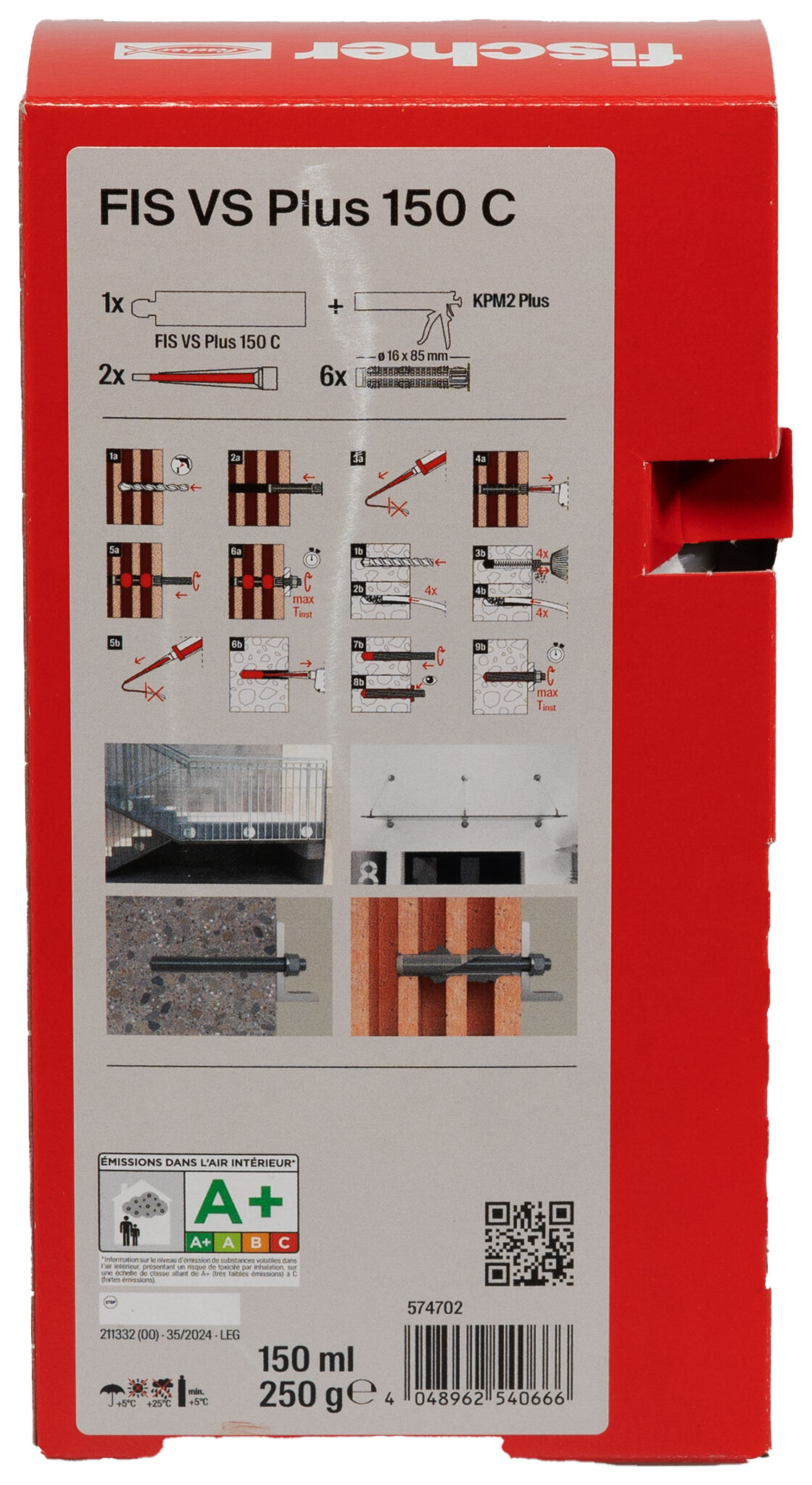

fischer Injection mortar FIS VS Plus 150 C Set

Name: fischer Injection mortar FIS VS Plus 150 C Set
Brand: fischer

Varianti del prodotto

Download of image data

Top Features

Extended open time prevents premature curing.
Various system approvals available.
Extensive range of system accessories.
Universal injection mortar with guaranteed safety for many applications.

The powerful universal mortar for concrete and masonry.

Advantages

The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. 
The injection mortar FIS VS Plus Low Speed has a range of system approvals, for cracked and non-cracked concrete, masonry, and rebar connections, for example. FIS VS Plus Low Speed is therefore the universal injection mortar with guaranteed safety for almost every application.
The extensive range of accessories is perfectly tailored to the injection mortar FIS VS Plus Low Speed, increases the high flexibility of the system, and thus enables a broad range of applications.

The fischer injection mortar FIS VS Plus Low Speed is a 2-component injection mortar based on vinyl ester hybrid with an extended processing time. This prevents premature curing even during summer temperatures. The FIS VS Plus Low Speed is approved for a variety of systems and offers guaranteed security for almost any application. A comprehensive, co-ordinated range of accessories enhances the flexibility of the FIS VS Plus Low Speed.

Applications

Steelwork constructions
Timber constructions
Guard rails
Façades
Staircases
Steel brackets
Machines
Masts
Awnings
Canopies
Gates
Consoles
Pipelines
Gratings
Satellite antennas

Building materials

Approved for anchorings in:

Concrete C20/25 to C50/60, cracked and non-cracked
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid brick

Approved for:

Rebar connections
Remedial wall tie VBS 8
Weather facing reconstruction system FWS II
Stand-off installation TherMax

Maggiori informazioni su materiali di supporto, ecc. sono disponibili nella documentazione tecnica.

Certificazioni

ETA-20/0603
ETA-20/0729
DoP No. 0231
DoP No. 0381
EPD-Kiwa-EE-000431-EN

Functionality

FIS VS Plus is a 2-component injection mortar based on a vinyl ester hybrid concept.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
The mortar is extruded bubble free from the drill hole base.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
The injection cartridges are quick and easy to use with the fischer dispensers.
Partially used cartridges can be reused by changing the static mixer.

Visualizza le istruzioni di assemblaggio come PDF

Installation in concrete with FIS V Plus and FIS A / RG M

1 / 9

Installation in concrete with FIS V Plus and RG M I

1 / 9

Installation in solid brick with FIS V Plus and FIS A

1 / 7

Installation in hollow blocks with FIS V Plus and FIS HK + FIS A

1 / 5

Installation in aerated concrete with FIS V Plus and FIS A / RG M

1 / 7

Installation in undercut drill hole in aerated concrete with FIS V Plus and FIS A / RG M

1 / 6

ETA Certification Document

pdf, ETA-20/0603

European Technical Assessment for Injection System fischer FIS V Plus - Bonded anchor for use in concrete

Creato il 11/13/2020

DOP - Declaration of Performance

pdf, DoP No. 0231

Declaration of Performance for fischer injection system FIS V Plus (Bonded fastener for use in concrete)

Creato il 11/27/2020

ETA Certification Document

pdf, ETA-20/0729

European Technical Assessment for injection System fischer FIS V Plus for masonry - Metal injection anchors for use in masonry

Creato il 02/03/2025

DOP - Declaration of Performance

pdf, DoP No. 0381

Declaration of Performance for fischer injection system FIS V Plus (Metal injection anchors for use in masonry)

Creato il 02/17/2025

ETA-approval
Language on label	EN, ES, CS
Scale unit	75
Contents	1 x Cartridge 150 ml 2 x Static mixer FIS MR Plus 6 x Injection anchor sleeve FIS H 16 x 85 K
Amount	1 pcs
GTIN (EAN-Code)	4048962540666
