fischer Heavy-duty anchor TA M12 S25 K NV

Name: fischer Heavy-duty anchor TA M12 S25 K NV
Brand: fischer

Varianti del prodotto

Download of image data

Top Features

Simple assembly due to low setting energy.
Low axial and edge distances due to uniform load introduction.
Surface flush installation due to detachable screw connections.
ETA approval for non-cracked concrete.

The installation-friendly internal thread anchor with screw for fixings in non-cracked concrete.

Advantages

The optimised geometry minimises setting energy and allows for use in extremely narrow spaces. This allows for user-friendly installation.
The three-part expansion sleeve creates even load distribution, thus allowing small edge and axial spacing. Thus the TA M is extremely flexible.
The metric internal thread allows to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
The red plastic cap protects against soiling and thus ensures free-running of the thread.

The fischer heavy-duty anchor TA M-S is an internal threaded anchor for pre-positioned installation made of zinc-plated steel. During installation the cone is pulled into the expansion sleeve and expands it against the hole wall. The plastic cover protects the thread from dirt. This ensures that it remains functional. The heavy-duty anchor is ideal for fixing fall protection devices, systems, and machines in non-cracked concrete.

ETA-approval
Drill diameter ( d₀ )	18 mm
Width across nut	19 mm

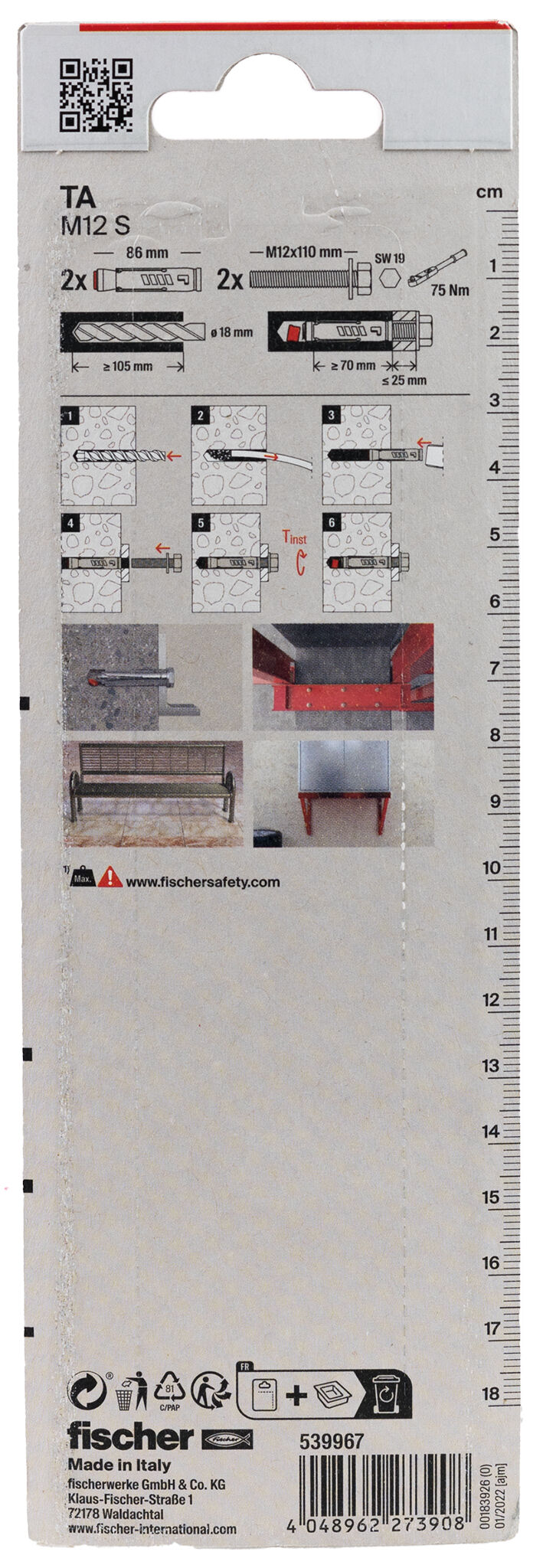

Packaging	Blister card
Amount	2 pcs
GTIN (EAN-Code)	4048962273908

fischer Heavy-duty anchor TA M12 S25 K NV

Vantaggi / descrizione del prodotto

Applicazioni e Certificazioni

Istruzioni di montaggio

Dati tecnici

Documenti da scaricare
