Art.-No. 567289

GTIN (EAN-Code): 4048962477245

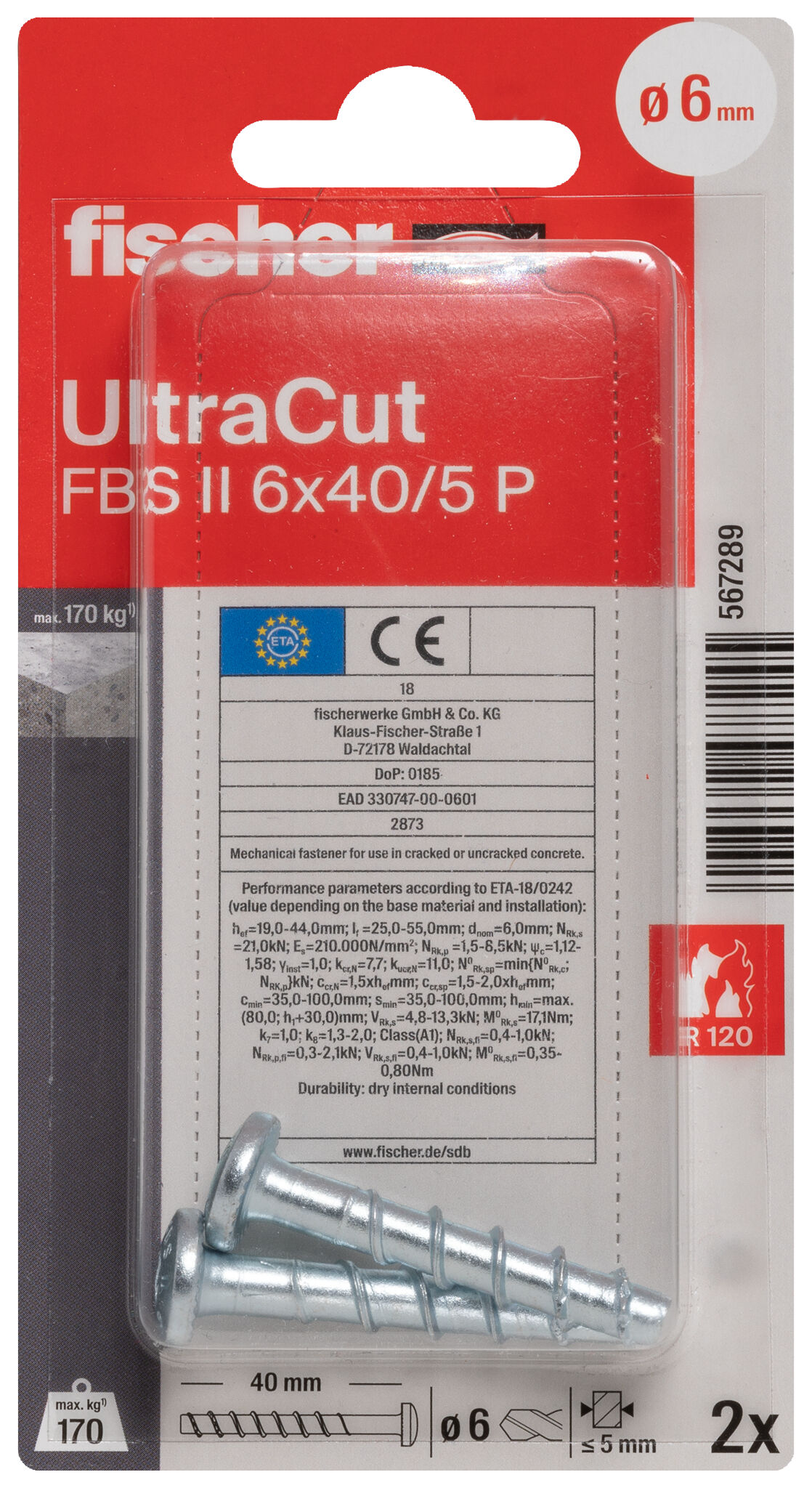

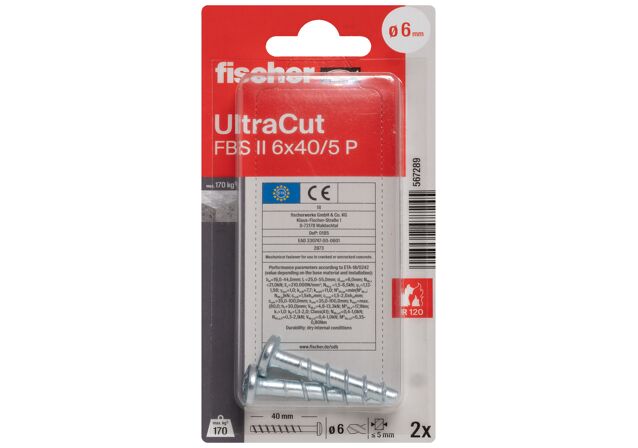

fischer concrete screw UltraCut FBS II 6 x 40/5 P pan head

Name: fischer concrete screw UltraCut FBS II 6 x 40/5 P pan head
Brand: fischer

Product Variant

Download of image data

Top Features

The first concrete screw with diameter 6 and variable embedment depths enables high flexibility and a precise adaption on the loads.
The ETA assessment option 1 includes the use in cracked and non-cracked concrete for highest safety requirements.
The first 6 mm diameter concrete screw with an ETA assessment for the C1 seismic performance category for additional safety standards.
The fischer concrete screws FBS II 6-10 offer the innovative possibility for the ETA compliant application in masonry. This grants high security not only in concrete but also in many other applications in other substrates.

The high-performance concrete screw for absolute installation ease.

Advantages

The first concrete screw with diameter 6 and variable embedment depths enables high flexibility and a precise adaption on the loads.
The ETA assessment option 1 includes the use in cracked and non-cracked concrete for highest safety requirements.
The first 6 mm diameter concrete screw with an ETA assessment for the C1 seismic performance category for additional safety standards.
The UltraCut FBS II 6 is approved for multiple use of non-load bearing systems and thereby ideal for the installation of pipe routes, cable trays and prestressed hollow concrete ceilings.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
Different head designs offer a maximum of flexibility and a perfect adaptation to the application.
The design of the concrete screw with panhead and large panhead allows for a visually aesthetic installation.
The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.
The concrete screw UltraCut FBS II 6 offers the possibility for use in masonry (solid building material).
The concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel CP and stainless steel R has an ETA for bricks of clay (EN771-1), solid sand-lime brick (EN771-2) and perforated sand-lime brick (EN771-2) for a flexible use in different substrates.
The installation of the concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel and stainless steel R in masonry brick can be made in the joints or in plastered substrates also in groups.

The fischer concrete screw UltraCut FBS II 6 P is made of zinc-plated steel with panhead. The UltraCut FBS II 6 P is perfectly designed for applications like fixings of pipe routes, channel systems, ventilation ducts and facilities in the building service engineering. When the concrete screw is screwed into the drill hole using an impact driver, the thread flanks cut deep into the concrete, thus ensuring top load-bearing capacity. The low drilling effort saves time in the case of multiple fixations. The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety.

Applications

Pipeline routes
Suspension for individual pipes
Suspended mounting rails
Prestressed concrete hollow core ceilings
Cable trays
Ventilation ducts
Perforated tapes

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Prestressed hollow concrete ceilings C30/37 to C50/60 for the multiple use of non-load bearing systems
Bricks of clay (EN771-1)
Solid sand-lime brick (EN771-2)
Perforated sand-lime brick (EN771-2)

Suitable for:

Concrete C12/15
Masonry with a dense structure
Solid building materials

You can find detailed information on building materials in the approval document.

Approval

ETA-15/0352
ETA-18/0242
ETA-20/0134
DoP No. 0185
DoP No. 0227
DoP No. 0311

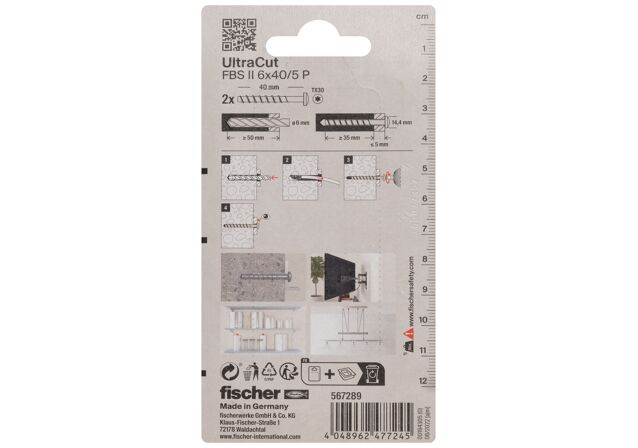

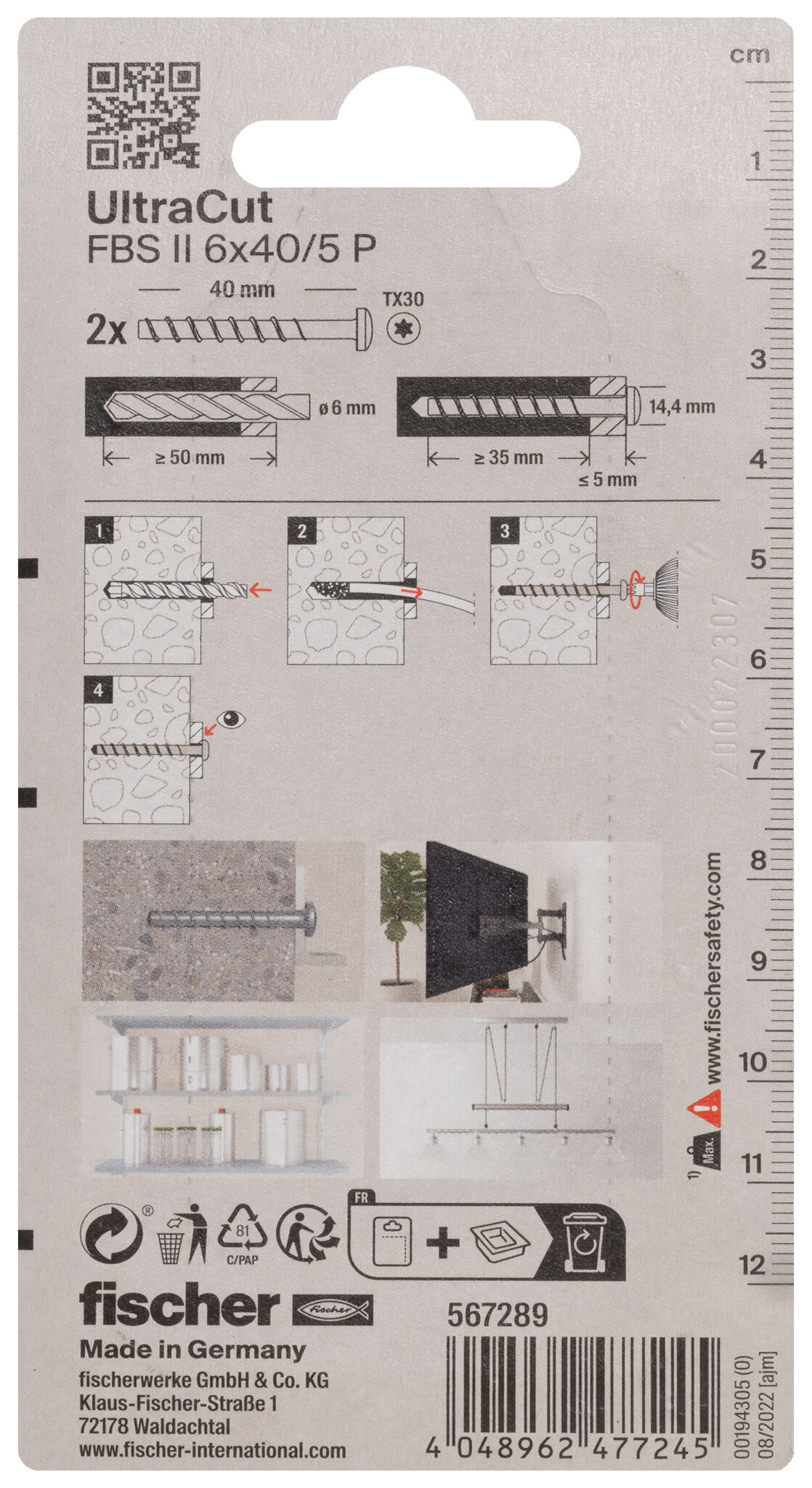

Functionality

The UltraCut FBS II 6 is recommended for the push-through and pre-positioned installation.
We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).

Show the assembly instruction as pdf file

1 / 6

Fixture adjustment

1 / 3

Additional for seismic applications

1 / 2

ETA Certification Document

pdf, ETA-15/0352

European Technical Assessment for fischer concrete screw ULTRACUT FBS II - Mechanical fasteners for use in concrete

Created on 10/05/2020

DOP - Declaration of Performance

pdf, DoP No. 0227

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical anchor for use in concrete)

Created on 10/19/2020

ETA Certification Document

pdf, ETA-18/0242

European Technical Assessment for fischer concrete screw ULTRACUT FBS II - Fasteners for use in concrete for redundant non-structural systems

Created on 11/13/2020

DOP - Declaration of Performance

pdf, DoP No. 0185

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical fastener for use in concrete)

Created on 11/27/2020

ETA Certification Document

pdf, ETA-20/0134

European Technical Assessment for fischer concrete screw UltraCut FBS II - Screw anchor for use in masonry

Created on 07/14/2022

DOP - Declaration of Performance

pdf, DoP No. 0311

Declaration of Performance for fischer concrete screw UltraCut FBS II (screw anchor for use in masonry)

Created on 07/28/2022

ETA-approval
Drill diameter ( d₀ )	6 mm
Screw outer diameter x length ( d_a x L )	7.5 x 40 mm
Length ( L )	40 mm
Min. drill hole depth for through fixings ( h₂ )	50 mm
Screw-in depth ( h_nom,min - h_nom,max )	25 - 35 mm
Usable length ( t_fix,min / t_fix,max )	Screw length - h_nom mm
Drive	TX30
Head-ø ( d_h )	14,4 mm
Contents	2 x UltraCut FBS II 6 x 40/5
Packaging	Blister card
Amount	2 pcs
GTIN (EAN-Code)	4048962477245
