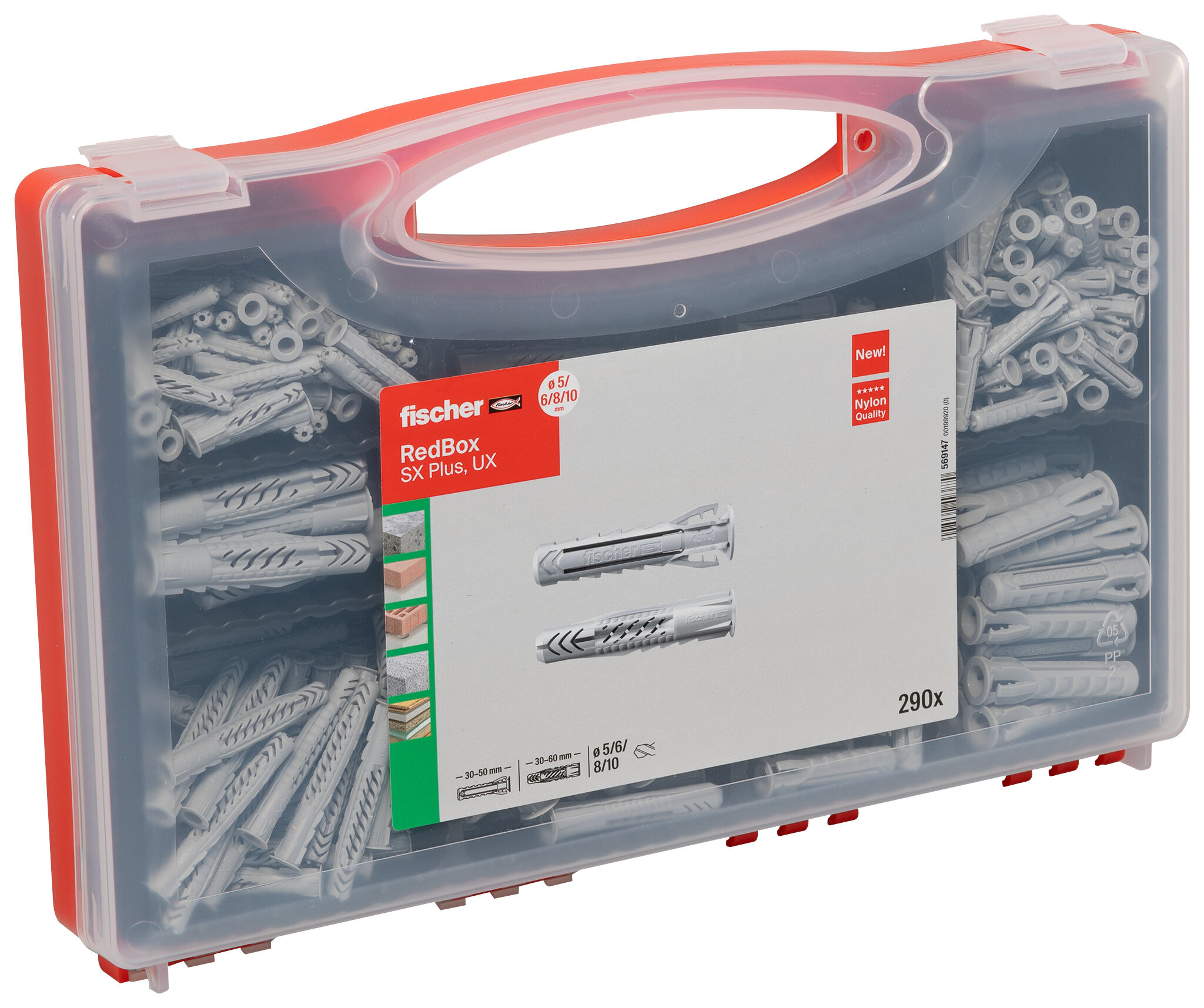

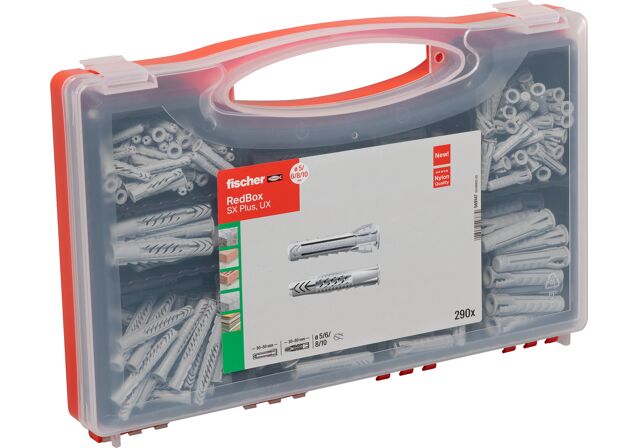

fischer Red-Box SX Plus / UX

Name: fischer Red-Box SX Plus / UX
Brand: fischer

Product Variant

Download of image data

Top Features

No searching: most important diameters are pre-sorted.
Transparent cover: Overview at a glance.
High-quality assortment box for refilling.

The practical assortment box with fischer universal plugs UX and fischer expansion plugs SX Plus.

Advantages

The universal operating principle (knotting or expanding) allows for use in all solid, hollow and board building materials. Thus the UX is the correct choice for unknown base materials.
The UX's angled connection ridges allow for optimum screw guidance. Serrated anti-rotation locks prevent rotation in the drill hole. This guarantees the greatest possible installation safety.
The 4-way expansion ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials.
The special fixing wings ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The special shape of the plug makes it easy to insert into the drill hole with just a few hammer blows.
The pronounced edge of the plug prevents it from slipping deeper into the drill hole and enables secure installation.
Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw.

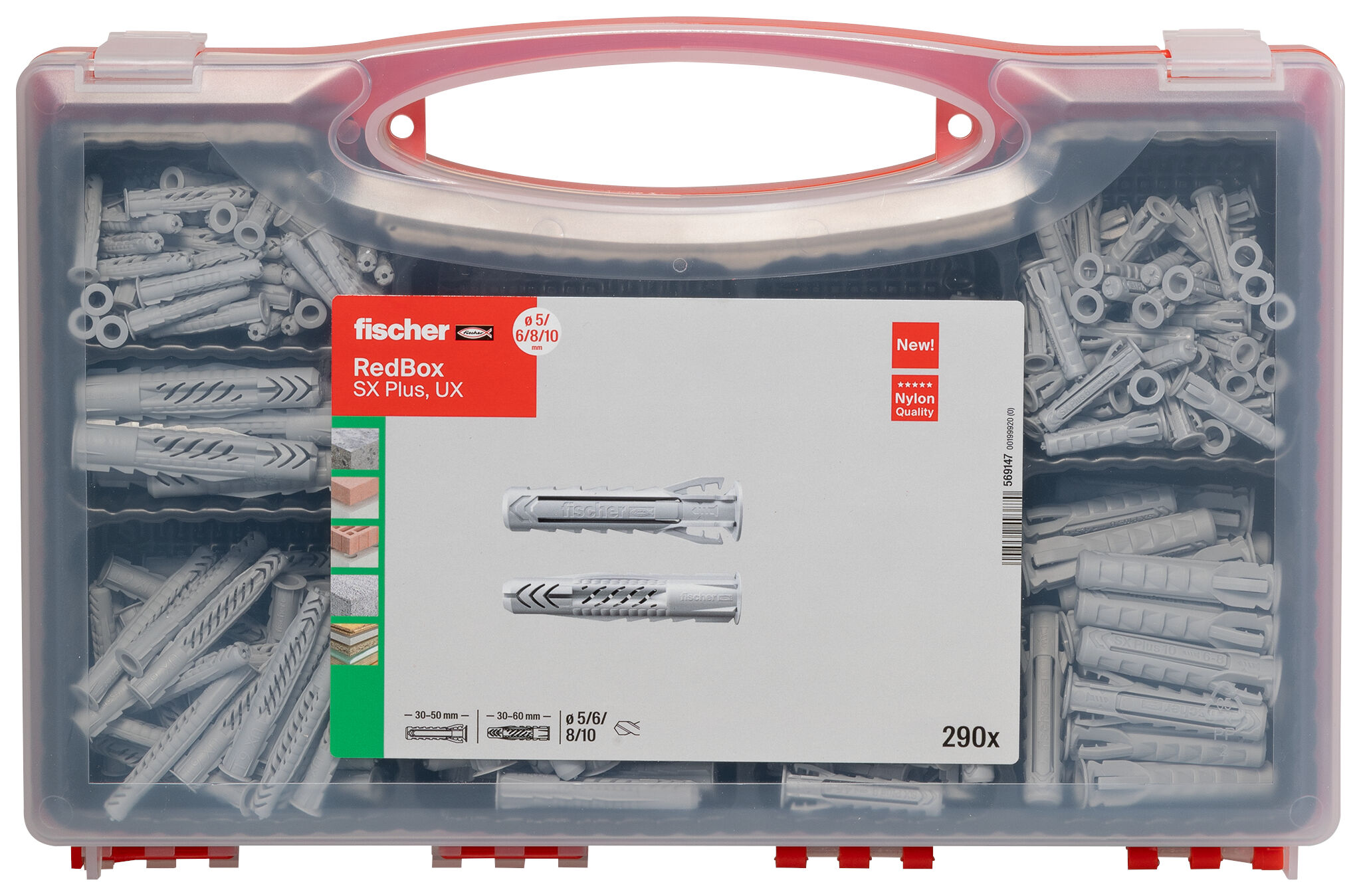

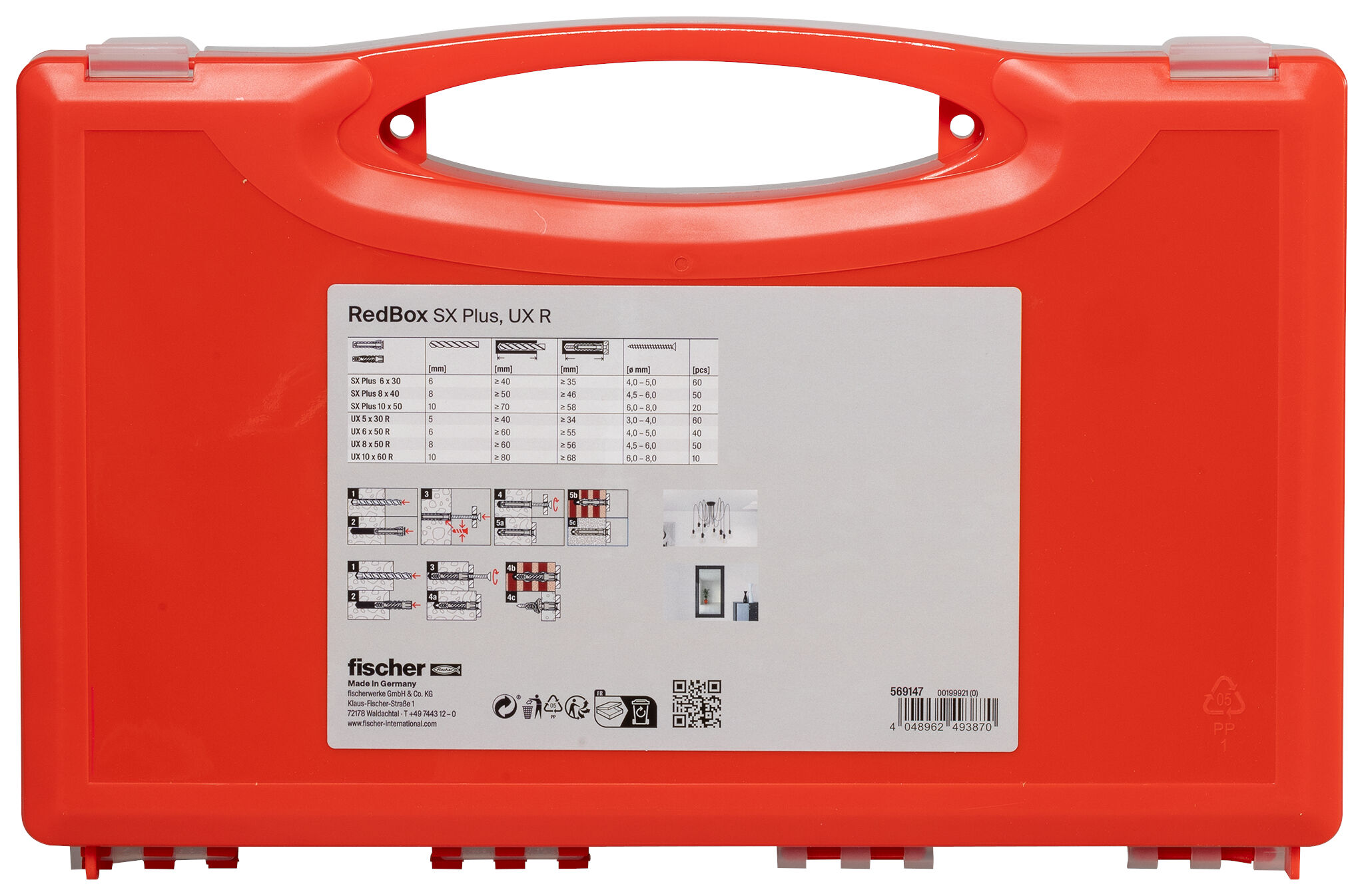

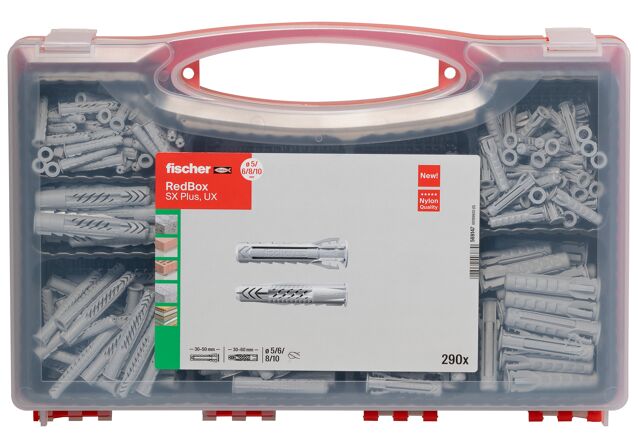

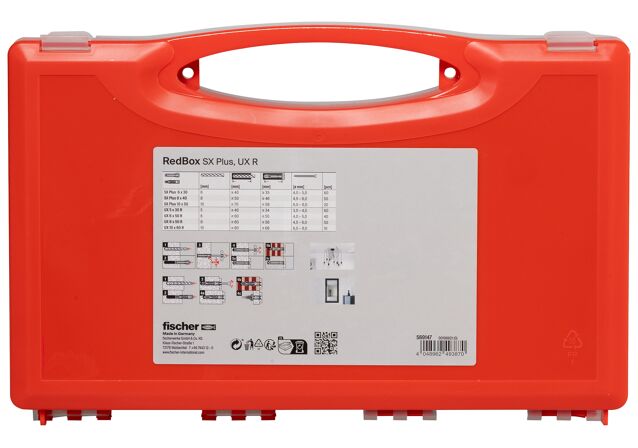

The fischer SX Plus / UX assortment box, which is made of high-quality, impact-resistant plastic, is ideal for workshops and construction sites. The transparent lid gives an overview of the contents at a glance. The assortment box can be securely closed and can also be refilled with plugs.

Applications

Lamps
Wardrobes
Motion detectors
Skirting boards
Light wall shelves
Mirror cabinets
Mailboxes
TV consoles
Trellis
Folding shutters
Fire detector

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Solid stone of leightweight concrete
Hollow block of leightweight concrete
Natural stone
Hollow brick & concrete ceilings
Solid gypsum boards

You can find detailed information on building materials in the approval document.

Functionality

The UX with rim is suitable for pre-positioned installation; the UX without rim is suitable for push-through installation.
Screwing in the screw causes the UX to expand in the solid building material and to knot within the cavity.
The SX Plus is suitable for pre-positioned and push-through installation.
When the plug is inserted, the fixing wings fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
When the screw is tightened, the SX Plus expands in four directions and thus anchors itself securely in the building material.
The anti-rotation lock prevents the plug from twisting and allows for easy installation.
Suitable for wood and chipboard screws, as well as stud screws.
The required screw length is given by the plug length + fixture thickness + the screw diameter.

Contents	60 x Expansion plug SX Plus 6 x 30 50 x Expansion plug SX Plus 8 x 40 20 x Expansion plug SX Plus 10 x 50 60 x Universal plug UX 6 x 35 R 40 x Universal plug UX 6 x 50 R 50 x Universal plug UX 8 x 50 R 10 x Universal plug UX 10 x 60 R
Packaging	Assortment box
Amount	290 pcs
GTIN (EAN-Code)	4048962493870
