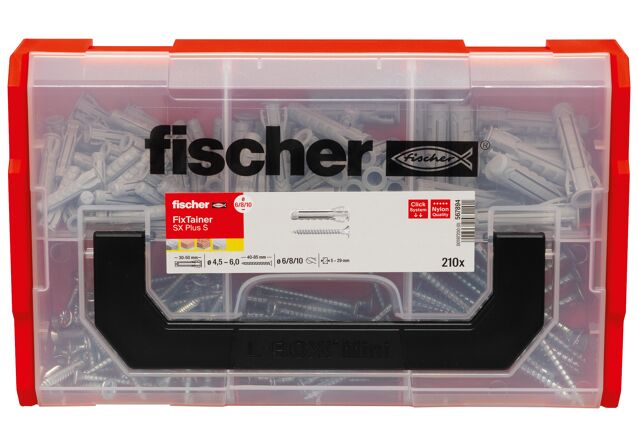

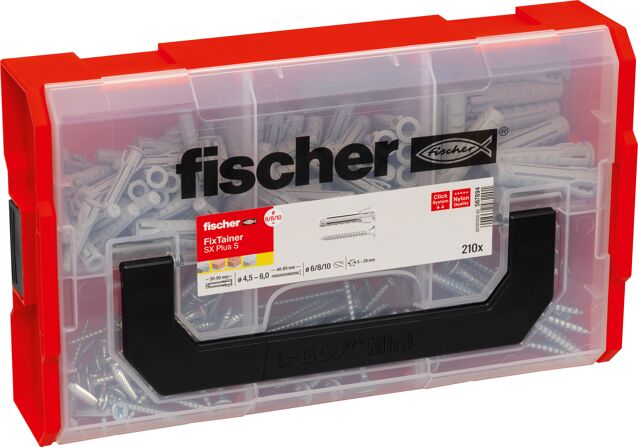

fischer FixTainer - Expansion plug SX Plus 6,8,10 S with screws

Name: fischer FixTainer - Expansion plug SX Plus 6,8,10 S with screws
Brand: fischer

Varianti del prodotto

Download of image data

Top Features

With the practical click system for connecting multiple FixTainers together for easy transport.
Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.
With the appropriate screw for maximum hold.
Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.

fischer FixTainer - for everyone who plans big.

Advantages

The 4-way expansion ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials.
The special fixing wings ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The special shape of the plug makes it easy to insert into the drill hole with just a few hammer blows.
The pronounced edge of the plug prevents it from slipping deeper into the drill hole and enables secure installation.
Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw.

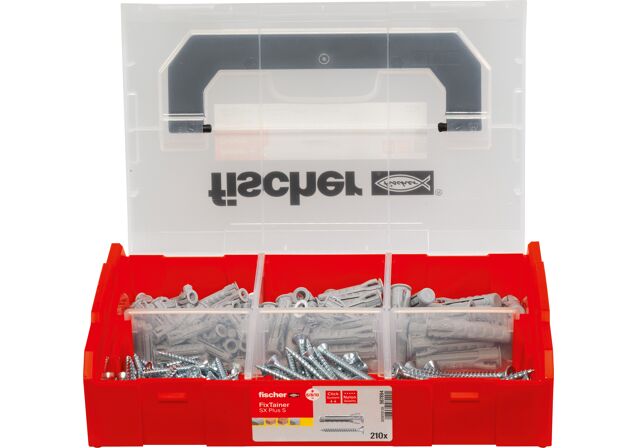

The SX Plus plug and screw box contains the fischer plugs SX Plus and the corresponding screws. The FixTainer boxes come with a carry handle and transparent lid. They can be firmly connected together and thus stacked. In addition, they are compatible with the Sortimo L-Boxx system.

Applications

Lamps
Wardrobes
Motion detectors
Skirting boards
Light wall shelves
Mirror cabinets
Mailboxes
TV consoles
Trellis
Folding shutters
Fire detector

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Solid stone of leightweight concrete
Hollow block of leightweight concrete
Natural stone
Hollow brick & concrete ceilings
Solid gypsum boards

Maggiori informazioni su materiali di supporto, ecc. sono disponibili nella documentazione tecnica.

Functionality

The SX Plus is suitable for pre-positioned and push-through installation.
When the plug is inserted, the fixing wings fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
When the screw is tightened, the SX Plus expands in four directions and thus anchors itself securely in the building material.
The anti-rotation lock prevents the plug from twisting and allows for easy installation.
Suitable for wood and chipboard screws, as well as stud screws.
The required screw length is given by the plug length + fixture thickness + the screw diameter.

SX Plus in concrete

1 / 5

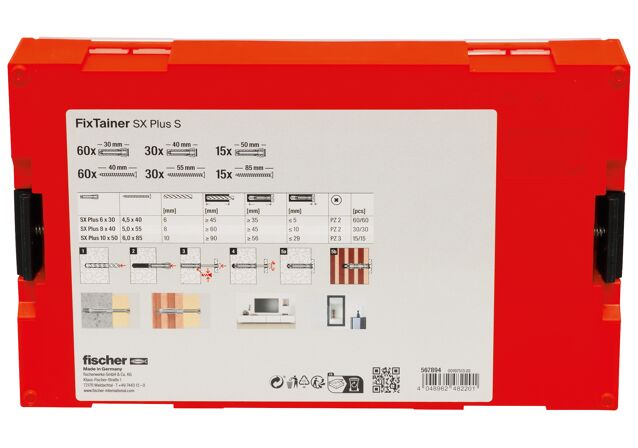

Contents	60 x Expansion plug SX Plus 6 x 30 60 x Countersunk head screw 4.5 x 40 PZ 30 x Expansion plug SX Plus 8 x 40 30 x Countersunk head screw 5.0 x 55 PZ 15 x Expansion plug SX Plus 10 x 50 15 x Countersunk head screw 6.0 x 85 PZ
Packaging	Assortment box
Amount	105 pcs
GTIN (EAN-Code)	4048962482201
