fischer aerated concrete plug FFA 10 S with screw

Name: fischer aerated concrete plug FFA 10 S with screw
Brand: fischer

Product Variant

Download of image data

Top Features

Easy installation without need for special setting tool.
Secure and strong anchoring in the buidling material.

The nylon specialist for aerated concrete.

Advantages

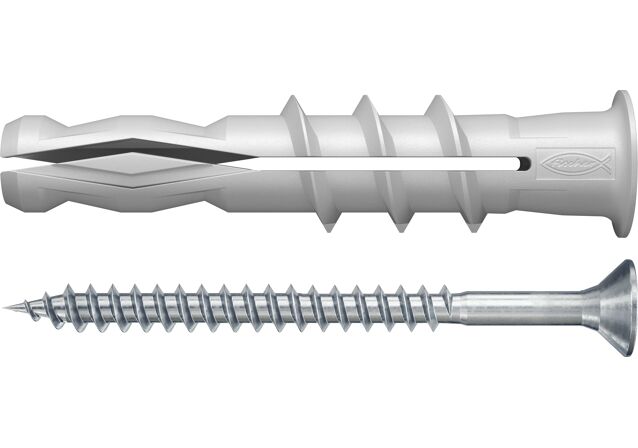

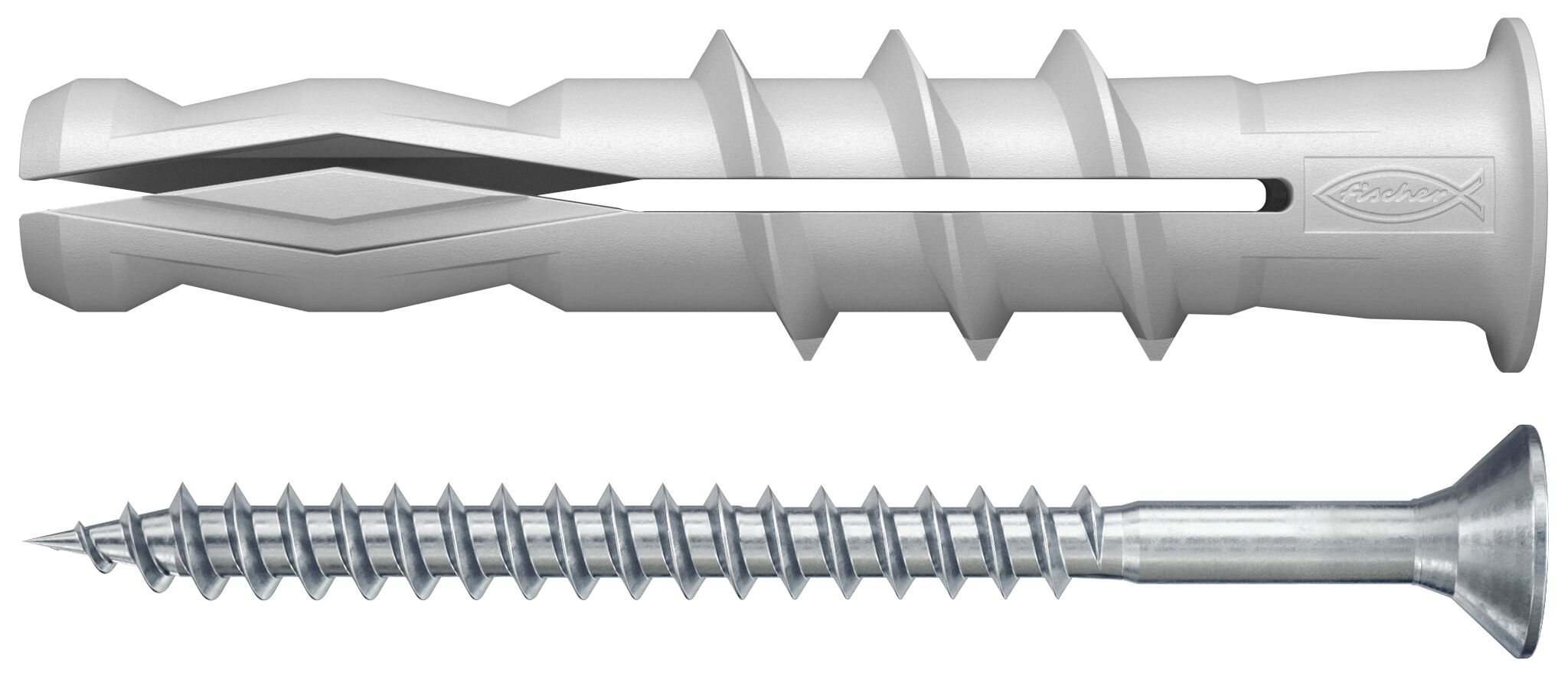

The spiral-shaped external thread cuts into the soft aerated concrete in a form-fitting manner. In addition, the plug expands when the screw is turned in. Secure and strong anchoring in the porous building material aerated concrete is guaranteed.
Thanks to the TX drive on FFA 8 and 10 and the hexagon socket on FFA 14, installation is easy without the need for special setting tools and with low setting energy.

The fischer aerated concrete plug FFA is a special anchor for fixing in aerated concrete. It is ideal for securely fixing shelves, pictures, lights and radiators in aerated concrete. The plug, made of high-quality nylon, is inserted after pre-drilling in the pre-positioned installation. The spiral-shaped external thread cuts into the aerated concrete with a form-fitting connection. In addition, the plug expands when the screw is turned in. This ensures a high load-bearing capacity and thus added safety.

Drill diameter ( d₀ )	10 mm
Min. drill hole depth ( h₁ )	80 mm
Plug length = min. anchorage depth ( l = h_ef )	62 mm
Plug drive	TX40
Screw dimension ( d_s x l_s )	6.0x80 mm
Drive	TX30
Max. fixture thickness ( t_fix )	10 mm

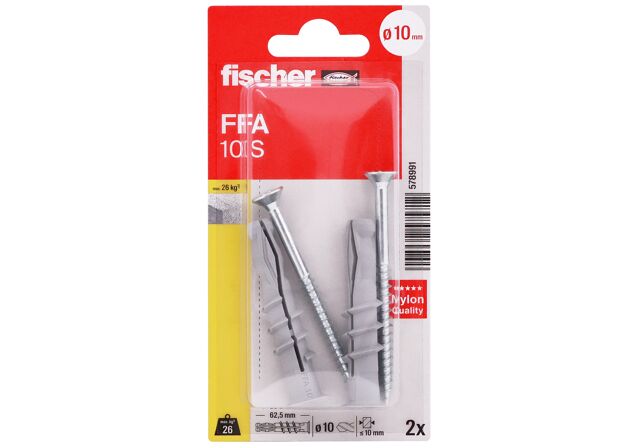

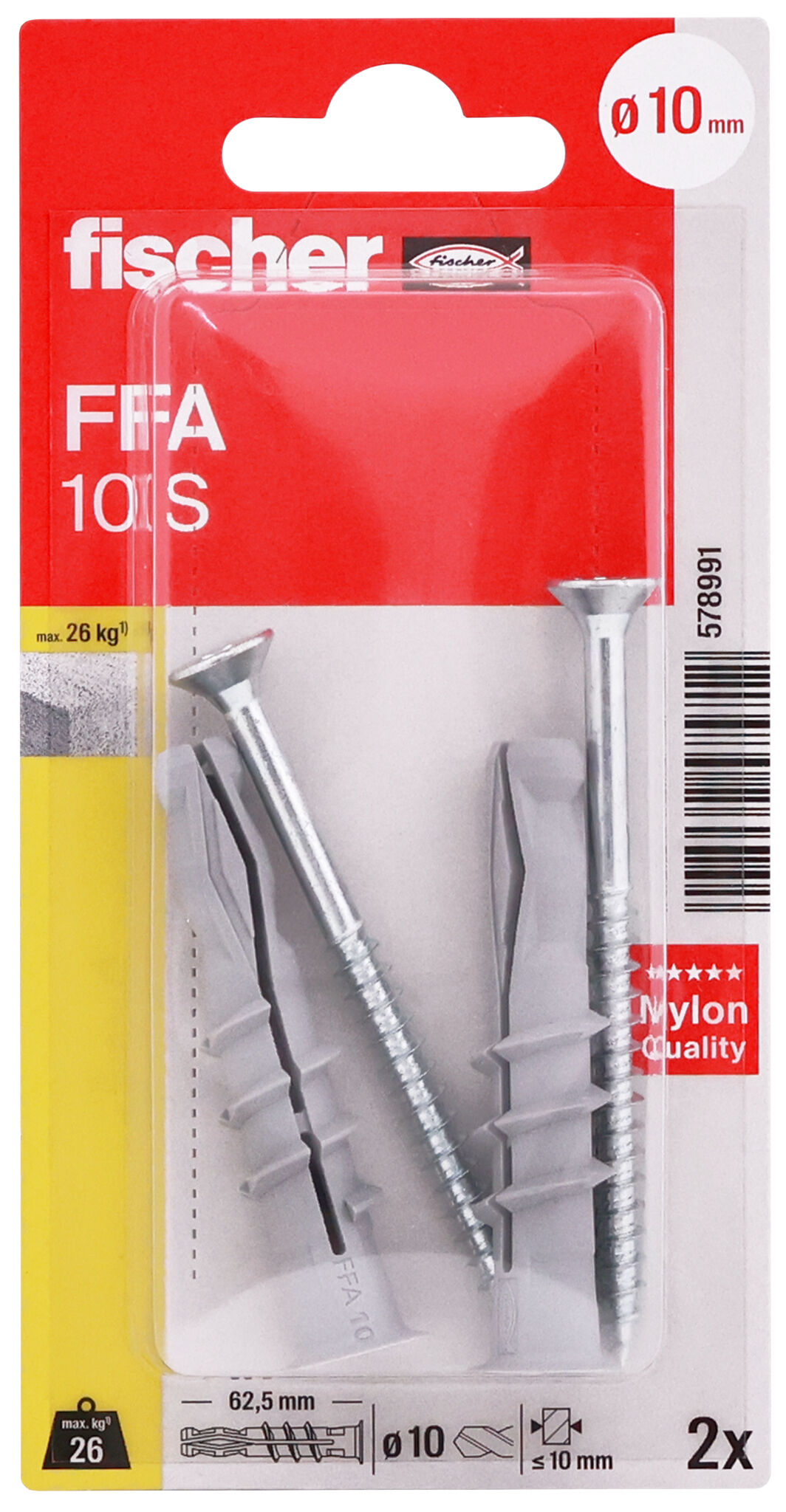

Contents	2 x Aerated concrete plug FFA 10 2 x Countersunk head screw 6.0 x 80
Amount	2 pcs
Packaging	Blister card
GTIN (EAN-Code)	4048962575712
