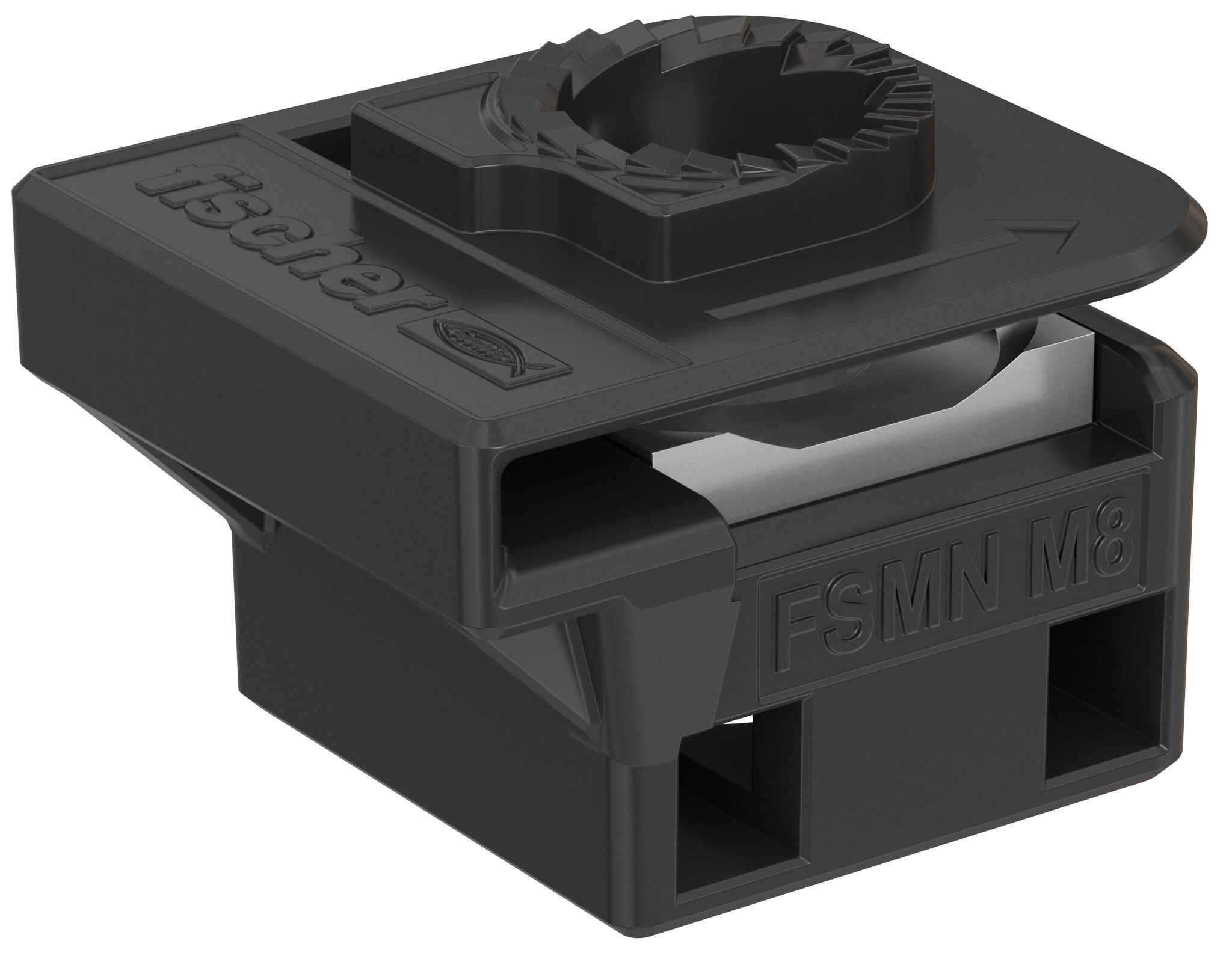

fischer sliding nut FSMN II R, stainless steel

Name: fischer sliding nut FSMN II R, stainless steel
Brand: fischer

Product Variant

Download of image data

Top Features

Automatic integrated potential equalisation during assembly
Made of A4 stainless steel and fibreglass-reinforced plastic sheath
Nut is simply slid over the frame - very quick installation
Constraint-free installation

For simple and secure fixing of PV modules with the fischer PV clip FSMC

Advantages

Designed to match the fischer PV clip system for fixing PV modules to façades.
The design enables quick and uncomplicated installation.
Product made of stainless steel with high corrosion protection class III for high weather resistance.
Integrated potential equalisation

With the corrosion-resistant sliding nut FSMN II made of A4 stainless steel, the fischer PV clip FSMC and the PV module are securely and mechanically connected. The product allows for material expansion and therefore enables constraint-free installation.

Properties

Stainless steel with high corrosion protection class III

Functionality

First module:

Slide at least four sliding nuts FSMN onto the mounting holes on the back of the module frame
Install at least two start/end clips FSMC S/E with one fischer serrated screw with integrated thread locker each on one side of the module
Install at least two middle clips FSMC M with one fischer serrated screw with integrated thread locker each on the opposite side of the module.
Fix the start/end clips FSMC S/E to the building substrate using plugs, wood screws etc.
Fix the middle clips FSMC M to the building substrate using plugs, wood screws etc.

Middle modules:

Slide at least four sliding nuts FSMN onto the mounting holes on the back of the module frame
Screw the fischer serrated screws with integrated thread locker into the sliding nuts on one side of the module
Install at least two middle clips FSMC M with one fischer serrated screw with integrated thread locker each on the opposite side of the module
Attach the screws to the previous module using the lock-and-key principle and slide them in
Fix the middle clips FSMC M to the building substrate using plugs, wood screws etc.

Last module:

Slide at least four sliding nuts FSMN onto the mounting holes on the back of the module frame
Screw the fischer serrated screws with integrated thread locker into the sliding nuts on one side of the module
Install at least two start/end clips FSMC S/E with one fischer serrated screw with integrated thread locker each on the opposite side of the module
Attach the screws to the previous module using the lock-and-key principle and slide them in
Fix the start/end clips FSMC S/E to the building substrate using plugs, wood screws etc.

Installation PV clip system

1 / 10

fischer sliding nut FSMN II R, stainless steel

Your advantages / Product description

Application and approval

Assembly instruction

Technical Data

Documents for Downloading

Amount	100 pcs
GTIN (EAN-Code)	4048962554816
