For easy and secure fixing of PV modules with the fischer PV clip FSMC
Advantages
Adapted to the fischer PV clip system for fixing PV modules to façades
Secure connection of PV modules with the PV clip FSMC

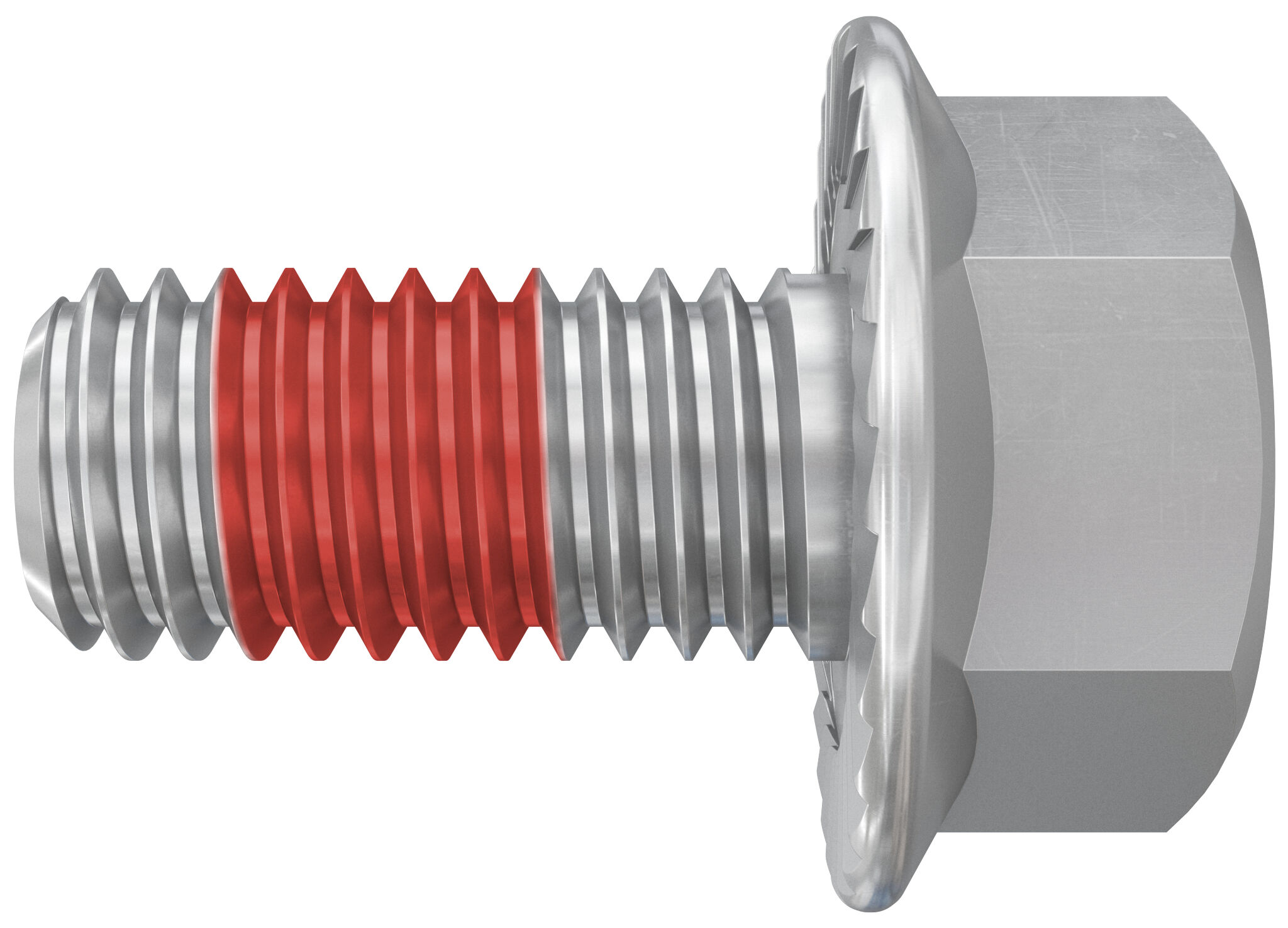

The corrosion-resistant screw with hexagonal head made of A4 stainless steel is used to securely and mechanically connect the PV clip and the PV module. Additional thread locker is already applied which prevents an unintentional loosing of the screw.
Properties
Stainless steel with high corrosion protection class III
Prijava i odobrenje
Applications
System for attaching PV modules to façades
For connecting the PV clips FSMC to the PV module
Building materials
Various building substrates (concrete, wood, masonry, steel, trapezoidal sheet metal)
Various substructures (aluminum profiles, steel profiles, wooden battens)
Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.
Uputstvo za montažu
Functionality
First module:
Slide at least four sliding nuts FSMN onto the mounting holes on the back of the module frame
Install at least two start/end clips FSMC S/E with one fischer serrated screw with integrated thread locker each on one side of the module
Install at least two middle clips FSMC M with one fischer serrated screw with integrated thread locker each on the opposite side of the module.
Fix the start/end clips FSMC S/E to the building substrate using plugs, wood screws etc.
Fix the middle clips FSMC M to the building substrate using plugs, wood screws etc.
Middle modules:
Slide at least four sliding nuts FSMN onto the mounting holes on the back of the module frame
Screw the fischer serrated screws with integrated thread locker into the sliding nuts on one side of the module
Install at least two middle clips FSMC M with one fischer serrated screw with integrated thread locker each on the opposite side of the module
Attach the screws to the previous module using the lock-and-key principle and slide them in
Fix the middle clips FSMC M to the building substrate using plugs, wood screws etc.
Last module:
Slide at least four sliding nuts FSMN onto the mounting holes on the back of the module frame
Screw the fischer serrated screws with integrated thread locker into the sliding nuts on one side of the module
Install at least two start/end clips FSMC S/E with one fischer serrated screw with integrated thread locker each on the opposite side of the module
Attach the screws to the previous module using the lock-and-key principle and slide them in
Fix the start/end clips FSMC S/E to the building substrate using plugs, wood screws etc.
