fischer roof hook RH 43 HB W A2 stainless steel

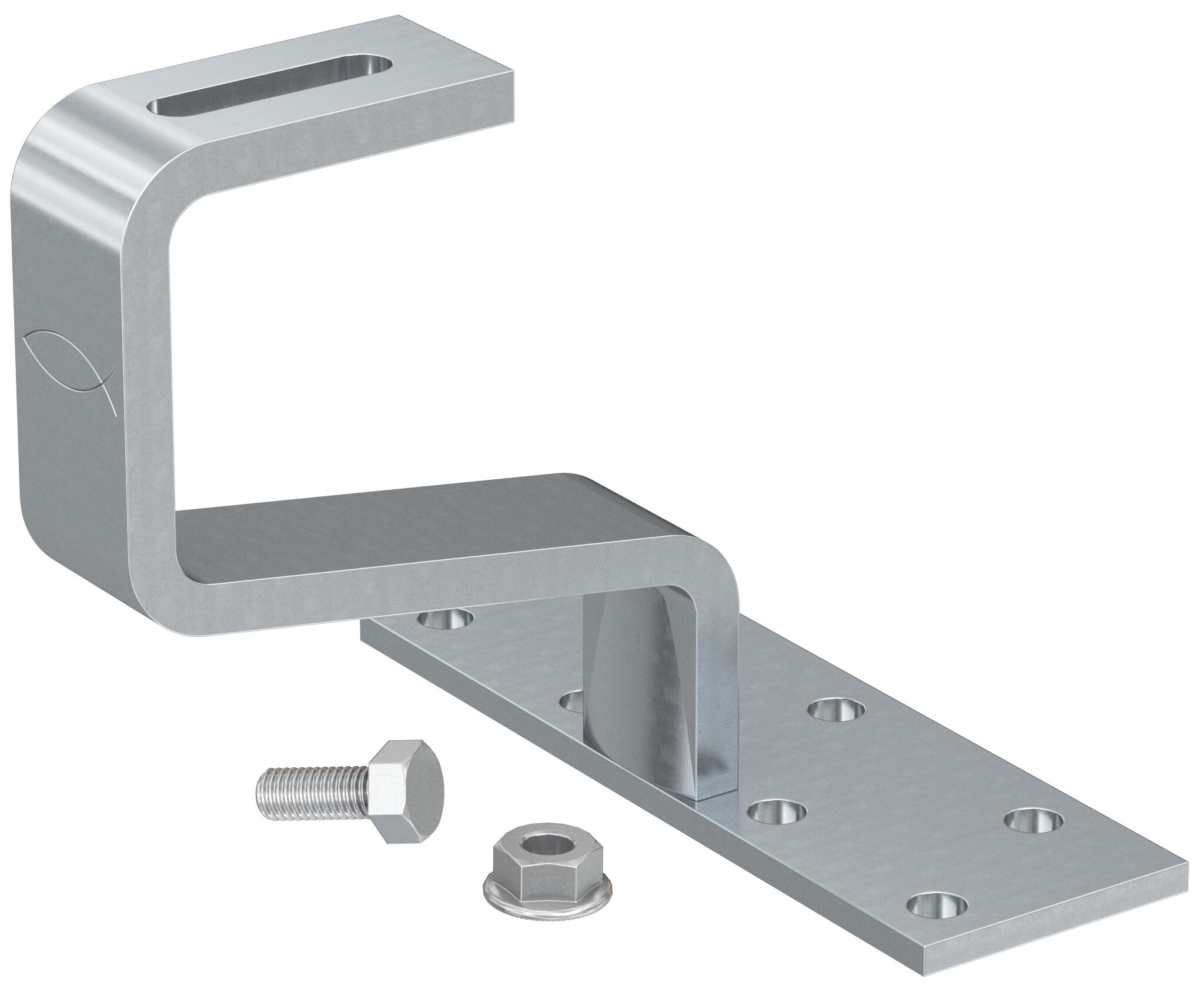

Name: fischer roof hook RH 43 HB W A2 stainless steel
Brand: fischer

Product Variant

Download of image data

Top Features

Wide base for easy fixing on continuous bearing supports.
Made of AISI 304 stainless steel.

HBS WTP 8.0 x 80 A2 100
HBS WTP 8.0 x 100 A2 100
HBS WTP 8.0 x 120 A2 50
SolarFish H44 2.50 m AL
SolarFish H44 3.35 m AL
SolarFish H44 3.65 m AL
SolarFish H44 3.65 m AL black
SolarFish H44 4.45 m AL
SolarFish H44 4.85 m AL

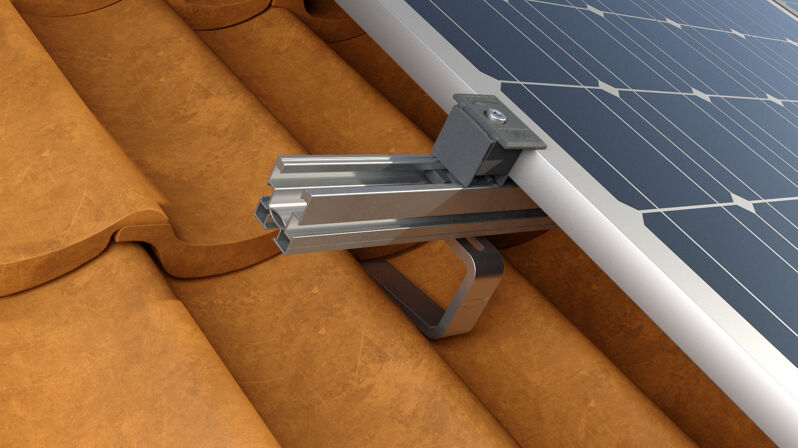

The fixed hook for tiled roofs

Advantages

The accessories for connecting to the Solar rails are already included in the package.
The wider base plate with ø9 mm holes makes connection with the supporting structure easy.
The GT hooks are available in two heights (130 and 150 mm) for full compatibility with all types of tiles and with the centre distances of the supporting structure.

GT is the AISI 304 stainless steel hook for building structures for photovoltaic systems on tiled roofs with ventilation strip. The wide base plate makes it easy to engage the load-bearing part of the support in case of discontinuous structures. Screws for connection to the profile are supplied.

Properties

X5CrNi 18-10 stainless steel hook in accordance with EN 10088-2:2005.
Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010.

Functionality

Determine the centre distance of the hooks according to the snow and wind loads in the installation area.
Identify the position of the hooks according to the load-bearing structure and the layout of the system.
Lift the tile and fix the hook using the appropriate anchor determined according to the type and layers of the load-bearing support.

Installation stainless steel hook with large base GT A2

1 / 6

Thickness ( S )	8 mm
Under tile height ( h₁ )	43
Total height	130 mm
Depth ( D )	90 mm
Width across nut	13 mm
Installation torque ( T_inst )	10 Nm
Weight	0,73 kg
Contents	10 x Hook RH 43 HB W A2 10 x Hexagon head screw SKS M8 x 20 A2 10 x Hexagon nut MU F M8 A2
Amount	10 pcs
GTIN (EAN-Code)	8001132714225
