fischer roof hook DLA A2 stainless steel A2

Name: fischer roof hook DLA A2 stainless steel A2
Brand: fischer

Product Variant

Download of image data

Top Features

Bracket for standing seam panels with flat seaming
Two-screw fixing
3 mm increased thickness
Upper slot for profile adjustment
Complete with bolts and screws for connection to the rail
Made of AISI 304 stainless steel

CG INT
SolarFish H33 2.50 m AL
SolarFish H33 3.65 m AL
SolarFish H33 4.85 m AL
SolarFish H33 3.65 m AL black
SolarFish H44 2.50 m AL
SolarFish H44 3.35 m AL
SolarFish H44 3.65 m AL
SolarFish H44 3.65 m AL black

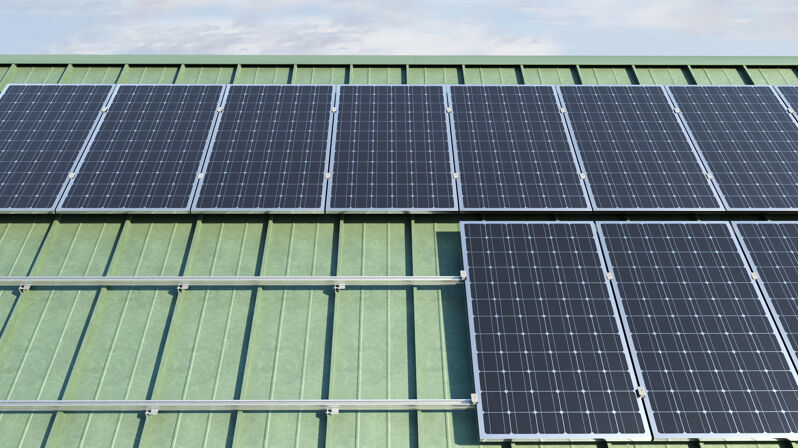

Stainless steel bracket for fixing structures of photovoltaic systems on standing seam panels. Suitable for flat seaming.

Advantages

The bracket is supplied complete with screws for connecting the rails.
Due to the AISI 304 stainless steel with increased thickness of 3 mm, the bracket is very robust.
The two-screw closure for a strong grip on the panel enables a secure fixing.

DLA is the AISI 304 stainless steel bracket for building structures of photovoltaic systems on standing seam roofs. Suitable for flat seaming. The system already contains the screws for connection to the rail.

Properties

X5CrNi 18-10 stainless steel bracket in accordance with EN 10088-2:2005
Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010

Functionality

Determine the position and centre distance of the brackets according to the snow and wind loads of the project installation area and the conformation of the standing seam.
Position a layer of CG INT butyl adhesive tape on the panel at the points where the brackets will be positioned.

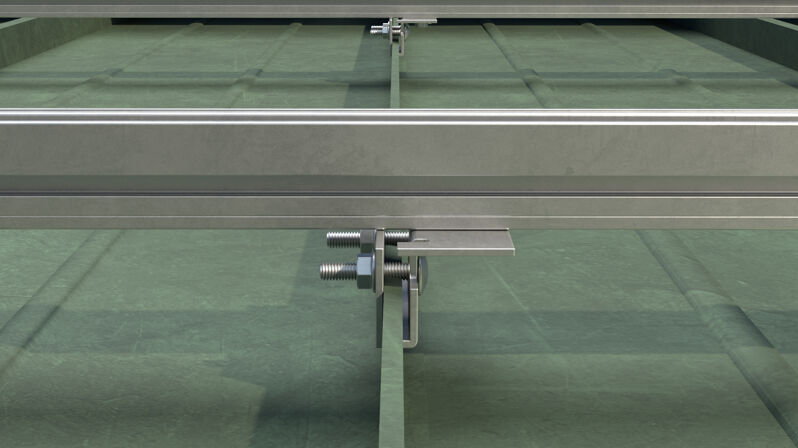

Position the bracket on the panel on the seam. Lower the bracket until the bend completely exceeds the thickness of the seam.
Tighten the two nuts to tighten the bracket around the panel seam.
Connect the bracket to the rail by passing the supplied screws inside the lower groove of the rail and through the slot on the top of the bracket.

Installation stainless steel hook for flat standing seam DLA A2

1 / 5

Thickness ( S )	3 mm
Width across nut	13 mm
Installation torque ( T_inst )	10 Nm
Weight	0,33 kg
Contents	10 x Hook DLA A2 10 x Hexagon head screw SKS M8 x 20 A2 30 x Hexagon nut MU F M8 A2 20 x Pan head screw M8 x 20 A2
Amount	10 pcs
GTIN (EAN-Code)	8001132715567
