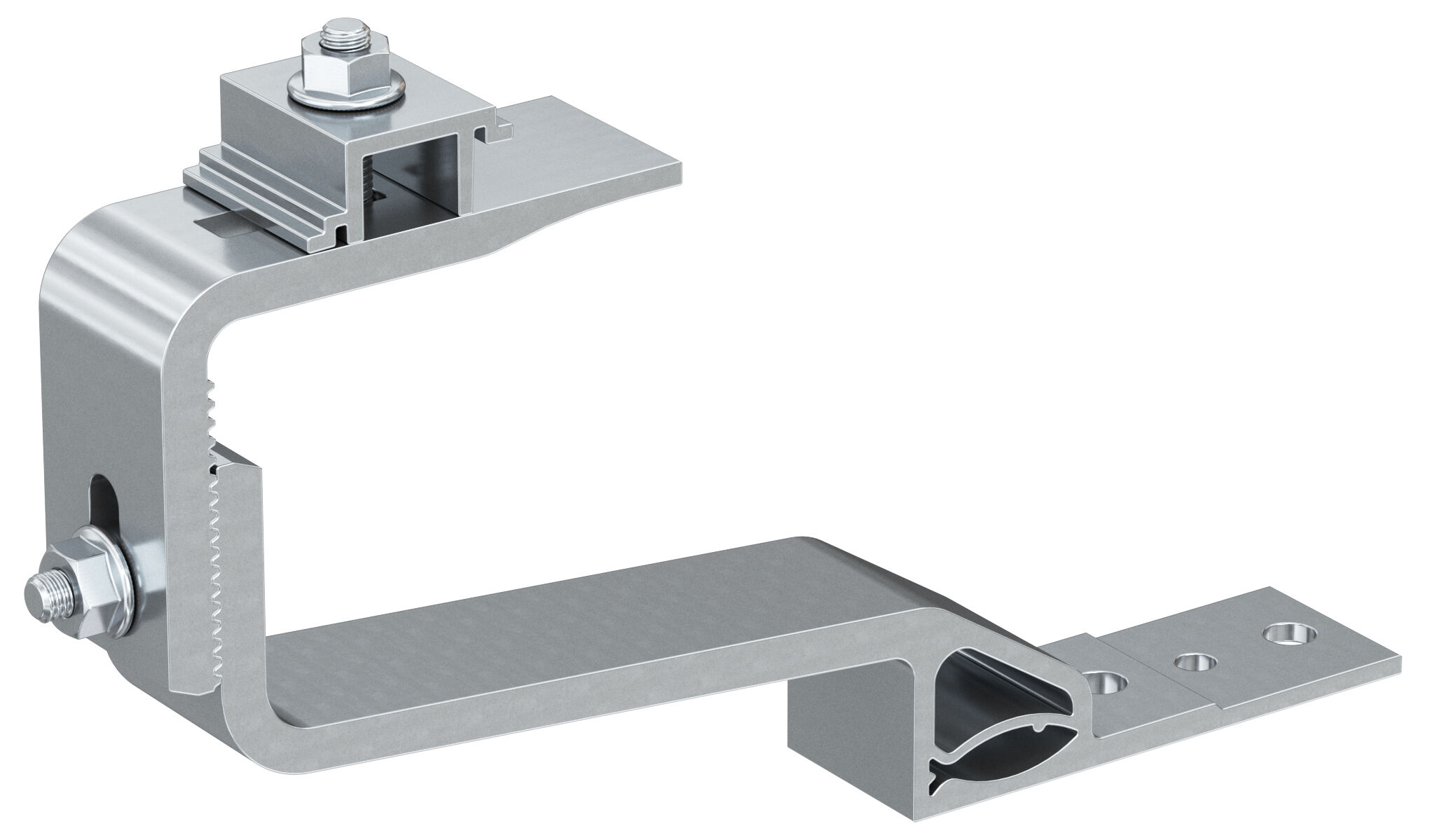

fischer hook for pitched roofs with tiles with 2 adjustments RH 30 H AL Aluminium

Name: fischer hook for pitched roofs with tiles with 2 adjustments RH 30 H AL Aluminium
Brand: fischer

Product Variant

Download of image data

Top Features

The two adjustments allow to vertically adjust the position for rail/tile top distance and to horizontally adjust the rail.
Suitable for tiles without a ventilation layer for a total thickness of maximum 30 mm.
The quick-coupling hook/rail joint can be fixed without additional screws.
The great load-bearing capacity allows the use of fewer hooks.

Art.-Nr. 572209
SolarFish H33 2.50 m AL
Art.-Nr. 572210
SolarFish H33 3.65 m AL
Art.-Nr. 572211
SolarFish H33 4.85 m AL
Art.-Nr. 572451
SolarFish H33 3.65 m AL black
Art.-Nr. 576307
SolarFish H44 2.50 m AL
Art.-Nr. 569371
SolarFish H44 3.65 m AL

Aluminium hook with fixed base for the installation of photovoltaic systems on tiled roofs without ventilation strip.

Advantages

The multiple adjustments allow to adapt the hook to different tiles and ventilation strip thicknesses;
The great load-bearing capacity allows the use of fewer hooks;
The hook has a controlled deformation and it's designed not to bend or damage the tiles;
Being pre-assembled, the hook is ready to be mounted without the need for additional accessories;
The hook is strong, lightweight and made of aluminium to last the entire life of the system;
By rotating the joint the hook becomes compatible with both SolarFish H33 and SolarFish H44 rails.

RH AL is the aluminium hook for building structures for photovoltaic systems on roof tiles without ventilation strip. The upper adjustment allows to adjust the distance of the rail from the top of the tile.The adjustment on the top of the hook allows to horizontally adjust the rail. The shape of the hook is designed to withstand the snow and wind loads required by law without touching the tile.

Properties

Hook in Aluminium alloy AW 6060 T6 and AW 6082 T6 in accordance with EN 2:2016.
Please note: any oxidation stains are considered characteristic of aluminium. This in no way impairs the functionality of the product and is not covered by the warranty.

Functionality

Determine the centre distance of the hooks according to the snow and wind loads in the installation area and the position according to the load-bearing structure and system layout.
Lift the tile and secure the base of the hook using the appropriate anchor determined according to the type and layers of the load-bearing support.
Make the height adjustments required by the type of roofing and tighten the screws of the adjustable joints to lock the hook in position.
Insert the joint on the top of the hook inside the side groove of the rail used. The joint can be rotated to adapt to SolarFish H33 or SolarFish H44 rails.

Installation hook RH 30 H AL

1 / 6

Thickness( S )	8 mm
Base plate width	35 mm
Height under bracket( h₁ )	30 mm
Total height	106 - 124 mm
Depth( D )	122 mm
Width across nut	13 mm
Installation torque( T_inst )	20 Nm
Adjustment range	30 mm
Weight	0,33 kg
Amount	10 pcs
GTIN (EAN-Code)	8001132116951
