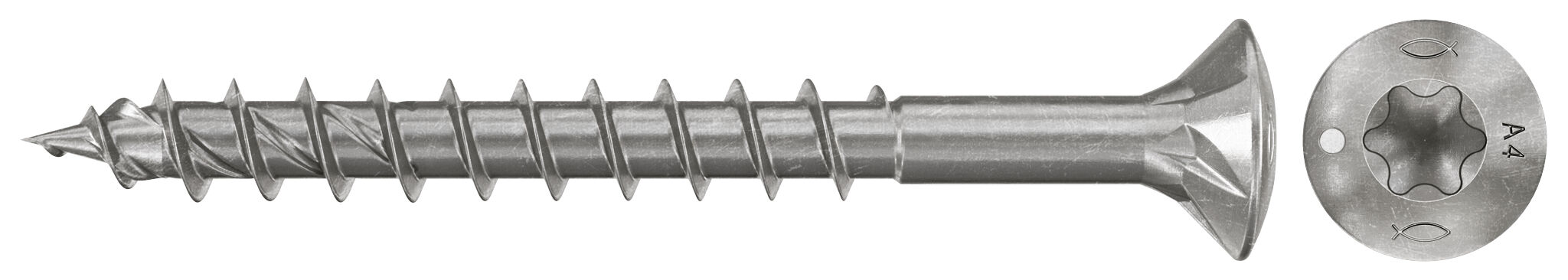

fischer chipboard screw PowerFast FPF II RTP 4.0 x 40 A4 200, raised countersunk head, TX recess drive, full thread, stainless steel A4

Name: fischer chipboard screw PowerFast FPF II RTP 4.0 x 40 A4 200, raised countersunk head, TX recess drive, full thread, stainless steel A4
Brand: fischer

Product Variant

Download of image data

Top Features

The increased thread pitch significantly reduces the installation time.
The three ribs on the tip, ensure a quick bite and pre-drilling.
The shank-miller in combination with the core-miller geometry is designed to reduce the installation torque.
The PowerFast II is suitable for use with fischer plugs (e.g DuoPower and UX) and recommended loads.

The chipboard screw with raised countersunk head, TX star recess socket and full thread.

Advantages

The screw geometry of the PowerFast II enables fast applications.
Installation is easy, comfortable and flexible.
The chipboard screw has significantly reduced splitting behavior in comparison with standard chipboard screws.
The PowerFast II with high performance wax coating reduces screw-in torque and allows smooth installation.
The stainless steel PowerFast II is very suitable for permanent outdoor use.

The fischer chipboard screw PowerFast FPF II RZF A4 is a stainless steel A4 screw with raised countersunk head, TX star recess socket and full thread. The small countersunk head with a slight curvature makes the screw visually attractive and enables a flush installation. The TX star recess drive enables top force transmission with maximum bit stability. The chipboard screw with full thread offers a higher extraction resistance due to the longer thread.

Applications

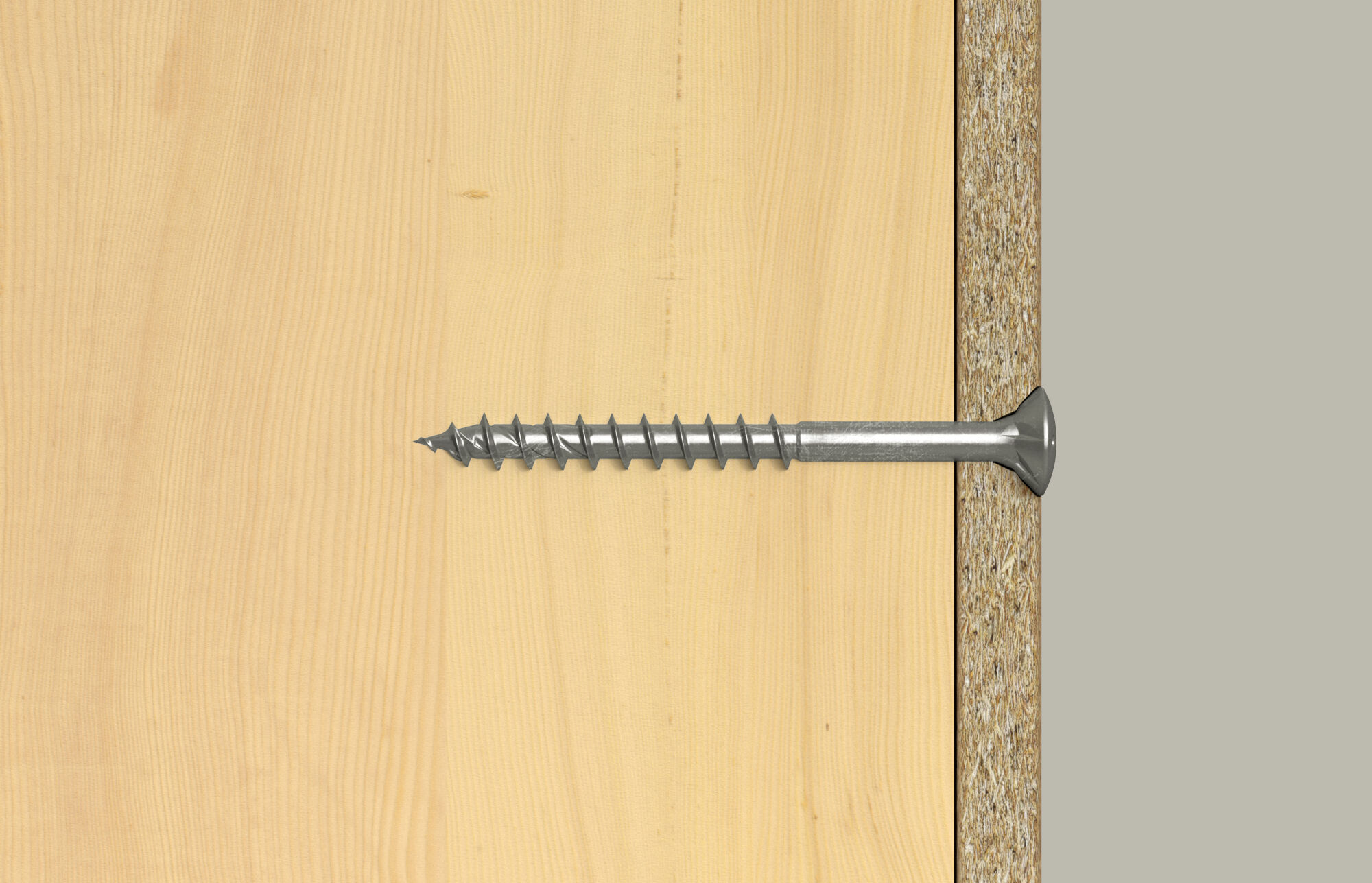

For use in load-bearing wooden constructions, for the connection of solid wood parts as well as glued laminated timber, cross laminated timber, etc.
For metal parts to wood, e.g. metal fittings, angles, beam shoes and other metal and wood connections.
Suitable for use with fischer plugs and recommended loads.

Building materials

Solid wood parts (soft wood and hard wood)
Glued-laminated timber
Cross-laminated timber
Veneer laminated timber
Similar glued wood components and woodbased panels

You can find detailed information on building materials in the approval document.

Approval

ETA-19/0175

ETA-approval
Diameter ( d )	4 mm
Length ( l )	40 mm
Drive	TX20
Thread length ( l_g )	28 mm
Amount	200 pcs
GTIN (EAN-Code)	4048962533477
