The chipboard screw with pan head, TX star recess socket and full thread

PowerFast FPF II PTF BC

Name: PowerFast FPF II PTF BC
Brand: fischer

The fischer chipboard screw PowerFast FPF II PTF is a blue passivated zinc plating screw with a pan head, TX star recess socket and full thread. The pan head with TX star recess drive enables top force transmission with maximum bit stability.The round head means that it is suitable for connecting metal to timber, such as fixing metal fittings, brackets, or joist hangers. The chipboard screw with full thread offers a higher extraction resistance due to the longer thread.

Product Variant

Download of image data

Product Variant

Approvals / Test reports

40 product variants

Diameter

Length

Drive

Thread length

Packaging

Amount

Legend = Permission Available— = Permission not Available

More results

Viewed 18 of 40 variant (s)

Advantages

The screw geometry of the PowerFast II enables fast applications.
Installation is easy, comfortable and flexible.
The chipboard screw has significantly reduced splitting behavior in comparison with standard chipboard screws.
The PowerFast II with high performance wax coating reduces screw-in torque and allows smooth installation.
The blue passivated zinc plating does not contain chrome VI and is therefore environmentally friendly.

Applications

For use in load-bearing wooden constructions, for the connection of solid wood parts as well as glued laminated timber, cross laminated timber, etc.

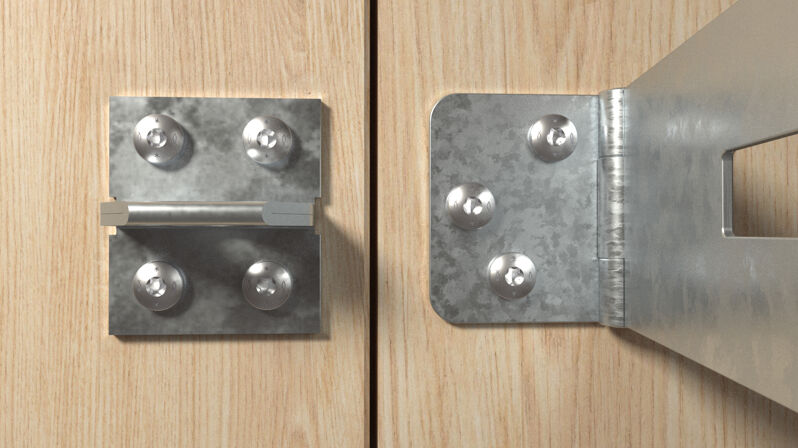

For metal parts to wood, e.g. metal fittings, angles, beam shoes and other metal and wood connections.
Suitable for use with fischer plugs and recommended loads.

Building materials

Solid wood parts (soft wood and hard wood)
Glued-laminated timber
Cross-laminated timber
Veneer laminated timber
Similar glued wood components and woodbased panels

You can find detailed information on building materials in the approval document.

Approval

ETA-19/0175
DoP No. W0020

ETA-approval	—
Diameter ( d )	3 mm
Length ( l )	12 mm
Drive	TX10
Thread length ( l_g )	8 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962369144

ETA-approval	—
Diameter ( d )	3 mm
Length ( l )	16 mm
Drive	TX10
Thread length ( l_g )	12 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962369151

ETA-approval
Diameter ( d )	3 mm
Length ( l )	20 mm
Drive	TX10
Thread length ( l_g )	16 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962369168

ETA-approval
Diameter ( d )	3 mm
Length ( l )	25 mm
Drive	TX10
Thread length ( l_g )	21 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962369175

ETA-approval
Diameter ( d )	3 mm
Length ( l )	30 mm
Drive	TX10
Thread length ( l_g )	26 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962369182

PowerFast FPF II PTF BC

Product Variant

Your advantages / Product description

Application and approval

Assembly instruction

Documents for Downloading

ETA-approval	—
Diameter ( d )	3,5 mm
Length ( l )	12 mm
Drive	TX20
Thread length ( l_g )	8 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962369557

ETA-approval	—
Diameter ( d )	4 mm
Length ( l )	15 mm
Drive	TX20
Thread length ( l_g )	10 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4048962370911
