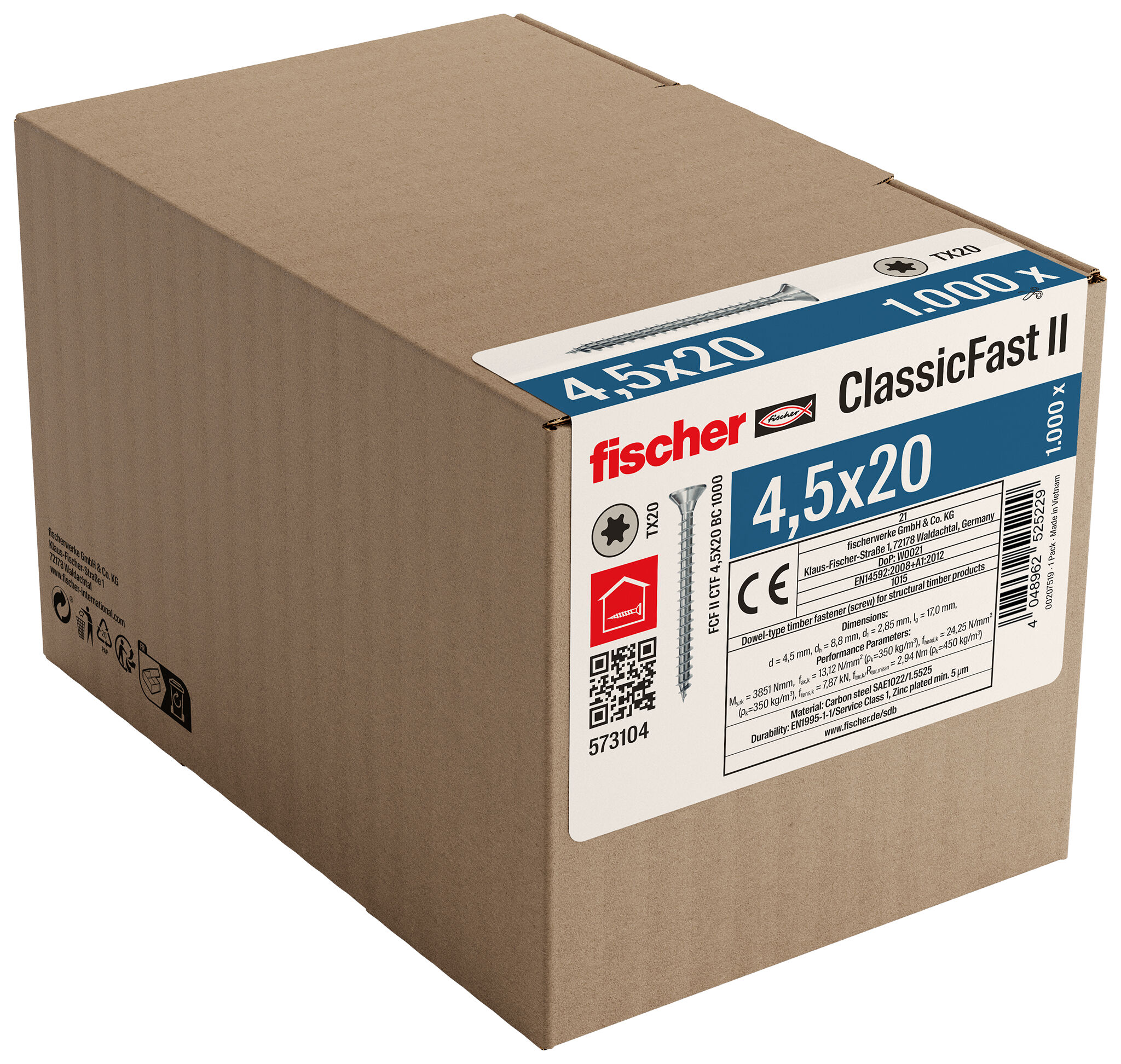

fischer chipboard screw ClassicFast FPF II CTF 4.5 x 20 BC 1000, countersunk head, TX drive, full thread, blue passivated, zinc plating, 1000 pieces

Name: fischer chipboard screw ClassicFast FPF II CTF 4.5 x 20 BC 1000, countersunk head, TX drive, full thread, blue passivated, zinc plating, 1000 pieces
Brand: fischer

Product Variant

Download of image data

Top Features

Lasting safety thanks to CE conformity.
Attractive surface appearance thanks to countersunk head.
Full thread offers increased extraction resistance.
Reliably applicable in numerous wood building materials.

Chipboard screws ChlssicFast FCF II CTF BC with countersunk head , TX star recess drive and full thread.

Advantages

The chipboard screws ClassicFast FCF II can be used universally in all wooden materials.
The screws offer lasting safety thanks to their CE conformity.
The countersunk head ensures an appealing surface appearance.
The full thread offers increased extraction resistance thanks to the longer thread.

The fischer ClassicFast FCF II CTF BC is a zinc-plated, blue-passivated chipboard screw with a countersunk head, TX star recess seat, and full thread. The cost-effective chipboard screw is suitable for processing in numerous types of wood. The countersunk head with TX star recess drive guarantees top force transmission with maximum bit stability for flush screwing operations. The full thread offers increased extraction resistance thanks to the longer thread. CE conformity ensures added safety.

Applications

General wood joints
Plankings
Door and metal fittings
Skirting
Finger tightening elements
Wooden fences
Typically used for wood-wood connections

Building materials

Cross-laminated timber
Glued-laminated timber
Plywood
Laminated veneer plywood panels (e.g. Multiplex)
Soft woods
Hard woods (pre-drilled)
Chipboards and oriented strand boards (e.g. OSB panels)
Solid wood panels

You can find detailed information on building materials in the approval document.

Approval

DoP No. W0021

Diameter ( d )	4,5 mm
Length ( l )	20 mm
Drive	TX20
Thread length ( l_g )	17 mm
Head-ø ( d_h )	8,8 mm
Amount	1.000 pcs
GTIN (EAN-Code)	4048962525229
