Art.-No. 571698

GTIN (EAN-Code): 4048962514865

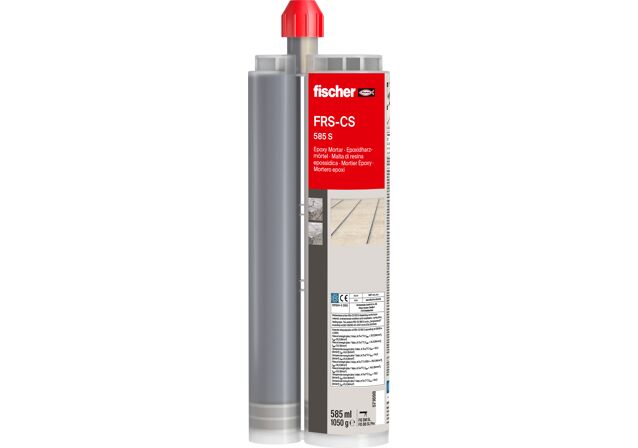

fischer Epoxy mortar FRS-CS 585 S

Name: fischer Epoxy mortar FRS-CS 585 S
Brand: fischer

Product Variant

Download of image data

Top Features

Epoxy mortar for the optimal application of carbon fibre or steel reinforcements
Cartridge system with groove adapter to easily fill concrete grooves for applying near surface mounted CFRP laminates into the concrete
Additionally approved as a universal concrete repair mortar for repairing concrete unevenness up to 4 mm
Thixotropic behaviour for efficient application, even for overhead applications

Universal adhesive and repair mortar for concrete and carbon fibre or steel strengthenings.

Advantages

Available as injection cartridge, alternatively in can system for large-scale applications
Thixotropic behaviour for efficient application, even in overhead applications
No additional primer required
Perfectly optimized performance combined with the externally bonded and near surface bonded FRS-L-S, FRS-L-H, FRS-L-S NSM CFRP laminates
Fast injection in groove using FRS-CS injection cartridge systems
No mixing equipment required if cartridge systems are used

Thixotropic, 2-component structural bonding agent for the installation of EB and NSM CFRP Laminates and steel stirrups on concrete substrates, universal repair mortar.

Applications

Installation of externally bonded and near surface bonded FRS-L-S, FRS-L-H, FRS-L-S NSM CFRP laminates
Post-installed shear reinforcement using steel stirrups
Levelling mortar for concrete surface unevenness (≤ 4 mm)
Universal construction adhesive mortar for different construction materials according to EN 1504-4
Repair mortar according to EN 1504-3
Post-installed rebar connection ccording to EN 1504-6

Building materials

Approved for:

Concrete

Applicable for:

Masonry
Timber

You can find detailed information on building materials in the approval document.

Approval

ETA-24/0281
DoP No. BS-002
DoP No. BS-003
DoP No. BS-004
ESR-4774

ETA Certification Document

pdf, ETA-24/0281

European Technical Assessment for fischer C-Fiber Force Strengthening System - Kits for the strengthening of concrete elements by externally bonded and near surface mounted CFRP strips

Created on 12/06/2024

DOP - Declaration of Performance

pdf, DoP No. BS-002

Declaration of Performance for fischer FRS-CS

Created on 09/16/2024

DOP - Declaration of Performance

pdf, DoP No. BS-003

Declaration of Performance for fischer FRS-CS

Created on 09/16/2024

DOP - Declaration of Performance

pdf, DoP No. BS-004

Declaration of Performance for fischer FRS-CS

Created on 09/16/2024

Mixing ratio	77:23
Colour	grey
Single layer thickness	1 - 5 mm
Density	1.80 g/cm³
Processing temperature	+ 10 °C to + 40 °C
Mean tensile strength	35 N/mm²
Compressive strength	85 N/mm²
Mean Elastic Modulus (compression)	7.500 N/mm²
Contents	1 x Cartridge FRS-CS 585 S 1 x FIS UMR static mixer 1 x FRS-GA groove adapter
Amount	6 pcs
GTIN (EAN-Code)	4048962514865
