Name: fischer TermoZ SV II Ecotwist 30-60
Brand: fischer

The innovative countersinkable ETICS fixing for all building material classes

Advantages

Standard anchoring depth for all building materials.
One fixing for all insulating material thicknesses from 100 mm to 400 mm. This increases productivity, saves time and storage space.
Sturdy setting tool with stop disc for a simple and precise setting procedure.
The screw disc cuts in cleanly, without damaging the insulating material.
Simple setting using the specially designed setting tool.

The fischer TermoZ SV II EcoTwist is ideal for fixing pressure-resistant insulation from 100 to 400 mm thick for thermal insulation systems such as polystyrene boards or homogeneous mineral wool boards in concrete, solid and perforated brick, lightweight aggregate concrete and aerated concrete securely. The European Technical Assessment guarantees a secure hold. The screw fixing comprises a grey plug sleeve with attached disc and a screw. The TermoZ SV II EcoTwist is set very deep quickly and accurately. The insulation disc is gently screwed into the fixing as it rotates. The uniform anchorage depth for all building materials and the universal size for all insulation thicknesses reduces the complexity, saves time and storage space.

Applications

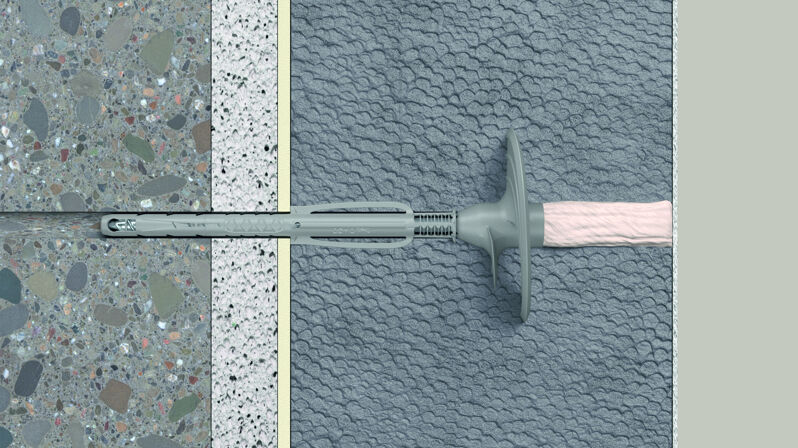

Attachment of ETICS EPS insulation and homogeneous mineral wool boards to concrete and masonry building materials
Counterbored installation

Building materials

Building material classes A, B, C, D, E
Concrete
Concrete (weather shell)
Building brick
Solid sand-lime brick
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete
Lightweight aggregate concrete
Sepa Parpaing (French brick)

You can find detailed information on building materials in the approval document.

Approval

ETA-12/0208
DoP No. 0324
EPD-FIW-20210314-CBD1-EN

Functionality

The plug is inserted through the insulation in the drill hole and rotated with the setting tool.
The screw-mounted support plate and the screw have the same pitch. As a result, they rotate through the insulation simultaneously until the anti-rotation lock reaches the subsurface.
The steel screw then rotates into the expansion zone. At the same time, the compression zone is pushed together to a few millimetres and the fixing anchors in the subsurface.
The setting procedure ends when the marking ring lies on the insulation.
For bridging non-supporting layers.

Installation TermoZ SV II

1 / 7

1
2
3
4
5
6
7

ETA-approval
Insulation thickness ( h_D )	100 - 400 mm
Disc ø	66 mm
Drill diameter ( d₀ )	8 mm
Thickness of tolerance compensation non-bearing layers ( t_tol )	30 - 60 mm
Effect. anchorage depth ( h_ef )	35 mm
Min. drill hole depth in the building material incl. non-bearing layers ( h₁ )	105 mm
Min. total drill hole incl. insulation and non-bearing layers ( h )	hD + 105 mm
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4048962202663
