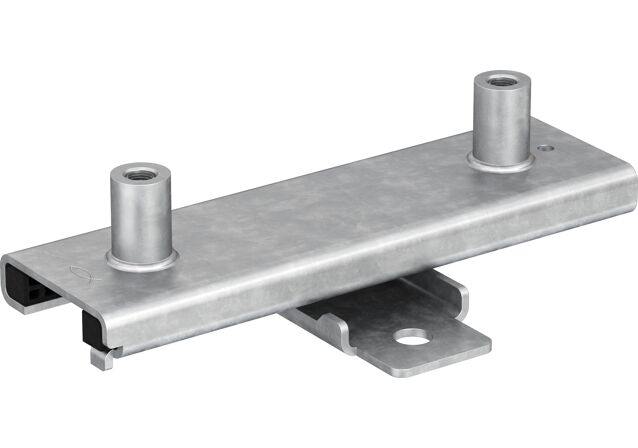

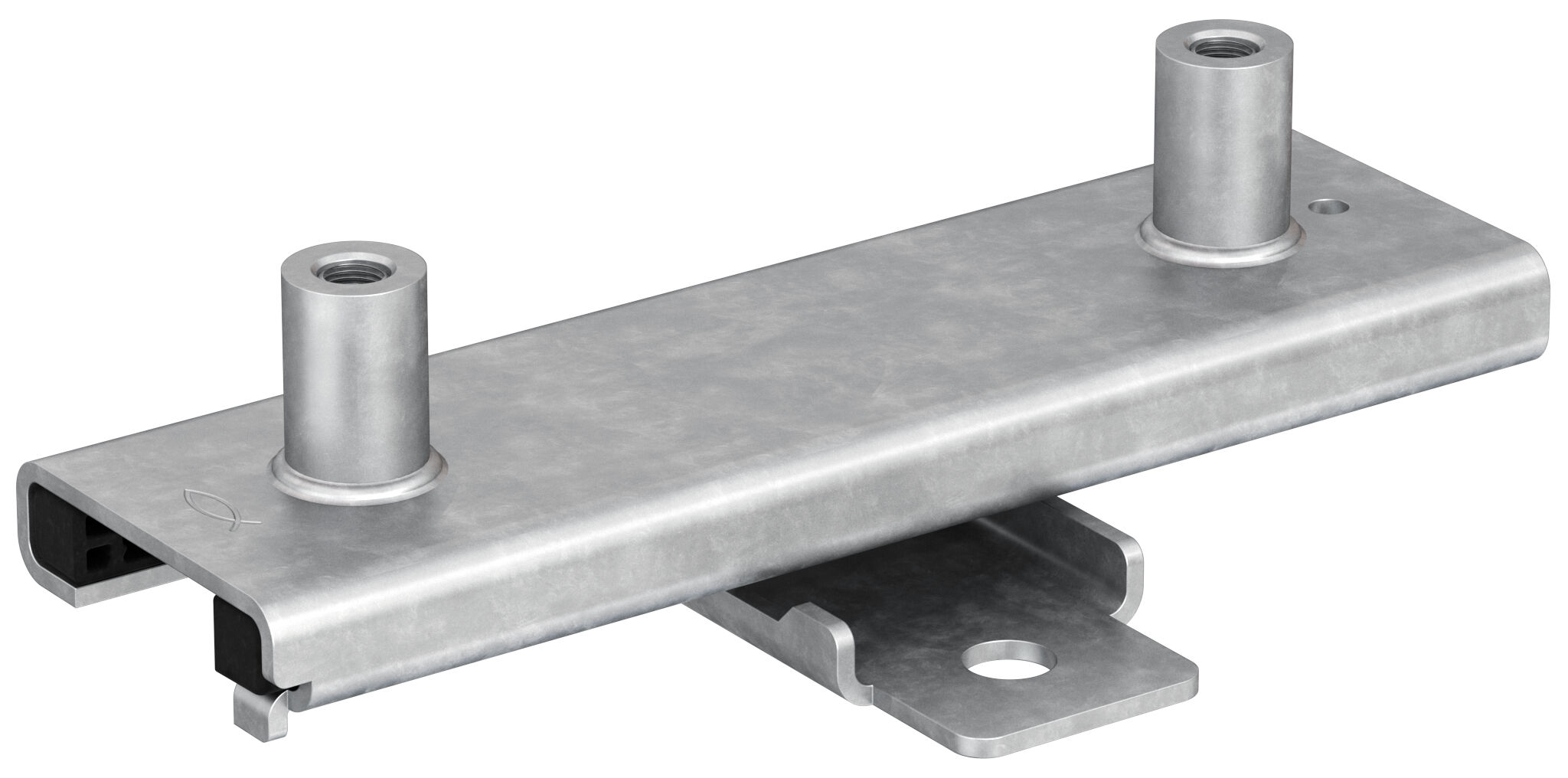

fischer Axial Slider medium FASM2 M10/12 hot-dip galvanised hdg

Name: fischer Axial Slider medium FASM2 M10/12 hot-dip galvanised hdg
Brand: fischer

Variantes de productos

Download of image data

Top Features

Application as upright or hanging slider.
Sliding path of 100 or 150 mm possible.
Compatible with the FUS and FMS channel systems.

The medium axial slider with single or double mount and combination connection thread

Advantages

The FASM can be used flexibly, thanks to the application options as a standing or hanging slider and as a guide bearing on vertical pipelines.
The low sliding friction of the plastic sliding rails enables optimum force application at the fixed point.
The large sliding path and the long slide rails allow large expansions to be accommodated without any problems.
The base plate of the FASM is compatible with the FUS and FMS channel systems and allows fixing with one or two screws.
A cross-slide function of the FASM is possible with the FCSM cross slider as well as with the FASL2 M10.

The FASM Axial Slider is used for absorbing pipe expansions and is recommended for medium pipes up to DN150. The FASM has a maximum sliding range of 100 mm / 150 mm and a maximum load capacity of 3,0 kN. fischer offers the FASM with a metric combination thread M10/M12. The FASL can be used for upright or suspended mounting. The galvanized version is suitable for installations in buildings. The Axial Slider FASM2 guarantees an additional plus in safety thanks to the fire protection certificate.

Properties

Material: steel
Zinc plating: hot-dip galvanised
Sliding strip material: glass fiber reinforced polyamide
Thermal capacity: -30 °C to +130 °C

Fire test report	Yes
Thread ( A )	M10 / M12
Length ( L )	220 mm
Width ( B )	140 mm
Height ( H )	63 mm
Thickness ( S )	3 mm
Max. recommended static load (suspended) ( N_rec )	3 kN
Max. recommended static load (upright) ( N_rec )	3 kN
Static friction factor ( µh )	0.13
Sliding friction factor ( µg )	0.10
Max. sliding distance	150 mm
Amount	10 pcs
GTIN (EAN-Code)	4048962527230
