The wire cable system for securing installations against horizontal forces.

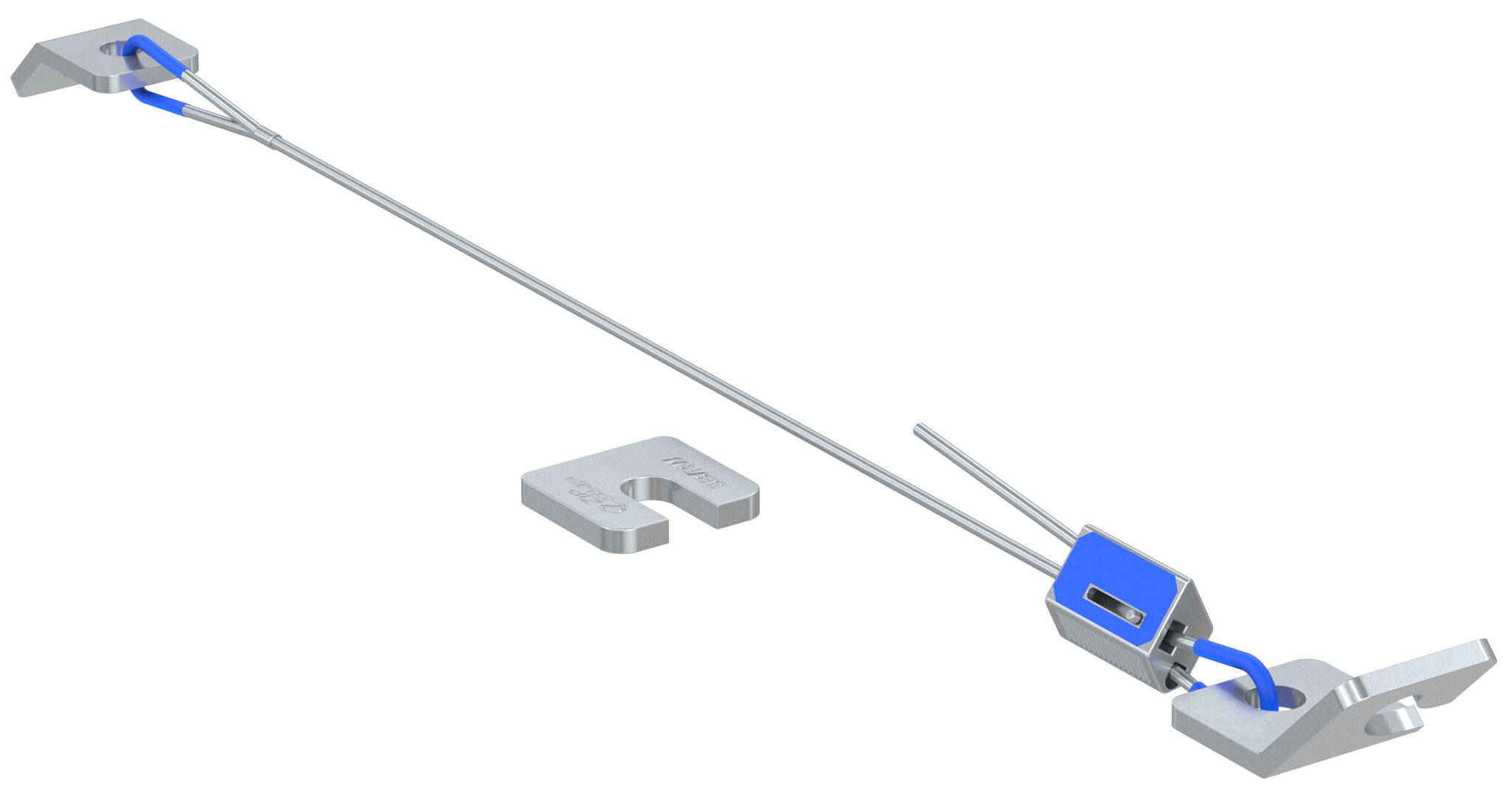

Seismic wire cable system FWI-S

The seismic wire cable system FWI-S is designed for fastening and securing installations in buildings. It offers an effective solution for securing installations from horizontal forces as a result of an earthquake. In addition, the FWI-S system can also be used to suspend installations of technical building equipment. The pre-assembled kits in lengths of 2, 3 or 5 m are equipped with all the necessary components to safely support existing installations or secure new installations. Three different wire cable diameters 2, 3 and 5 mm allow you to choose the right wire cable system for your load case. Color coding provides easy identification of the individual kits at any time during assembly and operation.

Product Variant

Download of image data

Product Variant

10 product variants

Wire-ø

Cable length

Diameter anchor bracket

Diameter retrofit bracket

Colour

Max. recommended load

Viewed 10 of 10 variant (s)

Advantages

The system protects installations from damage caused by horizontal forces.
The FWI-S wire cable system offers a safe and reliable method of bracing MEP installations to ensure their integrity during an earthquake.
The FWI-S wire cable system can minimise damage to installations, resulting in lower repair costs and downtime.
Easy installation thanks to pre-assembled sets in lengths of 2, 3 and 5 m.
The available wire cable diameters of 2, 3 or 5 mm provides the right kit for your load case.
Suitable for new buildings or for retrofitting. Each set has a retrofit plate that allows particularly easy installation into existing installations.
Each set has a type-specific color marking for identification on the construction site.

Properties

Material wire cable lock: zinc-diecasting (material no. 2.2140.05)
Material stamped and bent parts: steel (material no. 1.0038)
Material wire cable: steel (material no. 1.5122)
Material protective sleeve: PVC
Corrosion protection: zinc lamella coating

Applications

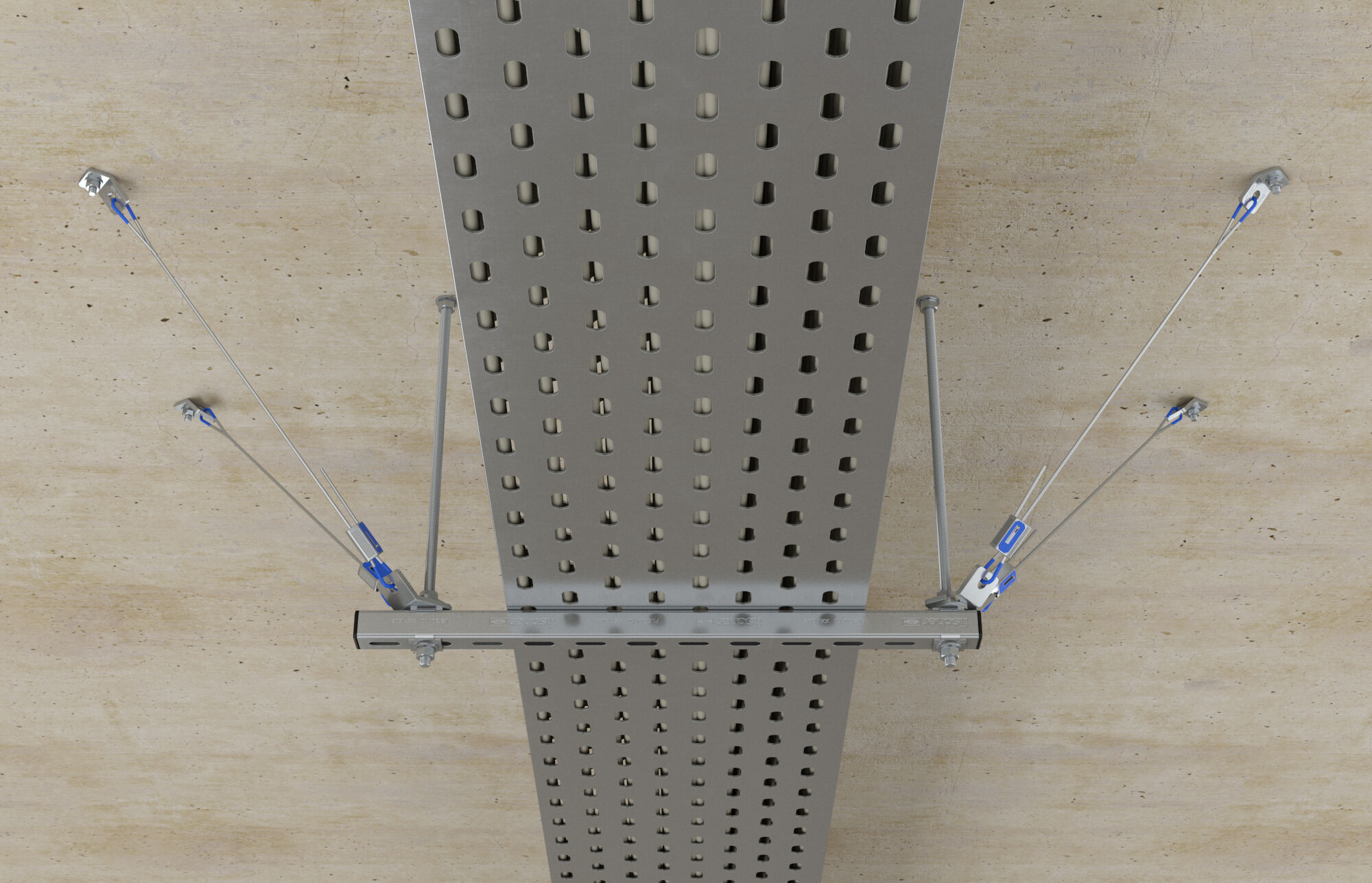

Securing installations in buildings in the event of an earthquake, such as electrical cable routes, mechanical systems, ventilation ducts, hydraulic pipes.
The FWI-S wire cable system ensures a safe transmission of the longitudinal and transversal forces into the subsurface and thus effectively prevents damage to installations.
Also ideal for retrofitting existing installations.
For use in dry interior areas.

Approval

TRA042990CC06
TRA042990CC07
TRA042990CC05

Wire-ø	2.0 mm
Cable length	2 m
Diameter anchor bracket ( A )	11 mm
Diameter retrofit bracket ( B )	13 mm
Colour	red
Max. recommended load ( N_rec )	1,4 kN
Contents	—
Amount	2 pcs
GTIN (EAN-Code)	4048962496642

Wire-ø	2.0 mm
Cable length	3 m
Diameter anchor bracket ( A )	11 mm
Diameter retrofit bracket ( B )	13 mm
Colour	red
Max. recommended load ( N_rec )	1,4 kN
Contents	—
Amount	2 pcs
GTIN (EAN-Code)	4048962496659

Wire-ø	2.0 mm
Cable length	5 m
Diameter anchor bracket ( A )	11 mm
Diameter retrofit bracket ( B )	13 mm
Colour	red
Max. recommended load ( N_rec )	1,4 kN
Contents	—
Amount	2 pcs
GTIN (EAN-Code)	4048962496666

Wire-ø	3.0 mm
Cable length	2 m
Diameter anchor bracket ( A )	11 mm
Diameter retrofit bracket ( B )	13 mm
Colour	blue
Max. recommended load ( N_rec )	3,7 kN
Contents	—
Amount	2 pcs
GTIN (EAN-Code)	4048962496673

Wire-ø	3.0 mm
Cable length	3 m
Diameter anchor bracket ( A )	11 mm
Diameter retrofit bracket ( B )	13 mm
Colour	blue
Max. recommended load ( N_rec )	3,7 kN
Contents	—
Amount	2 pcs
GTIN (EAN-Code)	4048962496680

Seismic wire cable system FWI-S

Product Variant

Your advantages / Product description

Application and approval

Assembly instruction

Documents for Downloading

Wire-ø	5.0 mm
Cable length	2 m
Diameter anchor bracket ( A )	13 mm
Diameter retrofit bracket ( B )	13 mm
Colour	green / yellow
Max. recommended load ( N_rec )	8,5 kN
Contents	—
Amount	2 pcs
GTIN (EAN-Code)	4048962496703
