Pipe clamp FRS inch

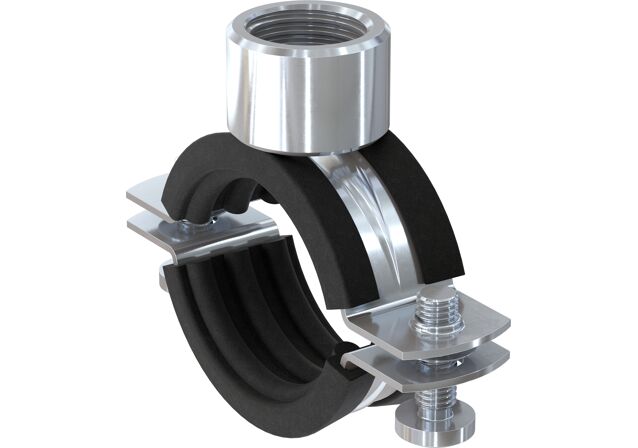

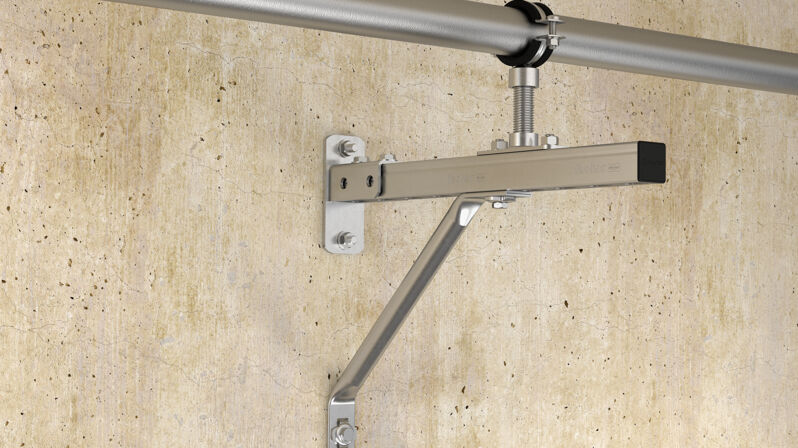

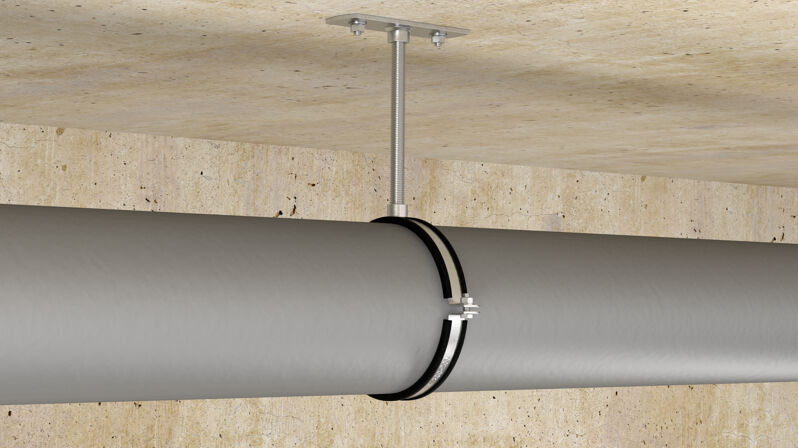

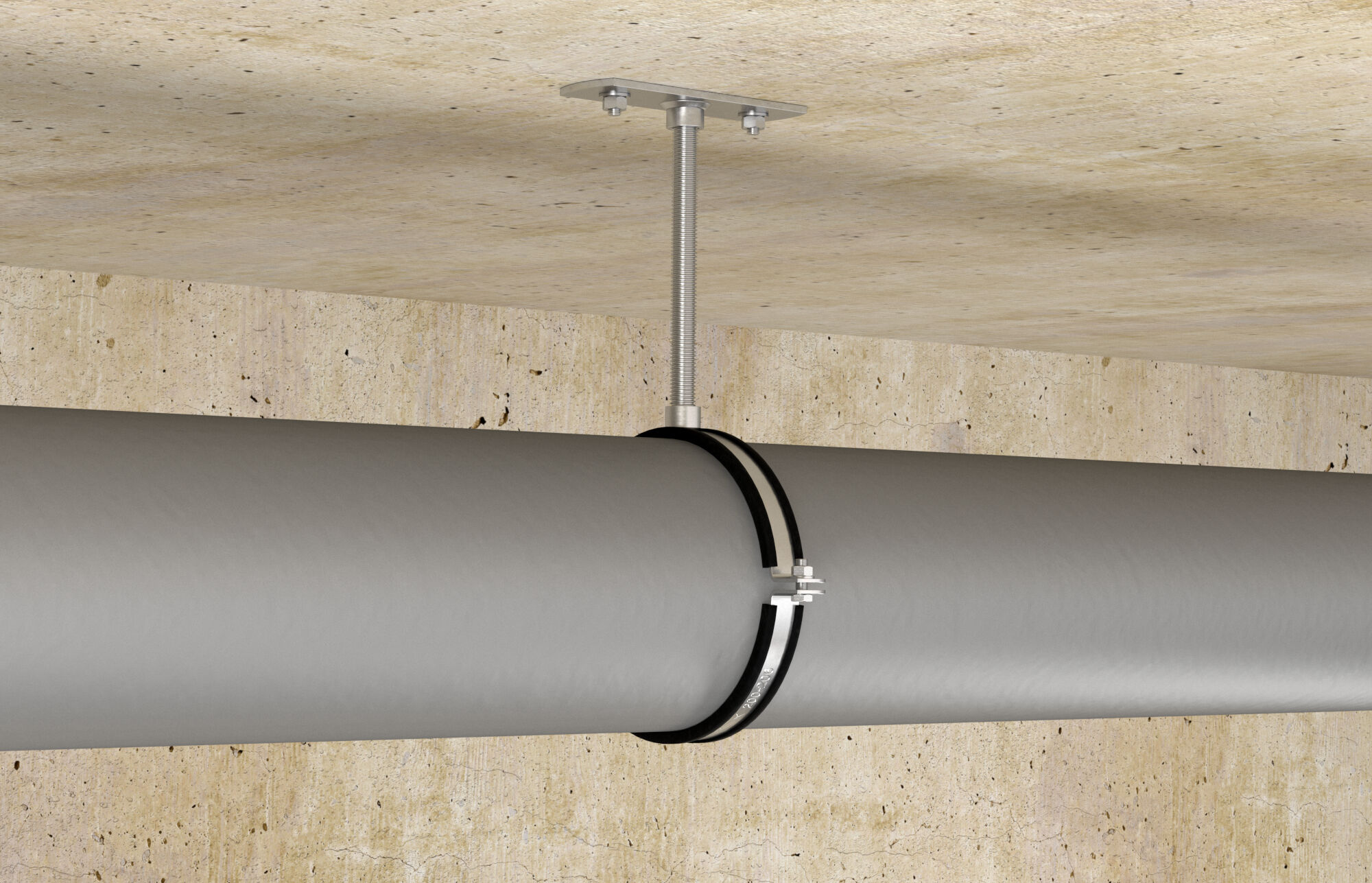

The fischer FRS inch pipe clamp is a two-screw pipe clamp with a 1/2" connection nut. The zinc-plated FRS inch is suitable for use in dry indoor spaces. The two-screw design allows an optimal adaptation to the pipes outer diameter. This allows pipes with an outer diameter of 15-219 mm to be securely fastened with a threaded pipe and base plate. Approval for civil defense shelters according to the Swiss directive allows for use in this application. Featuring a chlorine- and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. The fischer FRS inch is suitable for applications in a temperature range from -40 °C to +100 °C.

Product Variant

Download of image data

Product Variant

18 product variants

Thread

Size

Clamping range

Width

Height

Width x thickness clamp band

Viewed 18 of 18 variant (s)

Advantages

The inch thread connection nut enables pipe fastening with higher bending strength.
High tested loads guarantee the safe function of the FRS inch even in civil defense structures.
The sound insulation insert ensures sound reduction and prevents contact corrosion.
The two-screw design allows for optimal adaptation to the pipes outer diameter.
The screw loss protection ensures problem-free installation.

Properties

Material: Steel DC01 (1.0330)
Surface: Galvanised
Connection nut: 1/2" fillet weld on two sides
Locking screw: Flat head screw with combination Phillips, >ø168 mm screw and nut M8
Sound insulation insert material: EPDM; chlorine-free; silicone-free
Sound insulation: for DIN 4109
Temperature range: -40 °C to +100 °C
Hardness: 55 ± 5° Shore A
Reaction to fire: DIN 4102: Class B2

Thread ( A )	1/2"
Size	3/8 in
Clamping range ( D )	15 - 19 mm
Width ( B )	59 mm
Height ( H )	46 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( Z )	32 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,5 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962557404

Thread ( A )	1/2"
Size	1/2 in
Clamping range ( D )	20 - 23 mm
Width ( B )	65 mm
Height ( H )	54 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( Z )	40 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,5 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962557411

Thread ( A )	1/2"
Size	3/4 in
Clamping range ( D )	25-28 mm
Width ( B )	73 mm
Height ( H )	58 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( Z )	44 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,5 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962557428

Thread ( A )	1/2"
Size	1 in
Clamping range ( D )	32 - 35 mm
Width ( B )	77 mm
Height ( H )	35 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( Z )	51 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,5 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962557435

Thread ( A )	1/2"
Size	1 1/4 in
Clamping range ( D )	40 - 43 mm
Width ( B )	89 mm
Height ( H )	74 mm
Width x thickness clamp band ( b x s )	20 x 1.5 mm
Height ( Z )	60 mm
Locking screw	M6
Max. recom. static load (centr. tension) ( N_rec )	1,5 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962557442
