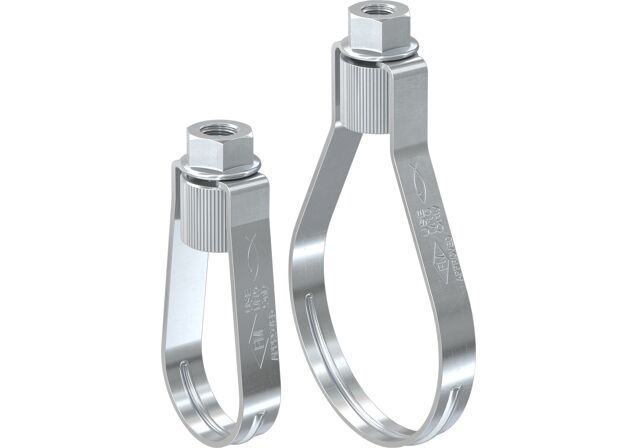

Sprinkler loop hanger FRLH - fischer international

Product Variant

18 product variants

FM approval

VdS approval

Size

Thread

Clamping range

Height

Height

Width x thickness clamp band

Max. recom. static load (centr. tension)

Amount

GTIN (EAN-Code)

FM approval	—
VdS approval	Yes
Size	1/2 in
Thread( A )	M8
Clamping range( D )	21.3 mm
Height( H )	76 mm
Height( Z )	64 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504071

FM approval	—
VdS approval	Yes
Size	3/4 in
Thread( A )	M8
Clamping range( D )	26.9 mm
Height( H )	80 mm
Height( Z )	65 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504088

FM approval	—
VdS approval	Yes
Size	1 in
Thread( A )	M8
Clamping range( D )	33.7 mm
Height( H )	83 mm
Height( Z )	65 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504101

FM approval	—
VdS approval	Yes
Size	1 1/4 in
Thread( A )	M8
Clamping range( D )	42.4 mm
Height( H )	88 mm
Height( Z )	65 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504125

FM approval	—
VdS approval	Yes
Size	1 1/2 in
Thread( A )	M8
Clamping range( D )	48.3 mm
Height( H )	96 mm
Height( Z )	70 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504149

FM approval	—
VdS approval	Yes
Size	2 in
Thread( A )	M8
Clamping range( D )	60.3 mm
Height( H )	112 mm
Height( Z )	80 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504163

FM approval	Yes
VdS approval	Yes
Size	3/4 in
Thread( A )	M10
Clamping range( D )	26.9 mm
Height( H )	82 mm
Height( Z )	67 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504095

FM approval	Yes
VdS approval	Yes
Size	1 in
Thread( A )	M10
Clamping range( D )	33.7 mm
Height( H )	85 mm
Height( Z )	67 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504118

FM approval	Yes
VdS approval	Yes
Size	1 1/4 in
Thread( A )	M10
Clamping range( D )	42.4 mm
Height( H )	90 mm
Height( Z )	67 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504132

FM approval	Yes
VdS approval	Yes
Size	1 1/2 in
Thread( A )	M10
Clamping range( D )	48.3 mm
Height( H )	98 mm
Height( Z )	72 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504156

FM approval	Yes
VdS approval	Yes
Size	2 in
Thread( A )	M10
Clamping range( D )	60.3 mm
Height( H )	114 mm
Height( Z )	82 mm
Width x thickness clamp band( b x s )	12 x 1.5 mm
Max. recom. static load (centr. tension)( N_rec )	4 kN
Amount	50 pcs
GTIN (EAN-Code)	4048962504170

FM approval	Yes
VdS approval	Yes
Size	2 1/2 in
Thread( A )	M10
Clamping range( D )	76.1 mm
Height( H )	140 mm
Height( Z )	99 mm
Width x thickness clamp band( b x s )	15 x 2,5 mm
Max. recom. static load (centr. tension)( N_rec )	6 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962504187

FM approval	Yes
VdS approval	Yes
Size	3 in
Thread( A )	M10
Clamping range( D )	88.9 mm
Height( H )	161 mm
Height( Z )	114 mm
Width x thickness clamp band( b x s )	15 x 2,5 mm
Max. recom. static load (centr. tension)( N_rec )	6 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962504194

FM approval	Yes
VdS approval	Yes
Size	4 in
Thread( A )	M10
Clamping range( D )	114.3 mm
Height( H )	205 mm
Height( Z )	145 mm
Width x thickness clamp band( b x s )	15 x 2,5 mm
Max. recom. static load (centr. tension)( N_rec )	6 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962504200

FM approval	Yes
VdS approval	Yes
Size	5 in
Thread( A )	M12
Clamping range( D )	139.7 mm
Height( H )	235 mm
Height( Z )	163 mm
Width x thickness clamp band( b x s )	15 x 2,5 mm
Max. recom. static load (centr. tension)( N_rec )	8 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962504217

FM approval	Yes
VdS approval	Yes
Size	6 in
Thread( A )	M12
Clamping range( D )	168.3 mm
Height( H )	287 mm
Height( Z )	200 mm
Width x thickness clamp band( b x s )	15 x 2,5 mm
Max. recom. static load (centr. tension)( N_rec )	8 kN
Amount	25 pcs
GTIN (EAN-Code)	4048962504224

FM approval	Yes
VdS approval	Yes
Size	8 in
Thread( A )	M16
Clamping range( D )	219.1 mm
Height( H )	364 mm
Height( Z )	252 mm
Width x thickness clamp band( b x s )	20 x 2.5 mm
Max. recom. static load (centr. tension)( N_rec )	10 kN
Amount	10 pcs
GTIN (EAN-Code)	4048962504231

FM approval	—
VdS approval	Yes
Size	10 in
Thread( A )	M20
Clamping range( D )	273 mm
Height( H )	470 mm
Height( Z )	330 mm
Width x thickness clamp band( b x s )	20 x 3,0 mm
Max. recom. static load (centr. tension)( N_rec )	11 kN
Amount	1 pcs
GTIN (EAN-Code)	4048962504248

Viewed 18 of 18 variant (s)

Advantages

The VdS and FM approval guarantees objectively tested safety for use in sprinkler systems.
The regulating nut as a connection nut enables easy subsequent height adjustment of the cables.

Properties

Material sprinkler loop: steel DX51D+Z140MA acc. to DIN EN 10364/10143
Zinc plating: sendzimir galvanised
Material regulating nut: steel 11SMnPb37 (material no. 1.0737), acc. to DIN EN 10087
Zinc plating: electro zinc-plated
