fischer Fixed point saddle heavy FFS-H

Name: fischer Fixed point saddle heavy FFS-H
Brand: fischer

Product Variant

Download of image data

Top Features

Height adjustment possible.
Mounting of the fixed point solid clamp FFSC and Refrigeration fixed point clamp FFRC.
Varying or unknown force directions possible.
Recommended pipe dimension ≤ 355,6 mm.

FAZ II Plus 12/10 ZP
FFPC 76.1
FFPC 88.9
FFRC 88.9
FFRC 114.3

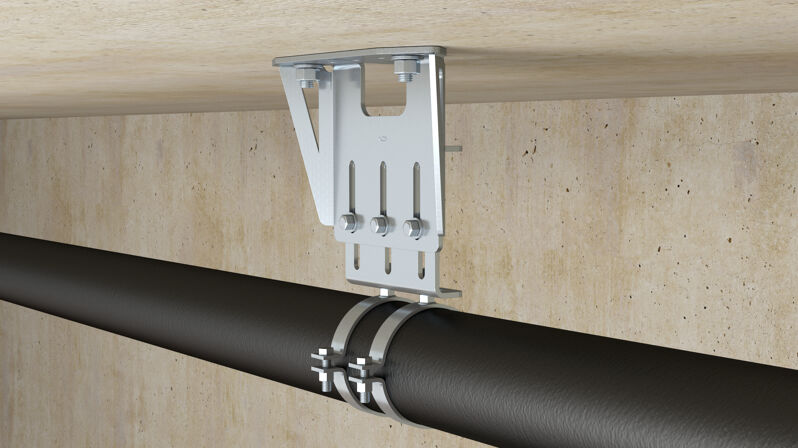

The fixed point solution for heavy loads

Advantages

The massive design of the fixed point and the massive subsoil connection allow the absorption of high loads for a stable and secure connection.
The fixed points consist of components with matching thread sizes and plug holes, thus ensuring easy assembly with the same tools.
The height adjustment of the fixed point allows for precise adjustment to match mounted pipelines and therefore ensures the safe function of the anchor point.
The fixed point is suitable for mounting the FFSC fixed point solid clamp and FFRC Refrigeration fixed point clamp for even more flexibility.

The heavy fixed points in compact design prevent undesired movements between pipes and structures in hot- or cold-running pipelines and align the thermally induced pipe expansion in the desired direction. The compact fixed points FFS-H reliably transfer the incoming forces directly into the structure and are height-adjustable. The galvanized version is suitable for installations in buildings.

Properties

Material: Steel
Bolts and nuts: Strength class 8
Zinc plating: galvanised steel
Thermal capacity: -30 °C to +300 °C

Max. recom. pipe-ø	355.6
Min. construction height ( H )	210 mm
Max. construction height ( H )	310 mm
Max. recom. axial load ( F _{x rec.} )	14 kN
Length ( L )	325 mm
Width ( B )	130 mm
Thickness ( S )	6 mm
Installation torque ( T_inst )	80 Nm
Amount	2 pcs
GTIN (EAN-Code)	4048962494921
