The solid fixed point clamp with load-optimized clamp band

Fixed point solid clamp FFPC

Name: Fixed point solid clamp FFPC
Brand: fischer

The fischer fixed point solid clamp FFPC with load-optimized clamp band is suitable for aligning thermally induced pipe expansions in the desired direction for all hot-running pipelines and prevents undesired displacements. The FFPC fixed point clamp can be mounted on the fixed point saddles FFS-M or FFS-H as well as on the braced fixed points FFP. The galvanized steel version is suitable for installations in buildings.

Product Variant

Download of image data

Product Variant

26 product variants

Thread

Size

Clamping range

Width

Height

Width x thickness clamp band

More results

Viewed 18 of 26 variant (s)

Advantages

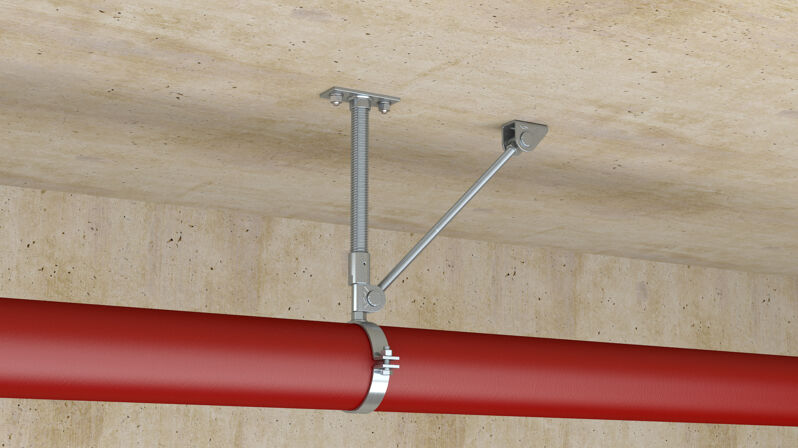

The use of the fixed point solid clamp FFPC with the fixed point saddles FFS or the braced fixed points FFP allows a wide range of applications.
The high load level due to the matching clamp band allows optimized adjustment of the fixing distances.
The range of FFPC allows the fixing of pipes from 21 mm to 355 mm in diameter.

Properties

Material: steel
Bolts and nuts: strength class 8
Zinc plating: galvanised steel
Thermal capacity: -30 °C to +300 °C

Thread ( A )	M16
Size	1/2 in
Clamping range ( D )	21 mm
Width ( B )	91,7 mm
Height ( H )	45,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480313

Thread ( A )	M16
Size	3/4 in
Clamping range ( D )	27 mm
Width ( B )	97,7 mm
Height ( H )	51,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480320

Thread ( A )	M16
Size	—
Clamping range ( D )	28 mm
Width ( B )	98,7 mm
Height ( H )	52,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480337

Thread ( A )	M16
Size	—
Clamping range ( D )	31 mm
Width ( B )	101,7 mm
Height ( H )	55,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480344

Thread ( A )	M16
Size	1 in
Clamping range ( D )	34 mm
Width ( B )	104,7 mm
Height ( H )	58,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480351

Fixed point solid clamp FFPC

Product Variant

Your advantages / Product description

Application and approval

Documents for Downloading

Thread ( A )	M16
Size	1 1/4 in
Clamping range ( D )	43 mm
Width ( B )	113,7 mm
Height ( H )	67,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480375

Thread ( A )	M16
Size	1 1/2 in
Clamping range ( D )	49 mm
Width ( B )	119,7 mm
Height ( H )	73,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480382

Thread ( A )	M16
Size	2 in
Clamping range ( D )	61 mm
Width ( B )	131,7 mm
Height ( H )	85,4 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480405

Thread ( A )	M16
Size	2 1/2 in
Clamping range ( D )	76.1 mm
Width ( B )	158,2 mm
Height ( H )	104,5 mm
Width x thickness clamp band ( b x s )	40 x 6.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480436

Thread ( A )	M16
Size	3 in
Clamping range ( D )	88.9 mm
Width ( B )	171 mm
Height ( H )	117,3 mm
Width x thickness clamp band ( b x s )	40 x 6.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480443

Thread ( A )	M16
Size	4 in
Clamping range ( D )	114.3 mm
Width ( B )	196,4 mm
Height ( H )	142,7 mm
Width x thickness clamp band ( b x s )	40 x 6.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480467

Thread ( A )	M16
Size	5 in
Clamping range ( D )	139.7 mm
Width ( B )	221,8 mm
Height ( H )	168,1 mm
Width x thickness clamp band ( b x s )	40 x 6.0 mm
Locking screw	M16
Tightening torque ( T_inst )	60 Nm
Amount	2 pcs.
GTIN (EAN-Code)	4048962480481
