Construction element - Saddle flange PSF

Saddle flange PSF

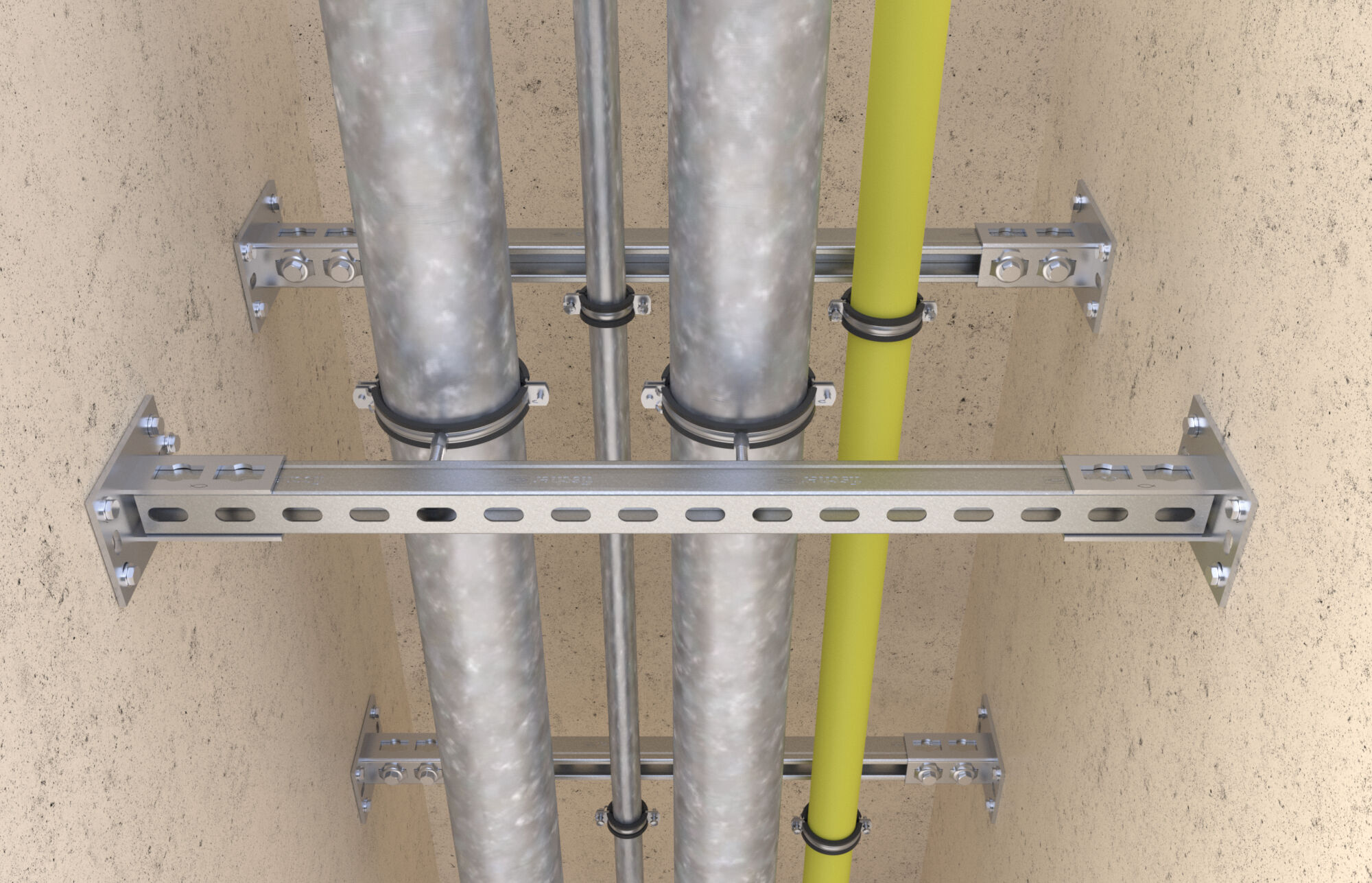

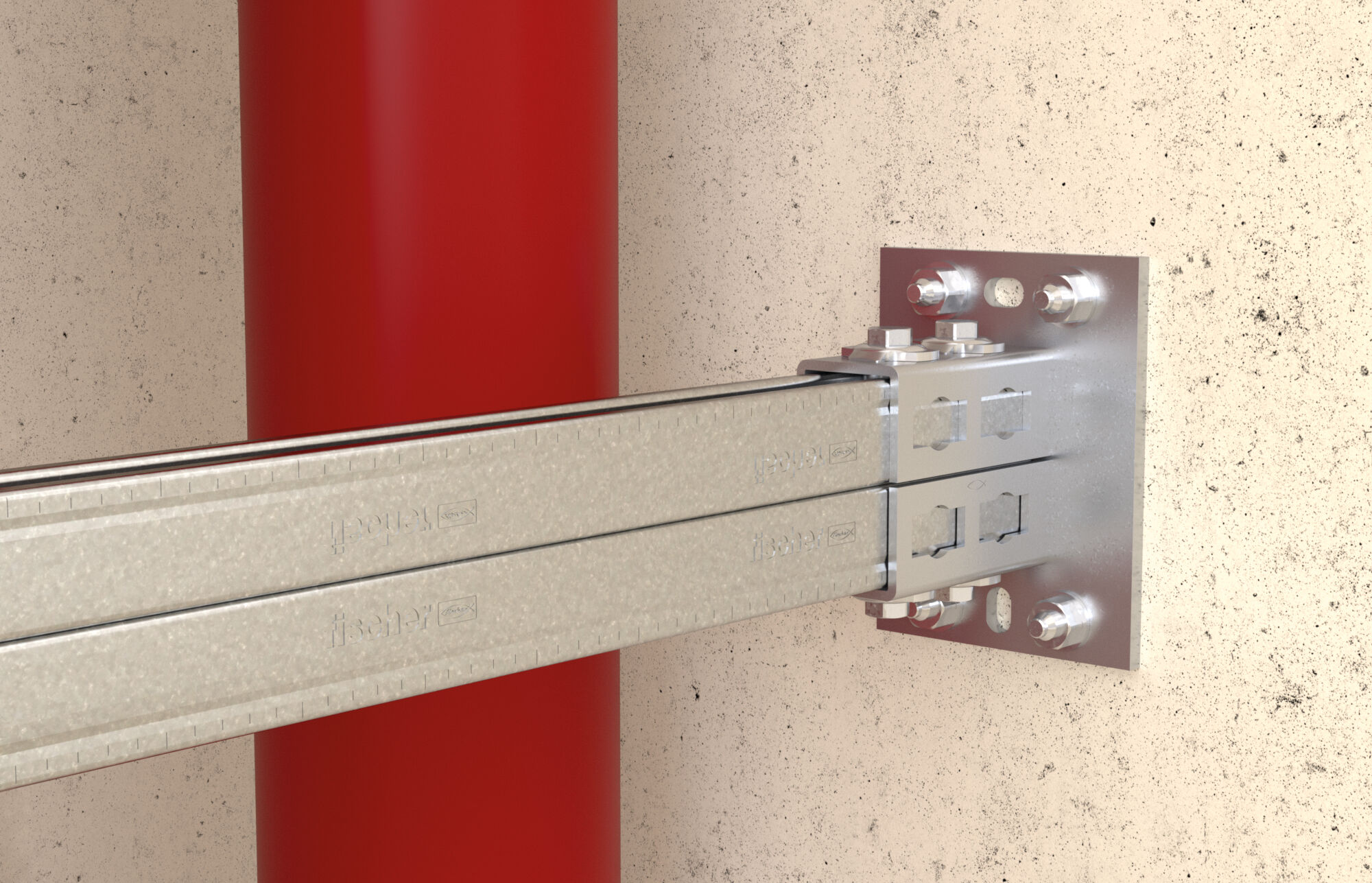

The fischer saddle flange PSF creates stable connections between fischer mounting rails FUS and the building structure. The saddle flange connects the rails with the substrate at a 90° angle using the fischer push-through connector PFCN. The guidance on at least three sides ensures a form fit with the mounting rails FUS and a perfect fit for the insertion of the push-through connector. fischer offers a transverse version and three sizes in the standard design. The robust base plate and the slots, angled at 90°, make fixing easier. The galvanised zinc design is suitable for installations in buildings, the hot-dip galvanised or zinc flake surface coating and stainless steel designs are suitable for installations outside and in highly corrosive environments.
Product VariantDownload of image data

Product Variant

11 product variants
For profile
Max. recommended tension load for FUS 2,0 mm
Max. recommended tension load for FUS 2,5 mm
Max. recommended shear load
Viewed 11 of 11 variant (s)

Your advantages / Product description

Application and approval
