Variable bracing element FYJB for bracing and suspending installation grids made of FUS channel profiles.

Bracing element FYJB

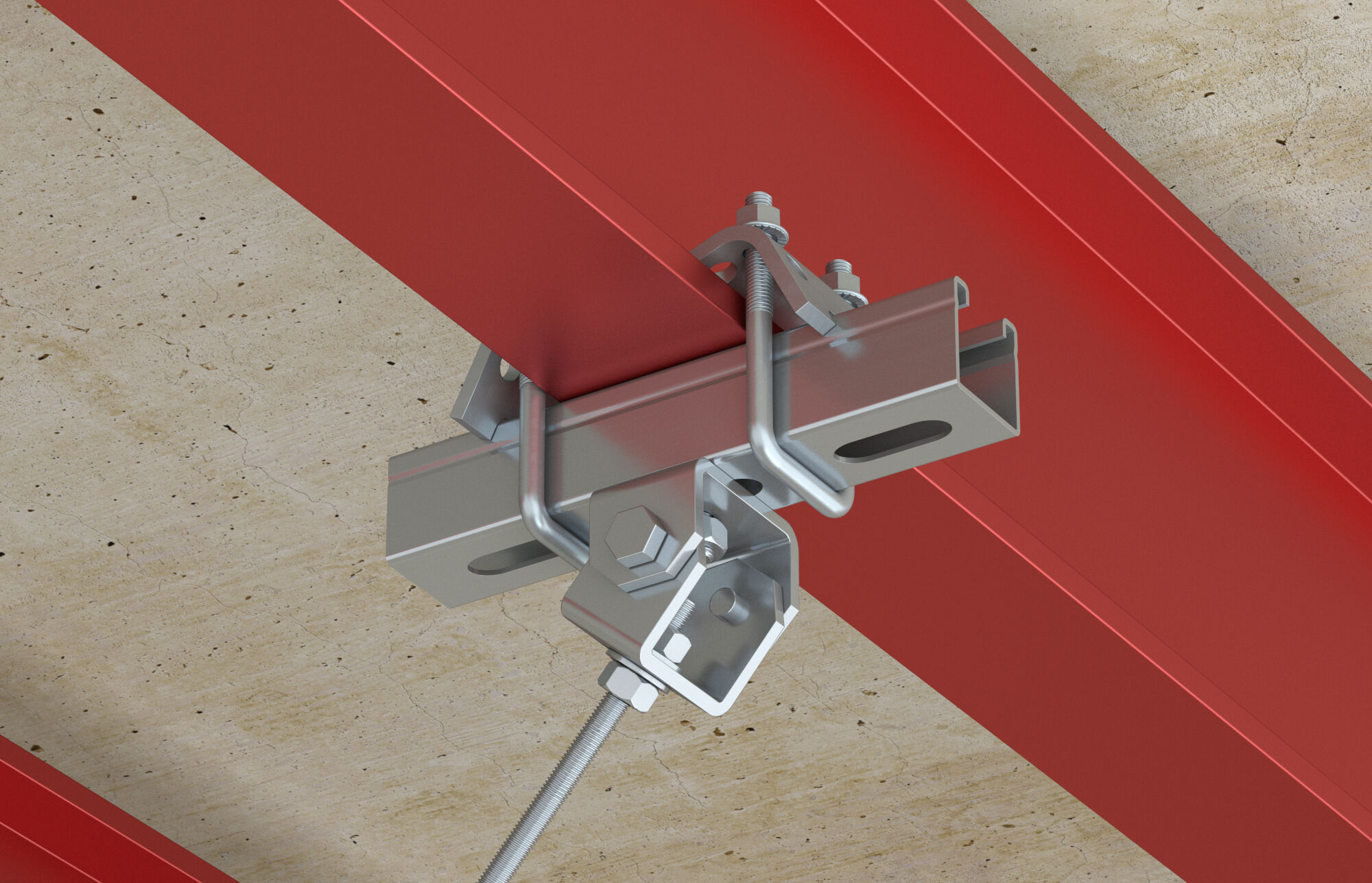

The bracing element FYJB enables simple suspension and tensioning of installation grids based on FUS channel profiles to the steel structure. The FYJB was deliberately designed so that it can be used regardless of the position of the steel girders and the fixing point on the installation grid. This is made possible by the movable fork heads, which can be freely aligned. In conjunction with our turnbuckle SPS, this also provides a simple height adjustment option for aligning the installation grid.

Product Variant

Download of image data

Product Variant

1 product variants

Thread

Max. recom. load FYJB

Max. recom. load FYJB with FUH13, TKR 82, and FUS 62 profile

Amount

GTIN (EAN-Code)

Viewed 1 of 1 variant (s)

Advantages

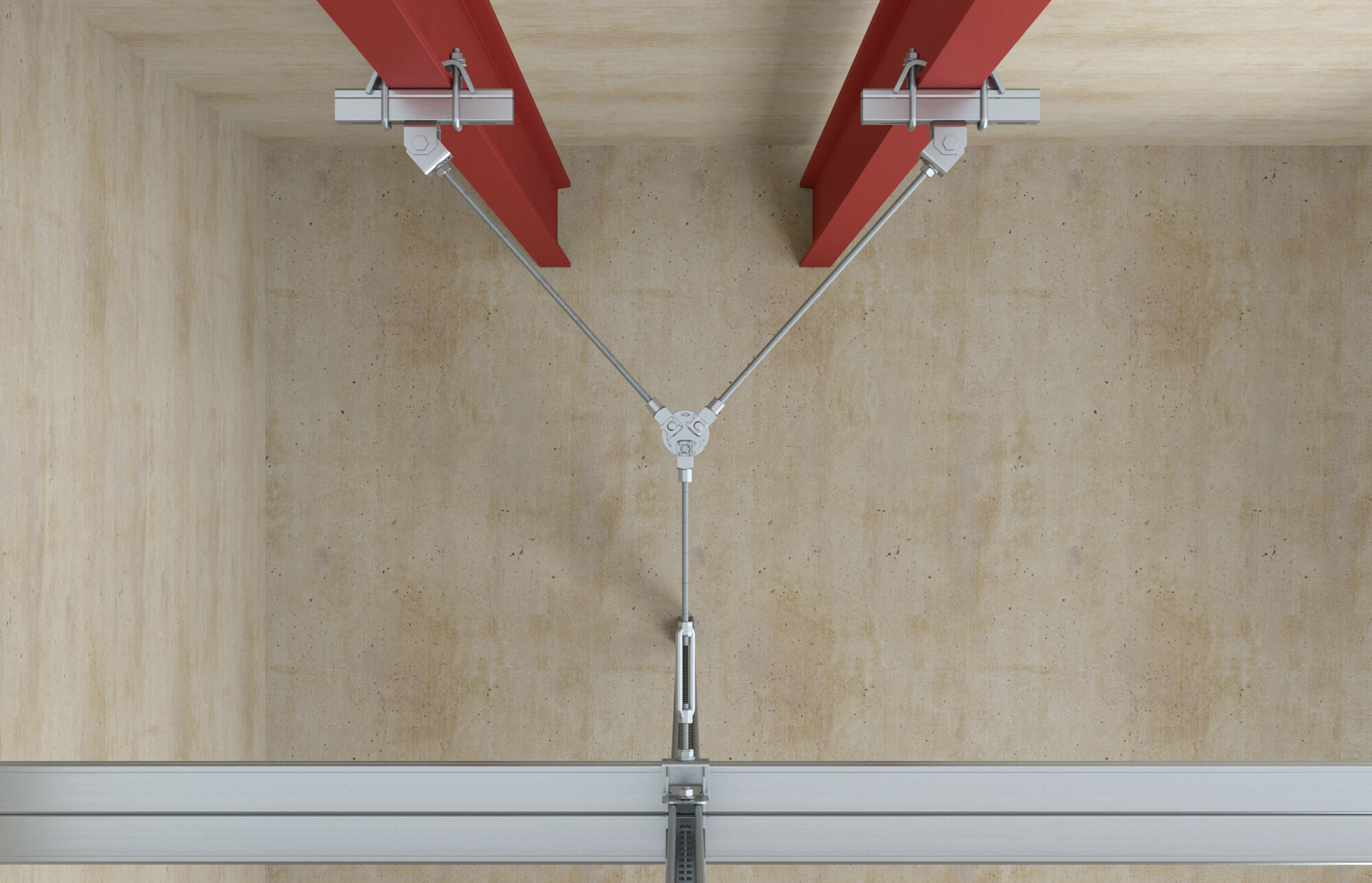

The design of the FYJB bracing element allows bracing at any angle using ordinary threaded rods.
In conjunction with the SPS turnbuckle, the FYJB bracing element enables height adjustment and thus an easy way to align FUS channel systems, especially installation grids, horizontally.
High stability thanks to robust construction to accommodate high loads.
Optimal addition to our cross connectors FVS for setting up an installation grid in production halls, warehouses or comparable buildings.

Properties

Material round plate and bolt: steel S235JR (material no. 1.0038)
Material clevises: steel 11SMnPb30+C (material no. 1.0718)
Material pin lock: spring steel
Zinc plating: electro zinc-plated

Thread ( A )	M12
Max. recom. load FYJB ( F_rec )	13 kN
Max. recom. load FYJB with FUH13, TKR 82, and FUS 62 profile ( F_rec )	10 kN
Amount	10 pcs
GTIN (EAN-Code)	4048962493962
