Bracing bracket for easy reinforcement of channel constructions

Bracing bracket FTRB 45

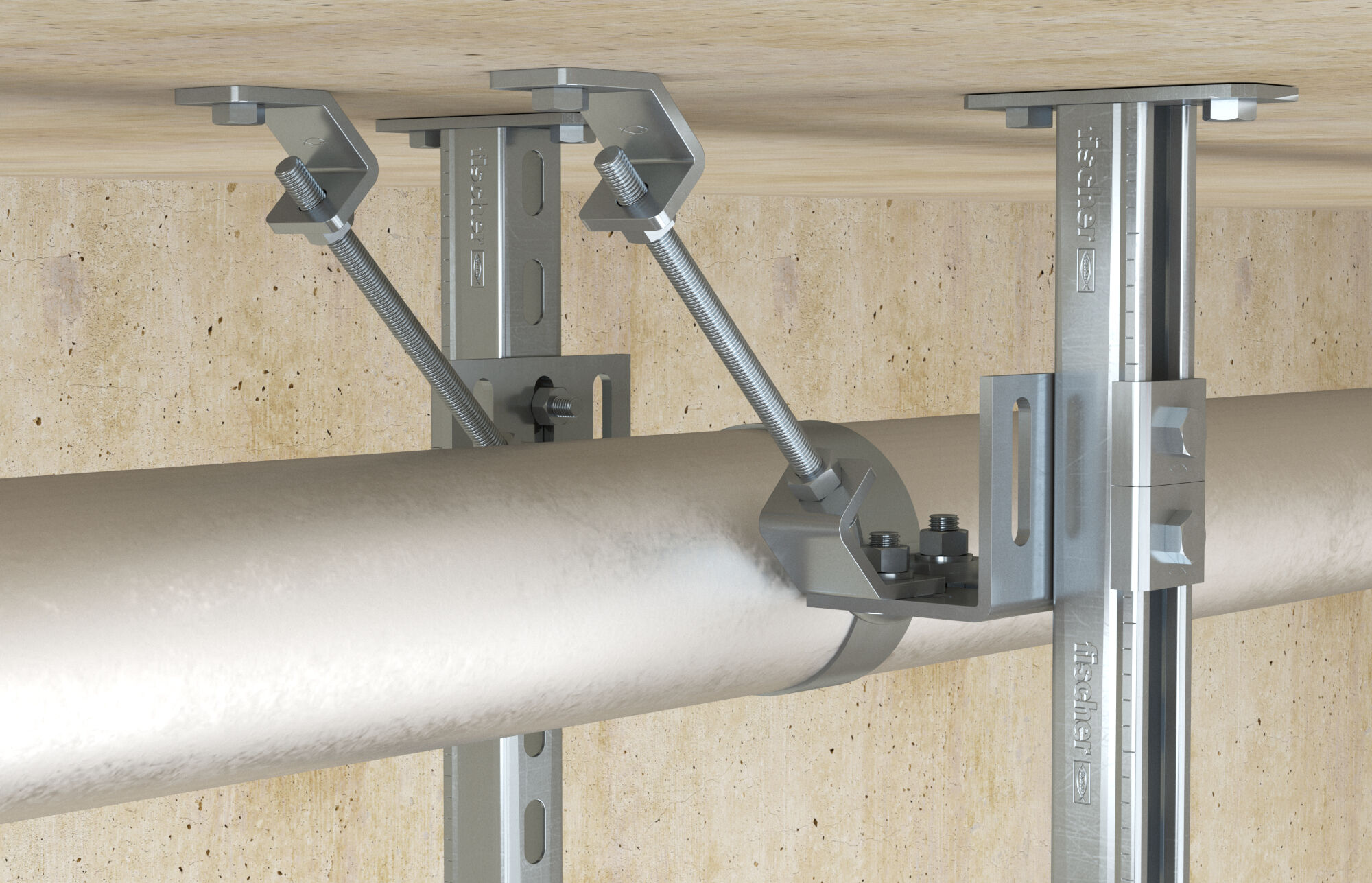

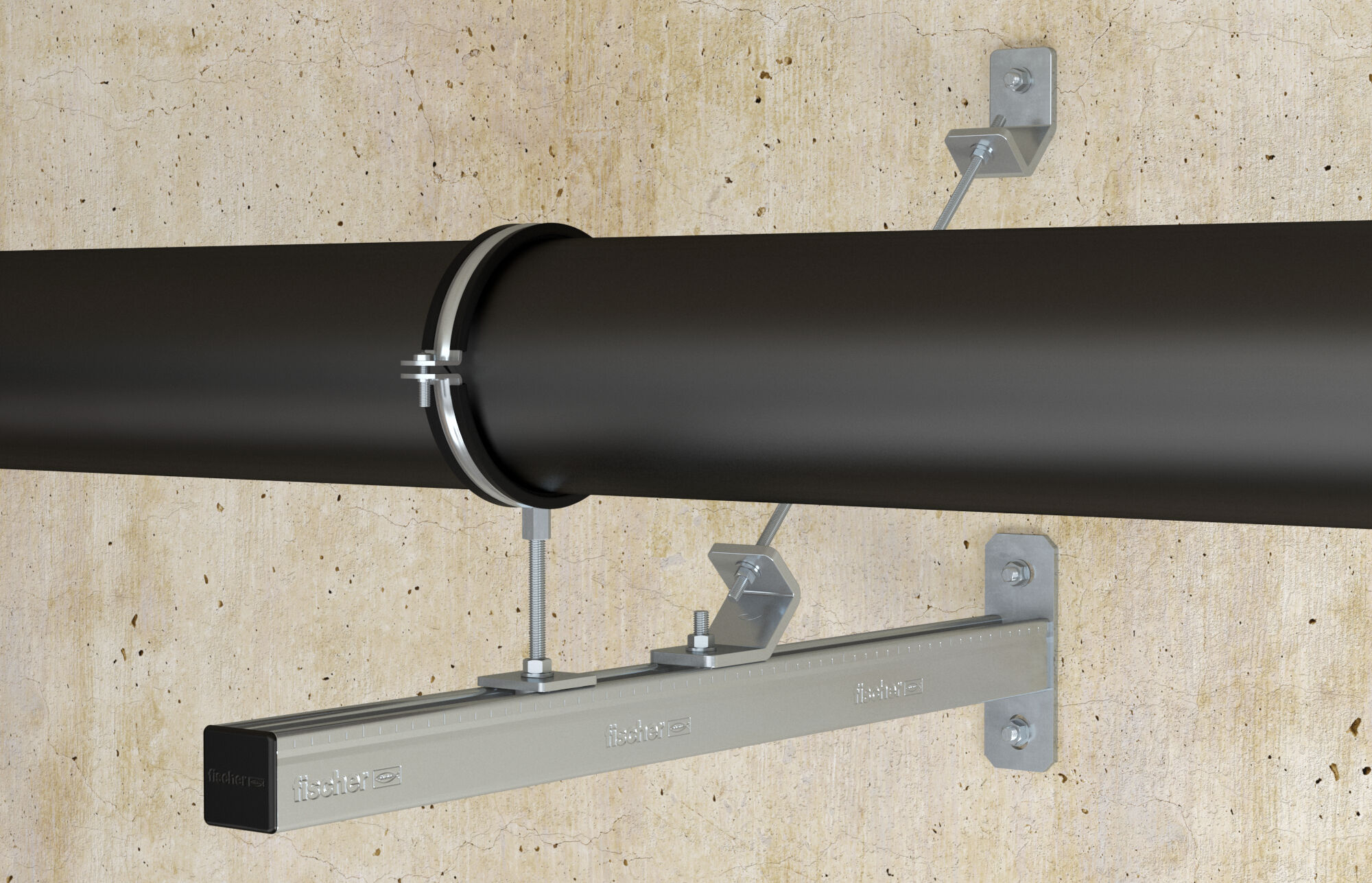

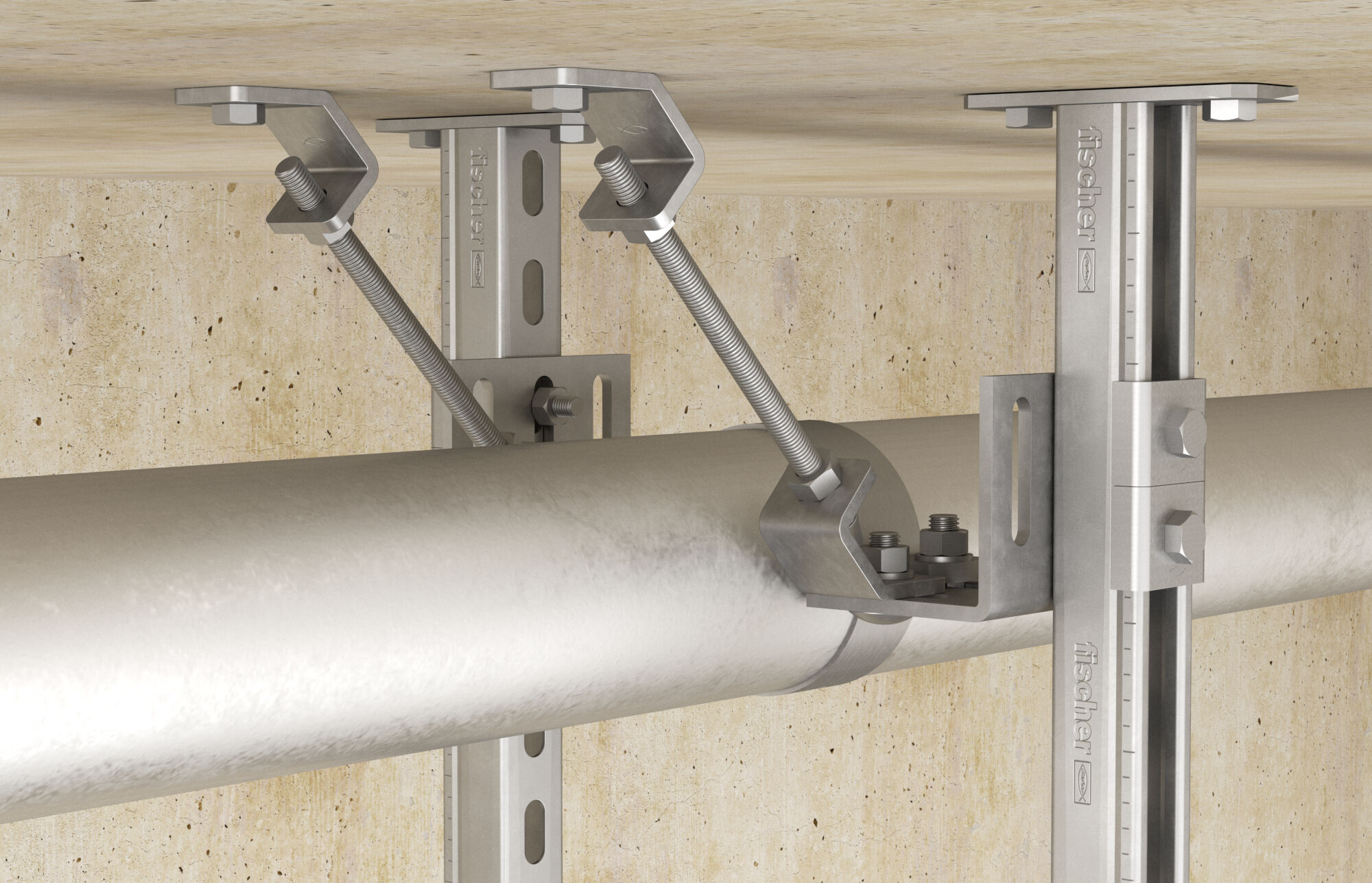

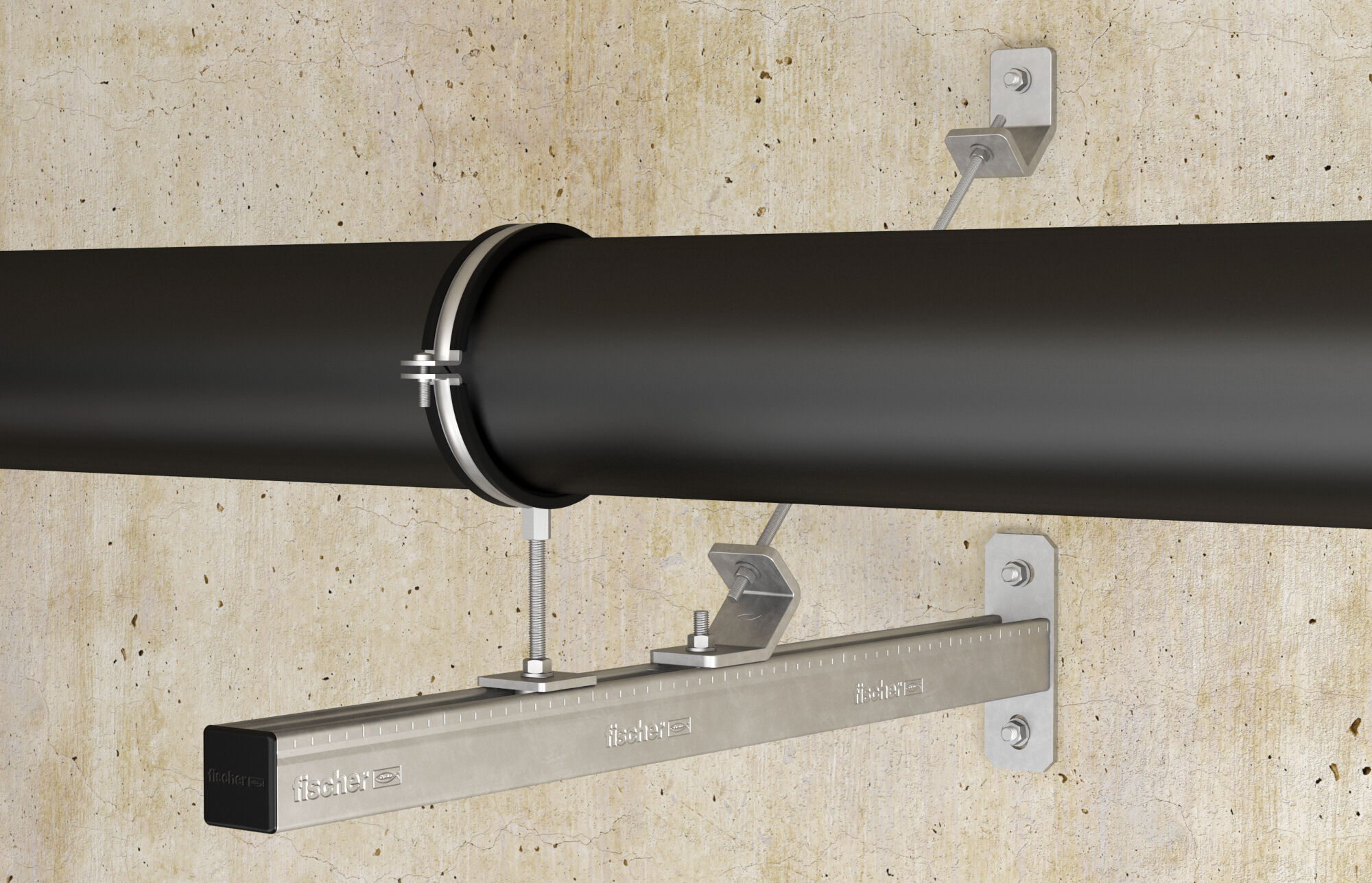

The fischer FTRB 45 bracing element is a 45° element for bracing the fischer FUS installation channels to the subsurface with threaded rods. The bracing element is mounted to the fischer FUS installation channels with an M12 screw and the FCN Clix P12 sliding nut. The bracing is achieved using an M12 threaded rod and M12 hexagon nuts. The holes in the base FTRB 45 allow it to be attached directly to the wall or ceiling or to an installation channel. The version with an electro zinc-plating surface is suitable for indoor use. The version with a hot-dip galvanised surface is suitable for indoor and outdoor use.
Product VariantDownload of image data

Product Variant

2 Product variant (s)
Amount
GTIN (EAN-Code)
Viewed 2 of 2 variant (s)

Your advantages / Product description

Application and approval
