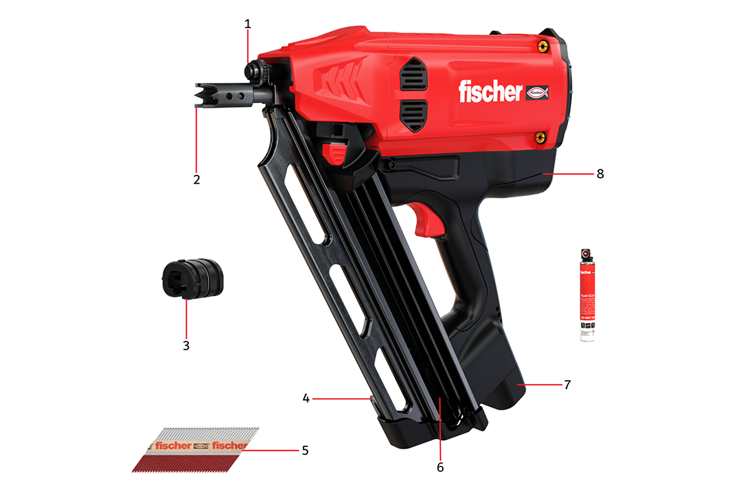

Gas Actuated Fastening Tool


1. Easy and tool free nail depth adjustment for various applications.

2. High-grip nose for optimized working precision.

3. Possibility to use the protective cap to protect the timber surface in visible areas.

4. Adjustable hook for use as a belt or rafter hook.

5. Wide range of ring and smooth shank nails (50-90mm length) for various applications with a maximum capacity of 60 nails.

6. Quick push load magazine for easy nail insertion. Suitable for D-headed and full head nails. The safety clip prevents the nails from falling out and ensures safe reinsertion.

7. Powerful, rechargeable battery with Lithium-Ion power. Battery LED status display for high productivity with more than 8,000 fixings per charge.

8. High performance gas fuel cell, which operates down to -15°C with more than 1,100 fixings per fuel cell.

fischer FGW 90
Quick and easy fastening in wood.

Advantages at a glance:

Adjustable hook for the use as belt or a rafter hook to ensure safe storage of the tool when not in use.
An easy nail depth adjustment wheel allows to choose how to set the nails – flush or fully embedded for various applications.
In case the battery starts to run out, a 10 minute charge allows you to shoot at least another 300 nails. To fully charge the battery it takes 90 minutes (under standard conditions).
Increased productivity due to the powerful rechargeable battery with Li-Ion power that enables more than 8,000 fixings with one charge (under standard conditions) and is also compatible with the FGC 100. The battery-LED displays the remaining battery power and the status of the tool, preventing a standstill on site.
The 95 joules power of the fischer gas actuated fastening tool FGW 90F ensures correct penetration into the working surface. The rate of fire of up to 2-3 fixings per second increases the productivity.
The FGW 90F has a long life capacity and durability with service intervals after every 30,000 fixings (following manufacturers cleaning guide).
The FGW 90F is delivered in the strong, robust XL-BOXX.
The wide range of nails provides a perfect match for solid wood, laminated timber, plywood as well as chipboard, fiberboard and veneer materials.


The fischer wood nailer FGW 90F should be cleaned regularly. For this purpose, fischer offers the appropriate cleaning set.

If you need assistance with maintenance or if the tool has a defect, please contact the fischer service department. You can find all information on the service procedure here.


For optimum installation, the tool must be positioned correctly on the working surface.
The fischer gas actuated fastening tool is suitable for a fast and reliable installation of e.g. wood framing or roof battens.
The tool has a weight of 3.8kg and has the following dimensions:                                                                                            L 390 mm x W 108 mm x H 381 mm.
The tool will operate within the temperature range of -7°C to +50°C.

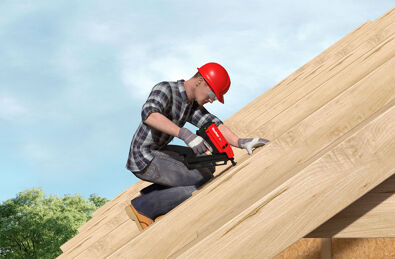

Timber Framing

For fast and reliable fixing in timber framing.

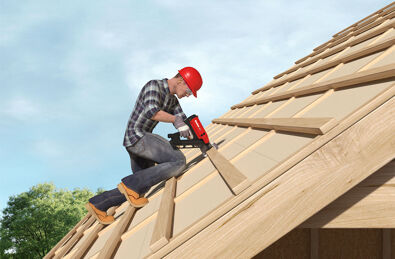

Roof Battens

The ability to fix in fast frequency of up to 3 nails per second enables to get the work done quickly.

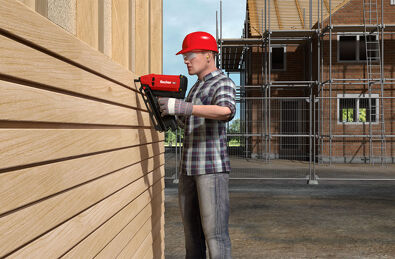

External Cladding

Protective cap to protect timber surfaces in visible areas e.g. external cladding.

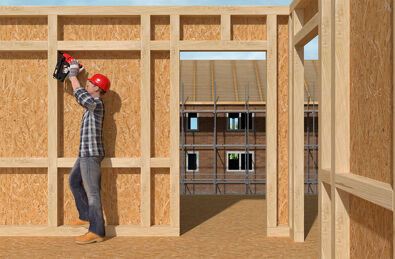

Stud Work

The FGW 90F has a perfect balance for overhead applications


Easy and exact nail depth adjustments for various applications.

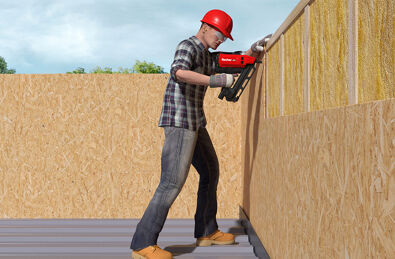

Over Boarding

The FGW 90F is suitable for panelling of OSB boards.

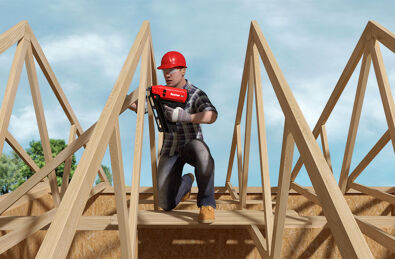

Truss Work

High-grip nose for optimum precision while working.

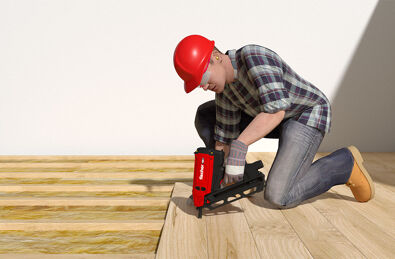

For fixing boards to floors.


The FGW 90F is suitable for numerous applications.
