fischer Frame fixing SXRL 8 x 120 T zinc-plated steel

Name: fischer Frame fixing SXRL 8 x 120 T zinc-plated steel
Brand: fischer

Product Variant

Download of image data

Top Features

ETA assessment with excellent load values: Safe multiple fixings of non-structural systems in concrete and masonry.
The long expansion element makes the SXRL versatile.
Loads are applied evenly to the building material thanks to the fixing geometry. This means that the fillets are not destroyed in the case of thin-walled building materials.
Simple to assemble: Ribs prevent plug rotation during installation.

The versatile with multiple anchorage depth

Advantages

The long expansion element with multiple anchorage depths of 50, 70 and 90 mm for SXRL 8 and SXRL 10 and 70 and 90 mm for SXRL 14 makes the SXRL an extremely versatile product.
Through the special geometry of the plug, the retention forces are evenly distributed in the drill hole.
The approval for single-point fixing in cracked concrete makes the SXRL the designated specialist in concrete particularly for tasks such as the installation of awning roofs and outdoor railings compared to steel anchors.
When it is to be set deep, the longer ribs prevent the plug from turning during installation.
SXRL 10 and 14 are additionally approved for applications that are subject to pressure and may be used for façade structures that are installed without wall bracket with a spacing.
The SXRL with effective lengths up to 290 mm provides the right plug for every application.

The fischer frame fixing SXRL-T is approved along with the fischer countersunk head screw with TX drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material. The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings in internal areas such as windows, coat racks, wall cupboards, or TV consoles.

Applications

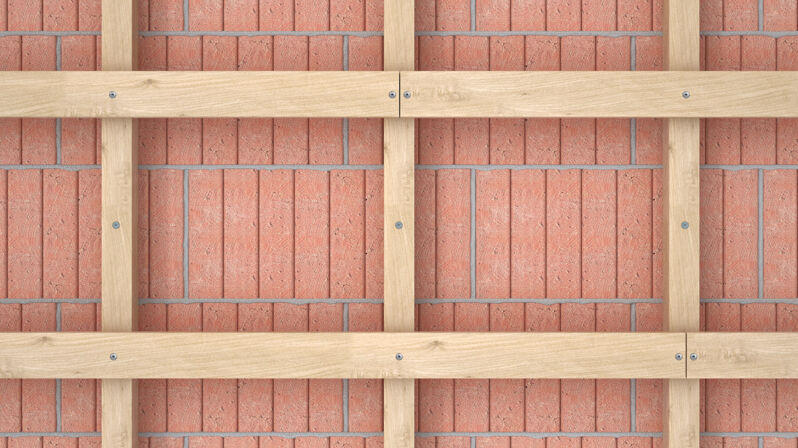

Façade, ceiling and roof substructures made of wood and metal
Facade substructures under compression load (e.g. distance installation without a wall bracket)
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams

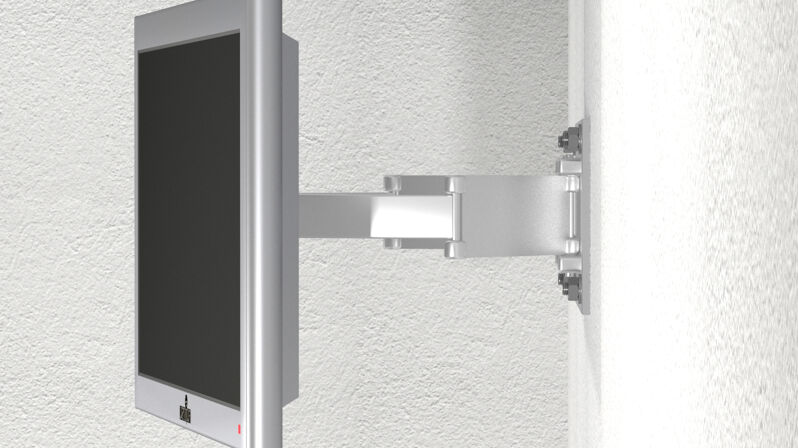

TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Approved for:

Vertically perforated brick
Aerated concrete
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Thermal insulation blocks
Solid block made from lightweight and normal weight concrete
Solid brick
Solid sand-lime brick
Concrete ≥ C12/15

Suitable for:

Natural stone with dense structure
Solid panel made from gypsum

You can find detailed information on building materials in the approval document.

Approval

ETA-07/0121
DoP No. 0329

Functionality

The SXRL is suitable for push-through installation.

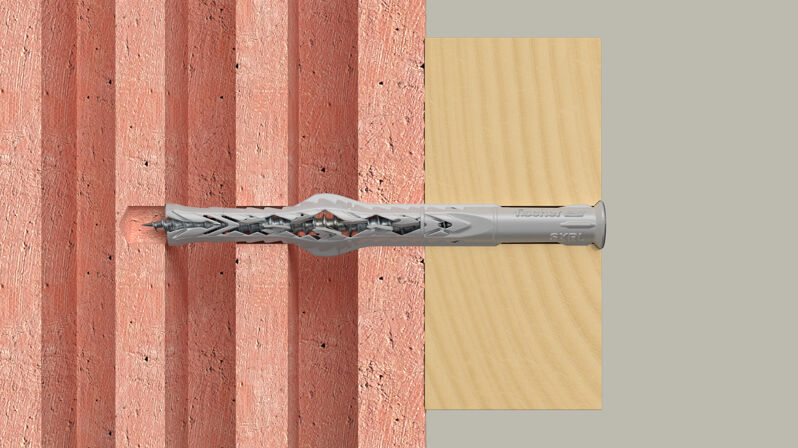

In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones. The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force.
In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate.
Recommended for the fixing of wood constructions
For metal constructions, plugs with a wide sleeve rim and hexagonal screws with moulded washers are recommended.

Installation SXRL

1 / 5

ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	120 mm
Min. drill hole depth for through fixings ( h₂ )	130 mm
Usable length at anchorage depth 50 mm ( t_fix )	70 mm
Usable length at anchorage depth 70 mm ( t_fix )	50 mm
Usable length at anchorage depth 90 mm ( t_fix )	30 mm
Drive	TX30
Contents	10 x Frame fixing SXRL 8 x 120 T
Packaging	Polybag
Amount	10 pcs
GTIN (EAN-Code)	4048962314656
