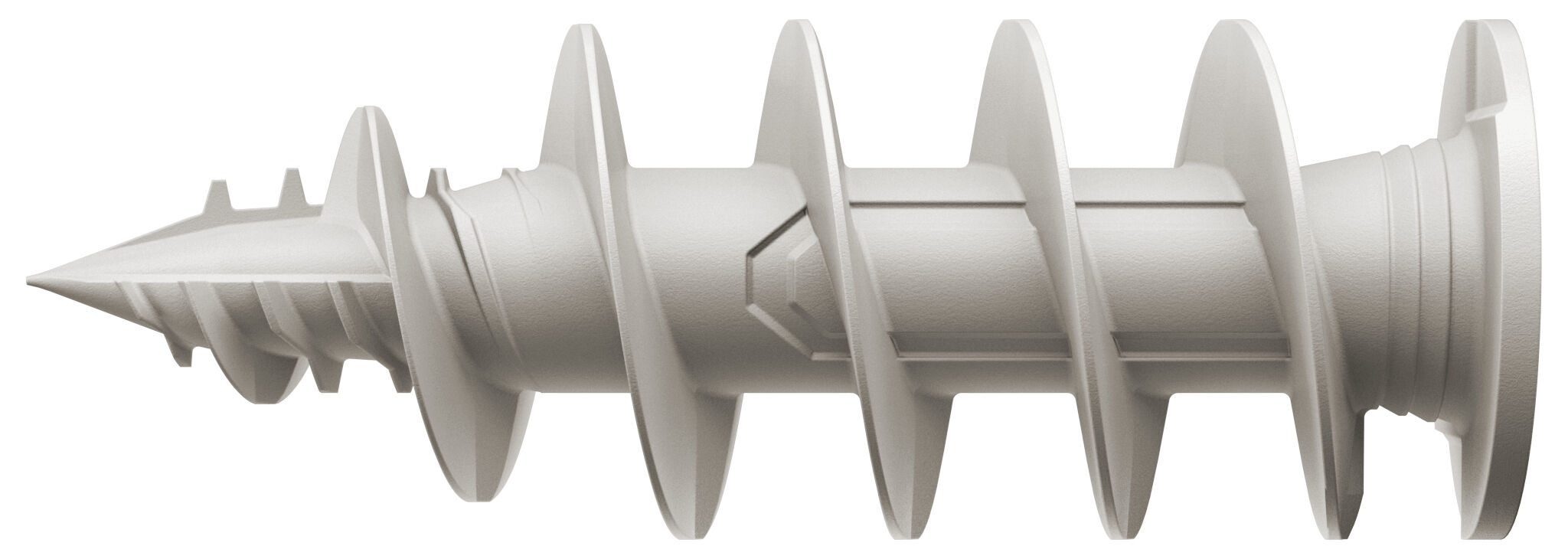

fischer Insulation fixing FID II

Name: fischer Insulation fixing FID II
Brand: fischer

Warianty produktu

Download of image data

Top Features

Flexible use with screws of 3.5 - 4.5 mm diameter
Clean setting result thanks to special underhead geometry
Time-saving without pre-drilling in thin plaster layers
Invisible fixing of smallest attachments due to minimal head diameter
Universal use in all insulation materials

The insulation plug for lightweight attachments to the ETICS.

Advantages

The use of standard screws with a diameter of 3.5 - 4.5 mm allows flexible use.
Maximum stability due to glass fibre reinforced plastic.
Due to the minimal head diameter, the plug edge is not visible even with narrow attachments.
Due to the special tip geometry, the plug screws through plaster thicknesses of up to 10 mm without pre-drilling, which enables a fast processing.
The FID II is easily set with a standard TX40 bit.
The fischer insulation plug enables an universal use in all common insulation materials.

The fischer FID II insulation plug is suitable for fixing lightweight attachments to external thermal insulation composite systems. Thanks to the combined centering, milling and cutting function of the plug tip, the FID II can be screwed in with pinpoint accuracy. The small head diameter in combination with the anchor's underhead milling pockets ensure a perfectly concealed and surface-flush setting result. The FID II is particularly suitable for fixing lightweight attachments such as outdoor lamps, house numbers or doorbells to the ETICS.

Anchor length ( l )	50 mm
Anchor head diameter ( D )	18 mm
Min. bolt penetration ( l_E,min )	15 mm
Max. bolt penetration ( l_E,max )	35 mm
Wood and chipboard screws ( d_s )	3.5 - 4.5 mm
Drive	TX40
Contents	4 x Insulation fixing FID II
Packaging	Blister card
Amount	4 pcs
GTIN (EAN-Code)	4048962504866
