Effective ventilated fire barrier designed to close the void between the inner and outer construction elements

VentiStop Cavity Barrier - FFB-VS

Name: VentiStop Cavity Barrier - FFB-VS
Brand: fischer

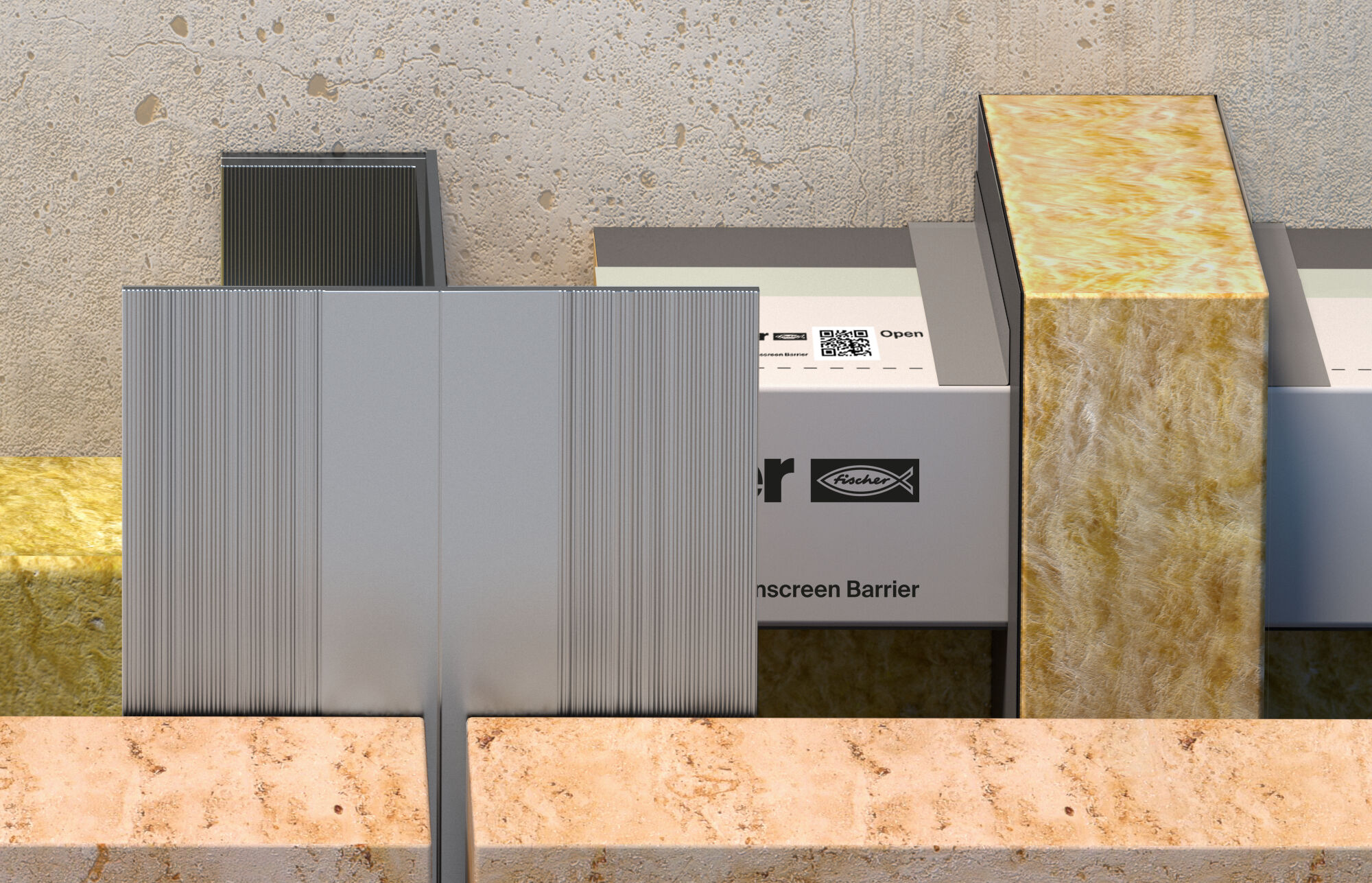

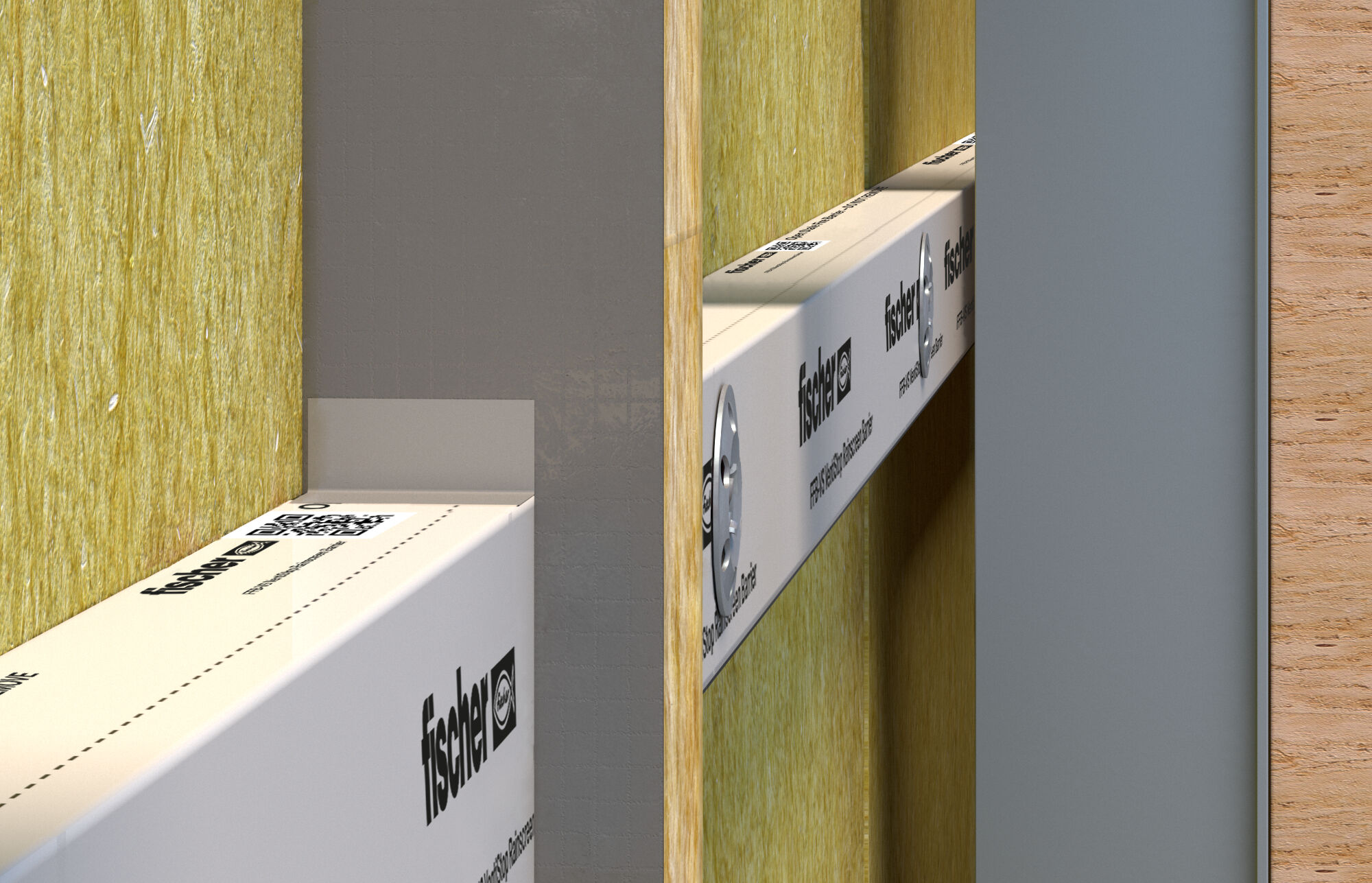

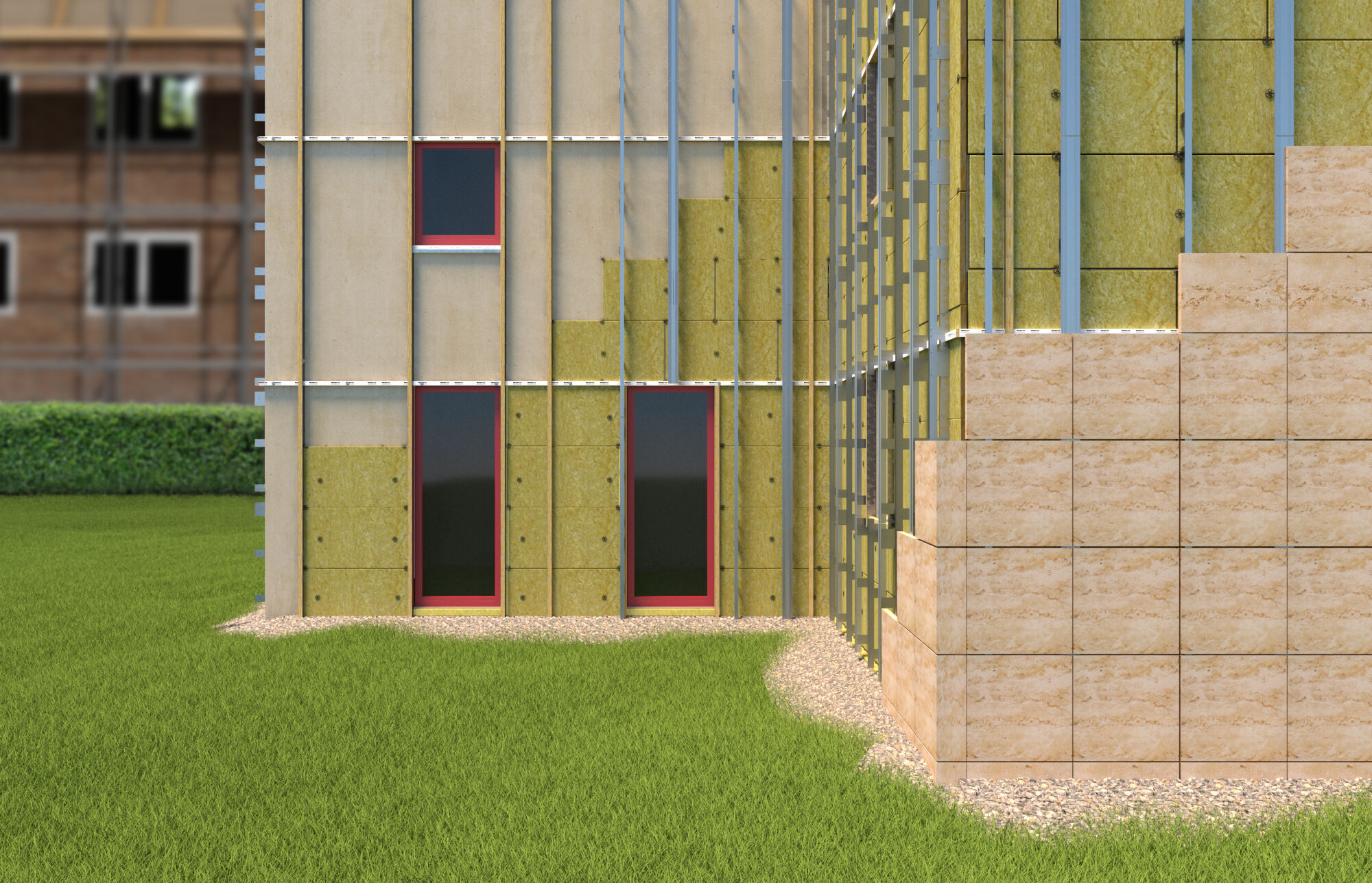

FFB-VS a foil-faced stone wool pre-cut unit, which has a powerful intumescent graphite strip bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress. FFB-VS has been designed to provide a 25 and 50 mm ventilation gap, that allows air flow and moisture to pass down the back of the cladding. Under fire conditions, the powerful intumescent along the front edge expands horizontally to close the gap and prevent the passage of fire.

Product Variant

Download of image data

Product Variant

17 product variants

To suit cavity void width

Colour

Amount

GTIN (EAN-Code)

Viewed 17 of 17 variant (s)

Advantages

Tested up to 120 minutes integrity and 90 minutes insulation (120 min insulation with FFB-VS HP80) utilising the heating and pressure conditions of EN 1363-1: 2017 and ASFP TGD19: 2014 - Open State Cavity Barriers.
Suitable to close 25 & 50 mm ventilation gap
Voids up to 450 mm wide
Free of halogens, asbestos, fi bres and silica and is non-toxic
Long life expectancy
Contributes to green building

Functionality

FFB-VS a foil-faced stone wool pre-cut unit, which has a powerful intumescent graphite strip bonded to the exposed face. The intumescent graphite strip is pre-wrapped with a durable polythene adhesive sheet to prevent water ingress.
FFB-VS has been designed to provide a 25 & 50 mm ventilation gap, that allows air fl ow and moisture to pass down the back of the cladding. Under fire conditions, the powerful intumescent along the front edge expands horizontally to close the gap and prevent the passage of fire.

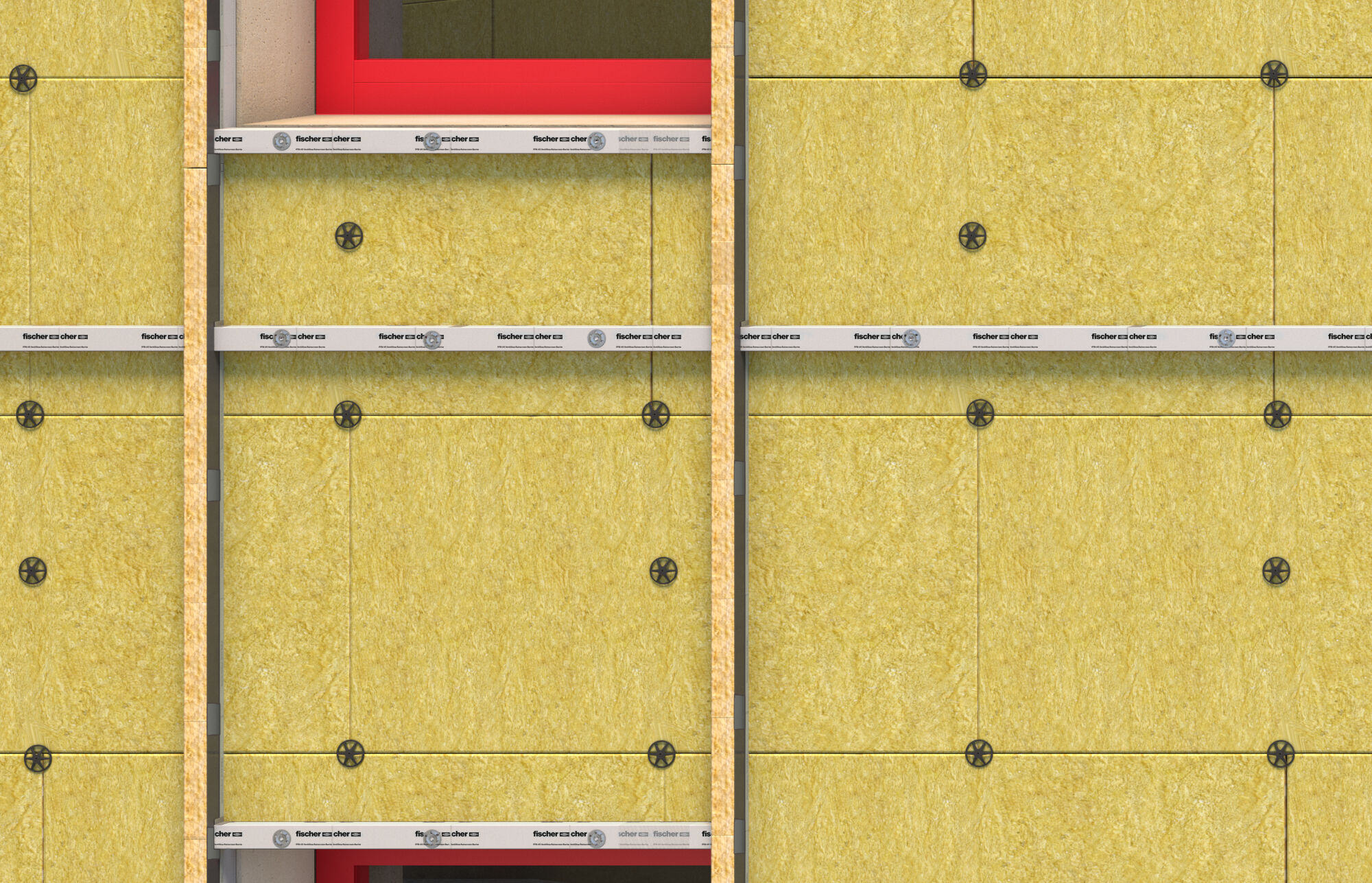

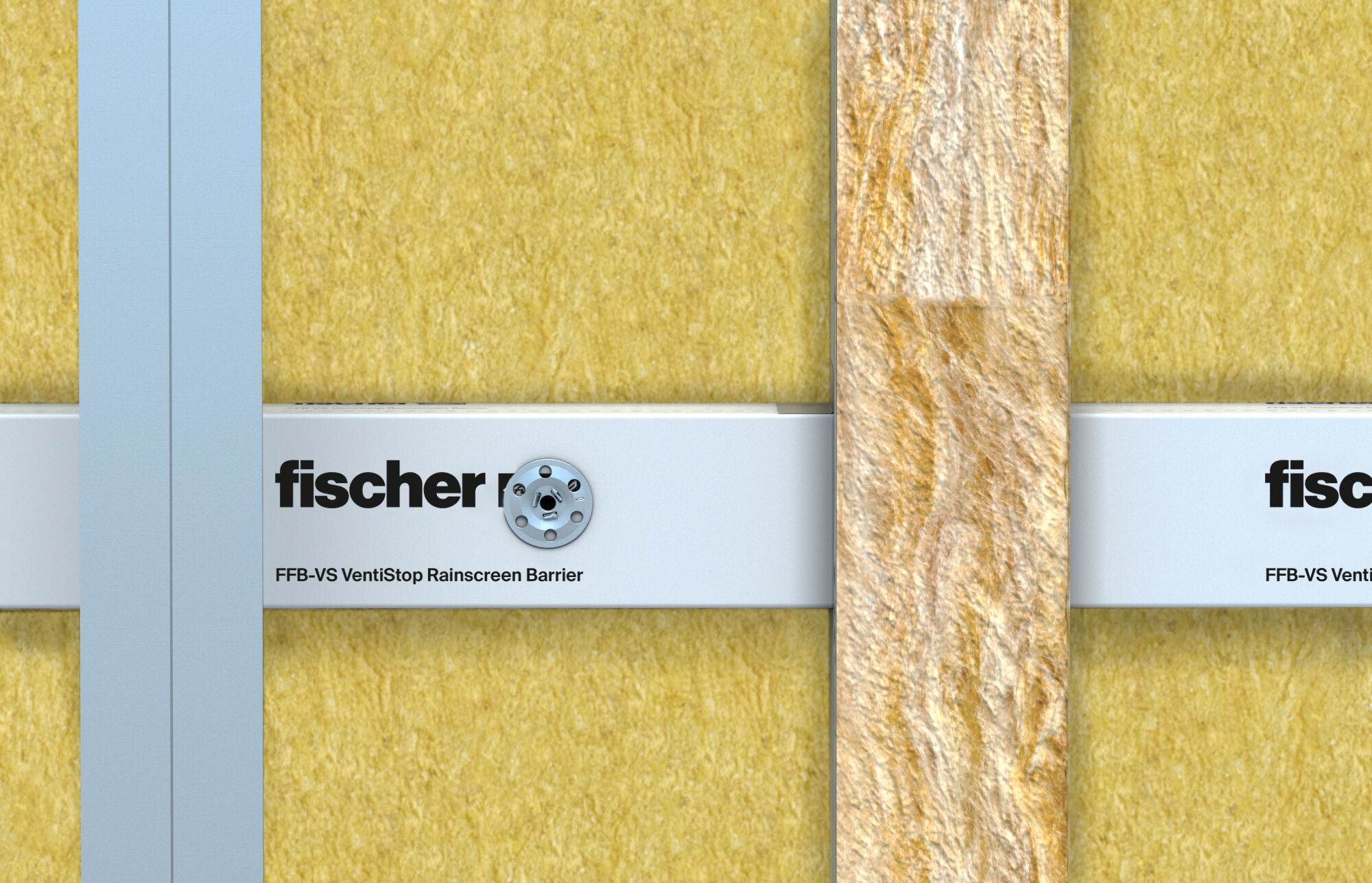

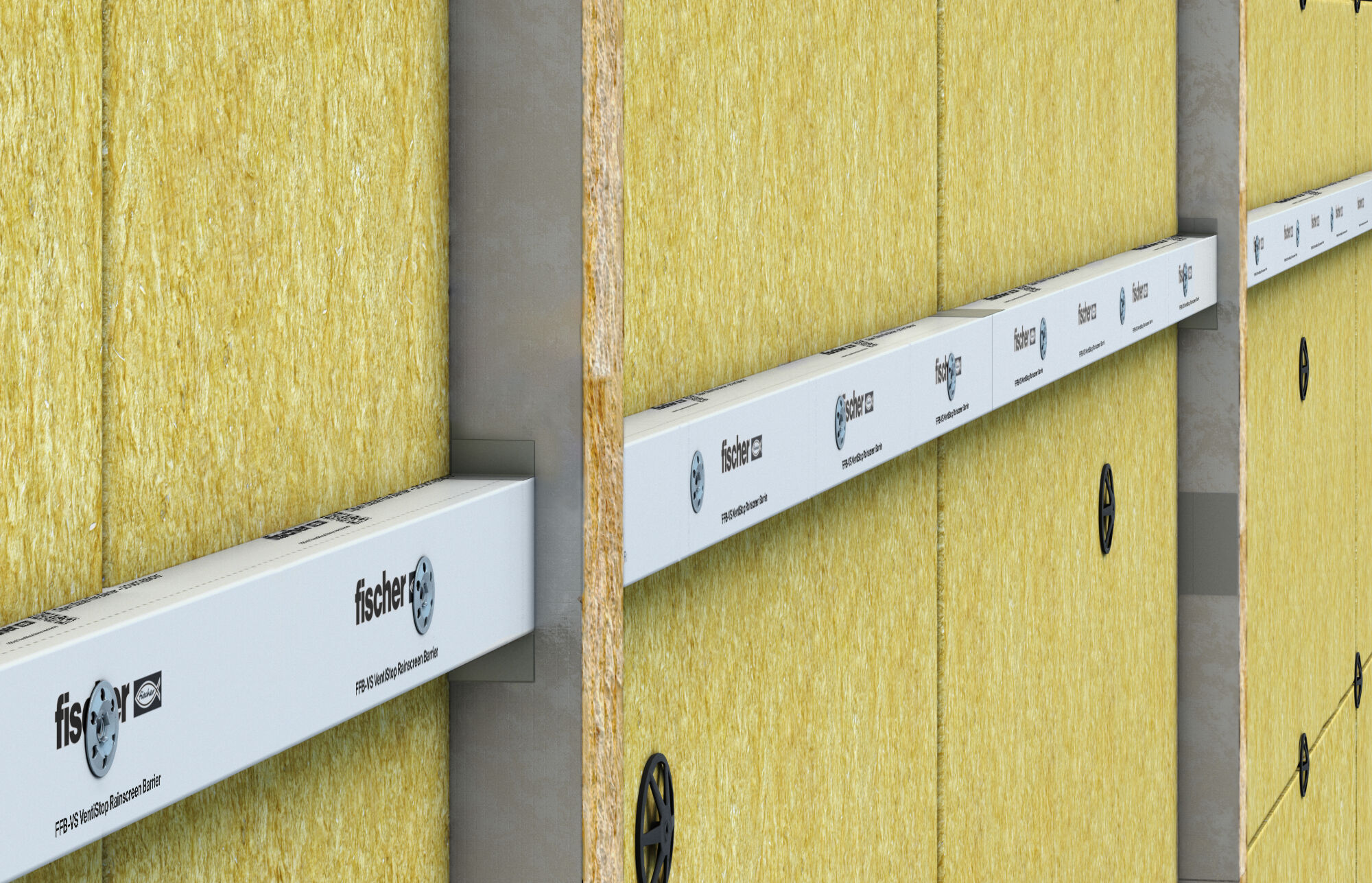

Installation FFB-VS with DHM

1 / 4

Installation FFB-VS with Multi Purpose Bracket

1 / 4

Marketing Documents

pdf,

FFB-VS VentiStop cavity barrier. Installation instructions.

Marketing Documents

pdf,

Rainscreen Cavity Barriers

To suit cavity void width	201 - 250 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173635

To suit cavity void width	251 - 300 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173642

To suit cavity void width	301 - 350 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173659

To suit cavity void width	351 - 400 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173666

To suit cavity void width	401 - 450 mm
Colour	White/red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173673

To suit cavity void width	25 - 50 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173598

To suit cavity void width	51 - 100 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173604

To suit cavity void width	101 - 150 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173611

To suit cavity void width	151 - 200 mm
Colour	Red/silver/black
Amount	1 pcs.
GTIN (EAN-Code)	4048962173628
