Art.-No. 544088

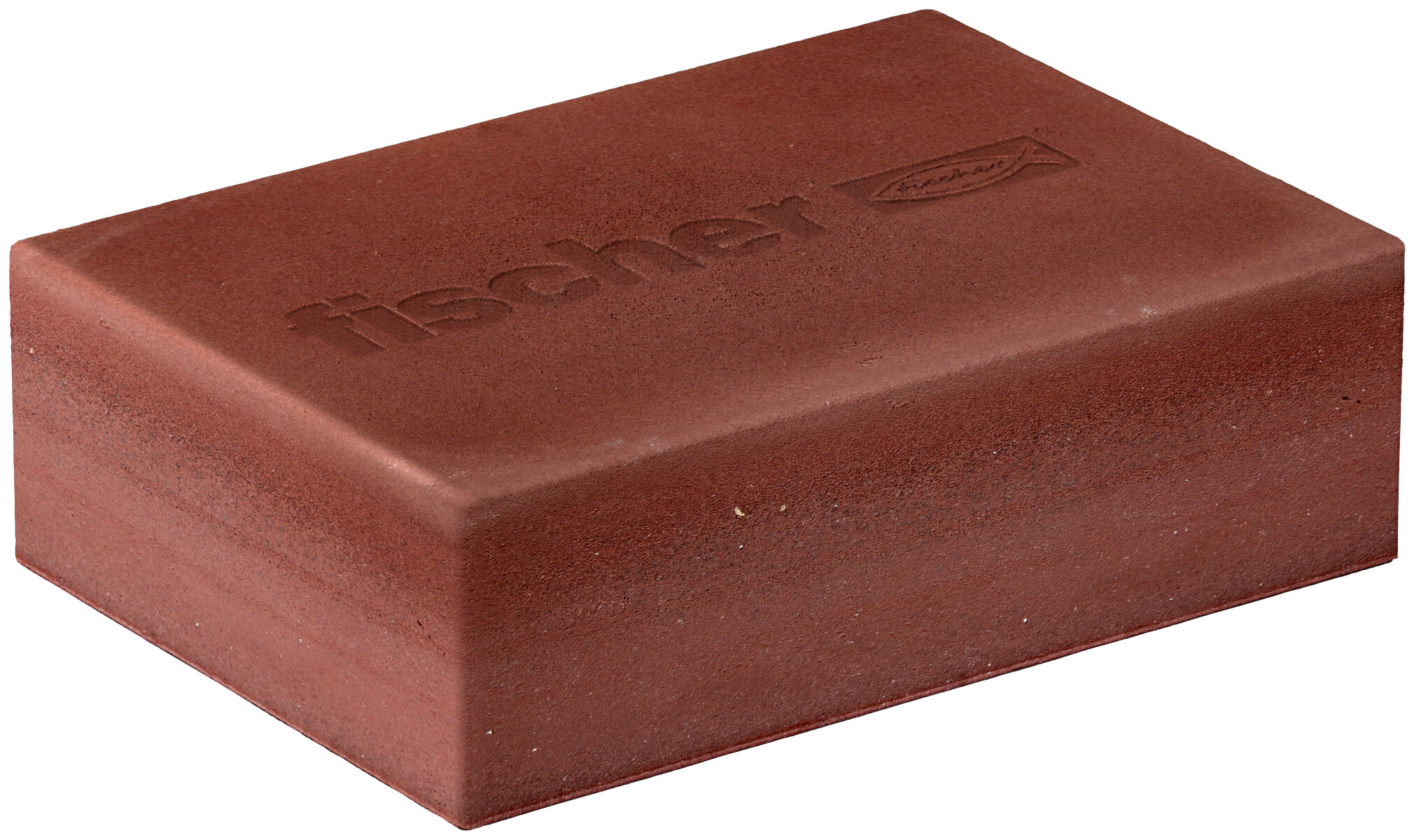

fischer Foam Barrier System PLUS FBB-EN FireStop Block

Top Features

Easy access for difficult to reach openings.
Re-enterable and repairable.
Fast installation.
F-rating / E-rating up to 2 hours.
T-rating / I-rating up to 2 hours.

FireStop Foam and FireStop Block for use in a System. Or individually. ETA approved and UL listed applications.

Advantages

Easy access for difficult to reach openings
Low VOC
Various applications with two products only
Age resistant
Smoke resistant
Resistant to damp
Re-enterable and repairable
Excellent adhesion
No backing material required
F-rating / E-Integrity rating up to 2 hours
T-rating / EI-Insulation rating up to 2 hours

fischer Firestop Foam Barrier System PLUS is a system of an an innovative two component polyurethane expanding foam and highly elastic mouldable blocks. Both components can by used in conjunction as a system or individually. The quick and easy installation of fischer Firestop Foam Barrier System PLUS means it can be retro fitted as necessary and used with the for more difficult to reach applications. fischer Firestop Foam Barrier System PLUS is available as an UL-version and as an EN-tested version.

Functionality

FBS is a two component polyurethane expanding sound, smoke and firestopping seal for hard to reach locations which expands to up to 5 times of its volume.
FBB are highly elastic mouldable blocks.
FIB is a glass fiber reinforced intumescent wrap to enhance the insulation value of ETA applications.
Tested in accordance with ASTM E 814 (UL 1479), ASTM E84 (UL 723) as well as EN 1366-3, EN 13501 the Barrier System PLUS allows an easy application which saves time and costs on site.

Installation FBS

1 / 10

ETA-approval
Dimensions	200 x 144 x 60 mm
Amount	1 pcs.
GTIN (EAN-Code)	4048962311778
