Art.-No. 569302

GTIN (EAN-Code): 4048962494860

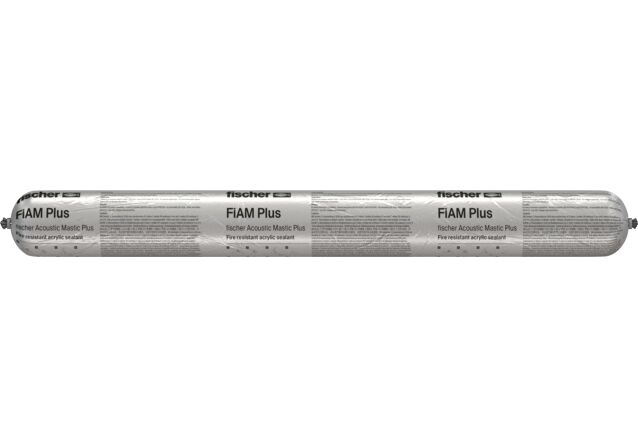

fischer Acoustic Mastic FiAM Plus 600

Name: fischer Acoustic Mastic FiAM Plus 600
Brand: fischer

Product Variant

Download of image data

Top Features

Movement capability ± 25 % according to EN1366-4.
Cycling up to 500 times as of ASTM E1399 (Class II and III).
No shrinking.
Low VOC, halogen and solvent free.
Paintable.
Low shrinkage after curing.

Flexible fire resistant acoustic mastic

Advantages

Acoustic properties (EN ISO 10140-2 and ASTM E90)
Excellent movement capabilities
Air permeability (EN 1026)
Water permeability (EN 1027)
Low VOC, halogen and solvent free.
Paintable
Low shrinkage after curing.
The shelf life is 24 months.

fischer FiAM Plus is a one part water-based acrylic sealant which has been designed to provide smoke and fire protection on construction joints and single penetrations both vertical and horizontal applications. Tested in accordance with EN 1366-3, EN 1366-4 and ASTM E1966 (UL 2079) the FiAM Plus is certified by ETA, UL-EU and UL-US. It has excellent movement capabilities, a non-shrinking behaviour and provides excellent acoustic properties.

Applications

Linear joints: rigid construction elements (EN 1366-4)
Single penetration metallic pipes (EN 1366-3)
Single penetration insulated metallic pipes (EN 1366-3)
Single penetration plastic pipes (EN 1366-3)
Cable trays (EN 1366-3)
Cable bunches (EN 1366-3)
Horizontal linear joints (ASTM E1966/UL 2079)
Internal application

Building materials

Rigid floor and wall constructions
Flexible wall constructions
Masonry
Concrete
Aerated Concrete
Steel

You can find detailed information on building materials in the approval document.

Approval

ETA-23/0163
ETA-23/0165
DoP No. FS-1016
DoP No. FS-1017
UL-EU-01277-EN
EPD-DBC-FIW-20230414-IBF1-EN

Functionality

FiAM Plus is a one part water-based fire resistant acrylic sealant.
When exposed to fire, it reacts to form a highly insulative char that slows down heat transfer and provides a barrier to fire.
It is suitable for a wide range of construction joints and single penetration applications according to EN 1366-3 and EN 1366-4 and ASTM E1966 (UL 2079).

Installation FiAM Plus cable

1 / 6

Installation FiAM Plus joint

1 / 6

Installation FiAM Plus pipe

1 / 6

ETA Certification Document

pdf, ETA-23/0163

European Technical Assessment for fischer FiAM Plus - Fire Stopping, Fire Sealing & Fire Protective Products, Fire Retardant Products, Penetration Seals.

Created on 01/04/2024

DOP - Declaration of Performance

pdf, DoP No. FS-1016

Declaration of Performance for fischer FiAM Plus Acoustic Mastic (Fire stopping and fire sealing products: Penetration Seals)

Created on 01/11/2024

ETA Certification Document

pdf, ETA-23/0165

European Technical Assessment for fischer FiAM Plus - Fire Stopping, Fire Sealing & Fire Protective Products, Fire Retardant Products, Linear Joint and Gap Seals.

Created on 01/04/2024

DOP - Declaration of Performance

pdf, DoP No. FS-1017

Declaration of Performance for fischer FiAM Plus Acoustic Mastic (Fire stopping and fire sealing products: Linear Joint and Gap Seals)

Created on 01/11/2024

ETA-approval
Language on label	DE, EN, ES, FR, NL, PT, TR
Contents	600 ml
Airborne sound insulation (ISO 10140-2)	Rw (C: Ctr) = 55 (-2: 5) dB
Sound Transmission Class STC (ASTM E90)	STC 66
Shelf life	24 months
Packaging	Foil bag
Amount	1 pcs
GTIN (EAN-Code)	4048962494860

fischer Acoustic Mastic FiAM Plus 600

Your advantages / Product description

Application and approval

Assembly instruction

Technical Data

Documents for Downloading
