fischer Zykon panel anchor FZP II 11 x 6 M6/T/9 D40 PA

Name: fischer Zykon panel anchor FZP II 11 x 6 M6/T/9 D40 PA
Brand: fischer

Product Variant

CAD Data

Download of image data

Top Features

Design for thin ceramic or porcelain stoneware panels.
The big washer alwasy enables a flush installation - also with a pattern on the backside of the panel.
Stress-free fixing enables high loads and use of thin panels.
The distance washers ensures a controlled, stress-free rotation of attachment parts.

SBN 502 drill rig
FZPB 9T
CNC adapter
FZPB 11/21 CNC
STU 10-30 dial gauge
MST-D, digital caliper
HVL 11, undercut volume gauge
DPL 11, diameter gauge
SGB/230V, battery operated setting tool
SGT, setting tool
SGA M6, setting adapter
Nut M6 A4
Lock nut M6 A4
Serrated nut M6 A4

The specialist for thin ceramic façade panels.

Advantages

The short geometry of the anchor allows it to be used in thin panels starting from 8 mm thickness.
The fixing is not externally visible, creating a visually appealing façade surface.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.
This anchor provides much better holding forces than commonly available systems which allows for the use of large format panels.

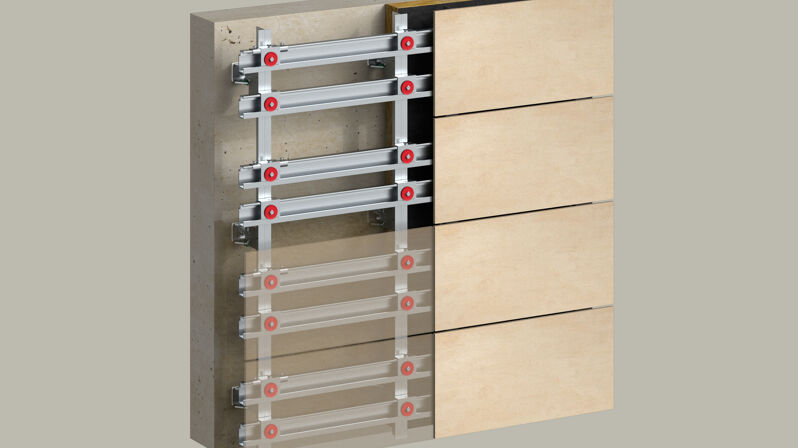

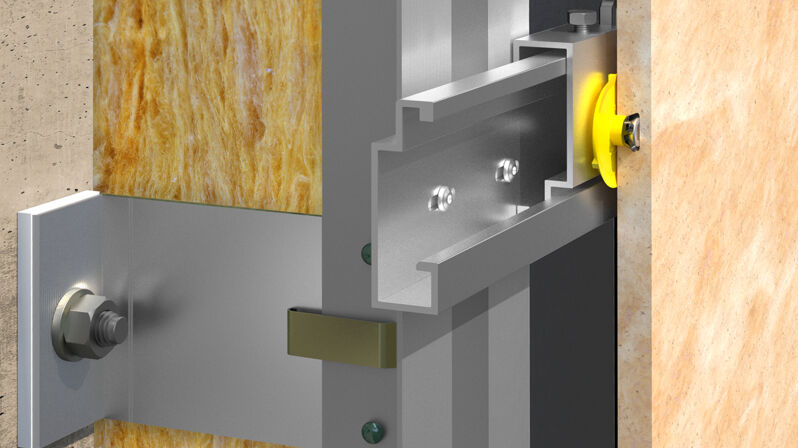

The concealed fixing solution for thin ceramic and fine stoneware façade panels. Use in conjunction with clasps systems on façades or with other attachments.

Functionality

Wet diamond drilling in ceramic.
The drill hole is drilled with an absolute anchoring depth.
Flush installation of the anchor, the spacer washer will be in full contact with the surface of the material.

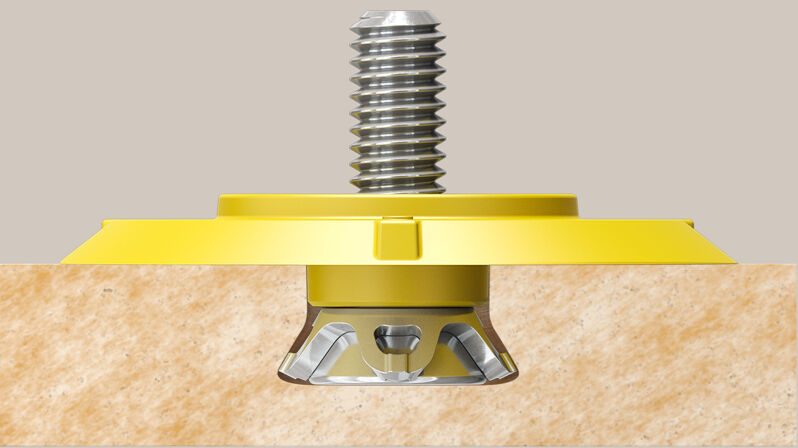

drilling: first cylindrical, then conical - to create the undercut.
Inserting the undercut anchor in the cylindrical-conical undercut hole.
Expanding the undercut anchor by "pressing down" the washer using the setting tools.
Stress-free and geometrical inter-locking fixing.

Installation FZP II T D40 PA

1 / 4

ETA Certification Document

pdf, ETA-23/0756

European Technical Assessment for fischer-Zykon panel anchor FZP II T

Created on 12/08/2023

DOP - Declaration of Performance

pdf, DoP No. 0359

Declaration of Performance for fischer-Zykon-panel anchor FZP II T

Created on 04/12/2024

ETA Certification Document

pdf, ETA-23/0035

European Technical Assessment for fischer ZYKON FZP II T D40 PA for fixing Atlas Concorde facade panels - Fastener of external wall claddings. Special anchor for the rear fixing of Atlas Concorde ceramic tile facade panels

Created on 01/24/2023

DOP - Declaration of Performance

pdf, DoP No. 0364

Declaration of Performance for fischer ZYKON FZP II T D40 PA panel anchor (for Atlas Concorde ceramic tile facade panels)

Created on 06/03/2024

ETA Certification Document

pdf, ETA-22/0400

European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels

Created on 08/25/2022

DOP - Declaration of Performance

pdf, DoP No. 0322

Declaration of Performance for fischer Zykon-panel anchor FZP II (for Mirage)

Created on 10/12/2022

ETA-approval
Min. panel thickness	8 mm
Embedment depth ( h₁ )	6 mm
Total length ( l )	17,5 mm
Installed anchor length ( a )	8,5 mm
Remaining thread length ( b )	9 mm
Thread ( M )	M6
Cylindrical diameter ( d₀ )	11 mm
Undercutdiameter ( d₁ )	13,5 mm
Colour washer	red
Seismic-Approval	C1 / C2
System	—
Amount	250 pcs
GTIN (EAN-Code)	4048962217735
BWM	Fis532644

fischer Zykon panel anchor FZP II 11 x 6 M6/T/9 D40 PA
