Name: fischer Horizontal profile FHP-SZ 40x1.8 AL, 6 m, SZ20
Brand: fischer

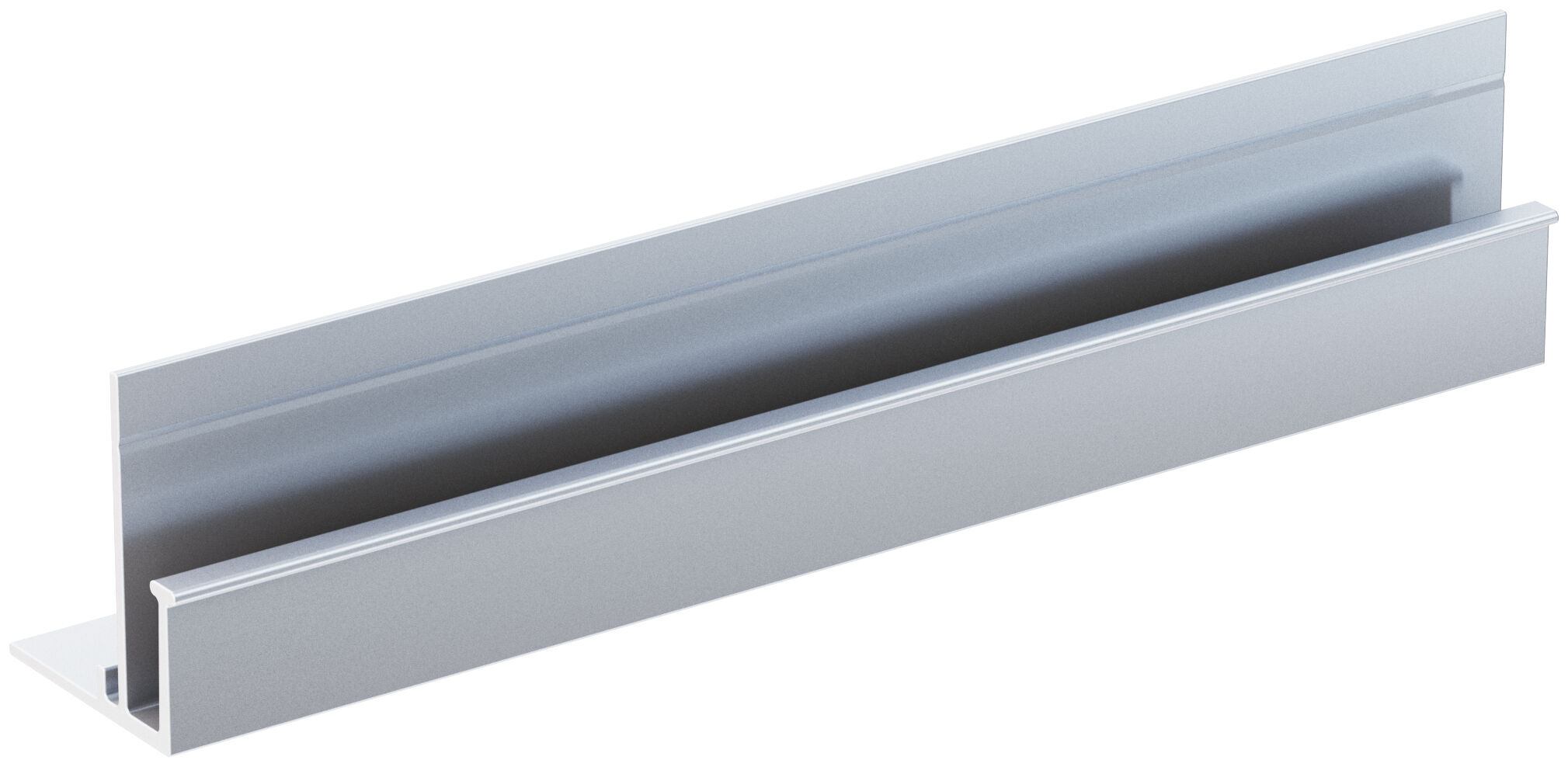

Horizontal base profile ATK 106 SZ 20 for the bottom end.

Advantages

Optimised horizontal load transfer through transfer to the vertical profiles.
The compatible geometries of the clasps and horizontal profiles enable quickly and easily installation of the façade panels.
The horizontal profiles can be used universally in nearly all subrame systems.
The optimised geometry ensures material savings.
The possibility of combining different versions allows for increased flexibility.

The ATK 106 SZ 20 base profile is part of the BWM subframe system ATK 106 SZ 20 and is used in combination with the S-profile of the system for the lower horizontal closure e.g. at the plinth or window lintel. The profiles are available in 6 m lengths as standard.

Properties

Aluminum (e.g. EN AW 6063, 6061)

DOP - Declaration of Performance

pdf, DoP: BWM-LE-005

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: No performance declared

Created on 05/08/2024

DOP - Declaration of Performance

pdf, DoP: BWM-LE-006

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to EN 1999 or EN 1993, see design specifications and calculations

Created on 05/08/2024

DOP - Declaration of Performance

pdf, DoP: BWM-LE-007

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: Provided by ordering party

Created on 05/08/2024

DOP - Declaration of Performance

pdf, DoP: BWM-LE-008

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to specification by the ordering party

Created on 05/08/2024

Depth( D )	40 mm
Thickness( T )	1,8 mm
Height( H )	50 mm
Length( L )	6.000 mm
Amount	1 pcs
GTIN (EAN-Code)	4048962384703
BWM	663003
