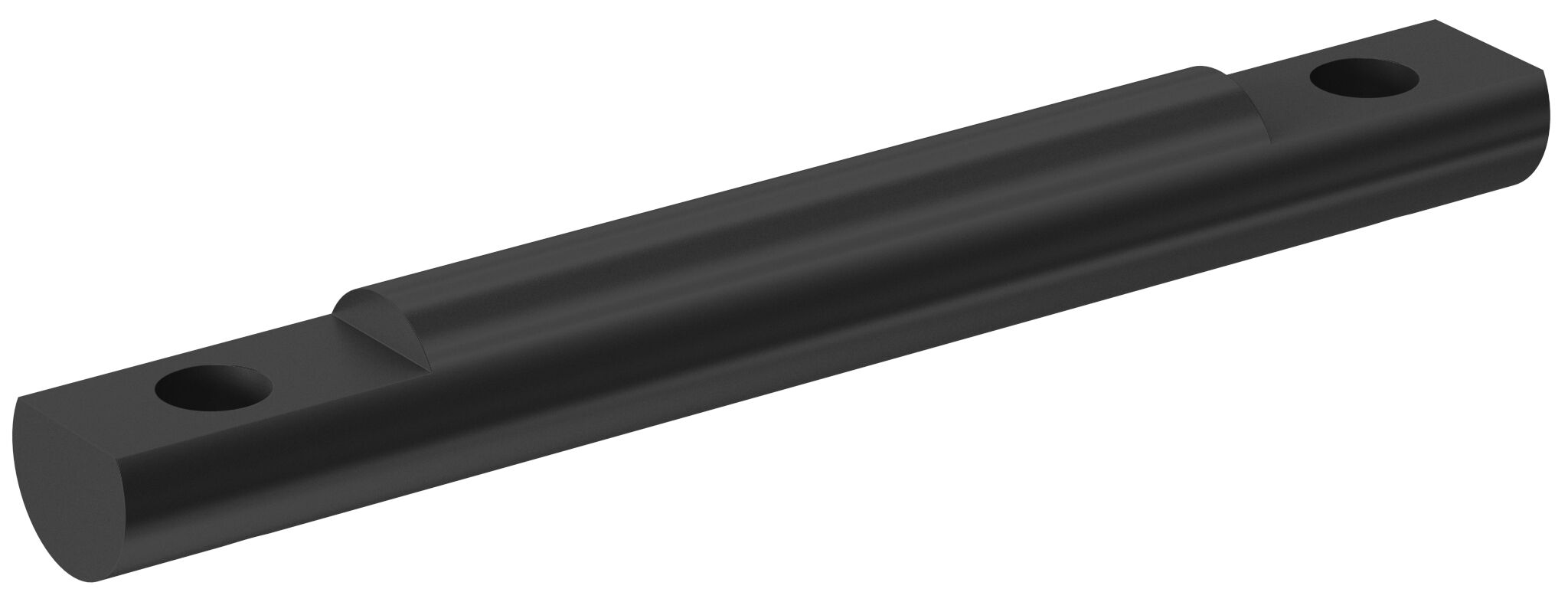

fischer metal cassette bolt FPC-B 10 5.5 black AL, ATK107FLH

Name: fischer metal cassette bolt FPC-B 10 5.5 black AL, ATK107FLH
Brand: fischer

Product Variant

Download of image data

For fixing metal cassettes with bolt suspension in ventilated rainscreen façades.

Advantages

The FMC-B ATK107FLH bolt provides a simple and economic fixing solution for metal façade cassettes.
By fixing the cassettes directly to the vertical profile, no horizontal profile is required.
The bolts are available in uncoated or black anodised surface finish.

The façade clamp bolts ATK107FLH are used for fixing metal cassettes. They are riveted or screwed to the vertical subframe system, the tulip profiles of the ATK100 or 107, in accordance to the structural design and requirements. Metal cassettes are hooked onto the fixed bolts using the prefabricated suspension edges of the cassettes.

Properties

Aluminium (e. g. EN AW 6082)

Width( W )	84 mm
Width( W₂ )	49,5 mm
Thickness( T )	10 mm
Depth( D )	7,5 mm
Dimensions( d )	5.5 mm
Colour	black
System	ATK107FLH
Amount	100 pcs
GTIN (EAN-Code)	4048962527650
BWM	573417
