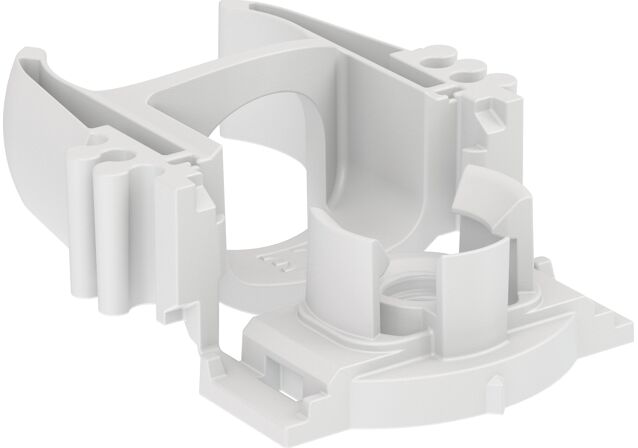

fischer pipe clip direct fastening RC 20 DF

Name: fischer pipe clip direct fastening RC 20 DF
Brand: fischer

Produktvarianten

Download of image data

Top Features

For fastening with the fischer direct fastening devices or with conventional fastening options
Fast one-handed installation thanks to fischer direct fastening devices (FGC 100 or FXC 85) and e-fix nose
Flexible application with conventional fastening options such as nail anchors, screws and anchors or plug-in fixings on all surfaces

The convenient pipe fixing with fischer direct fastening tools.

Advantages

Flexible fixing with the fischer direct fastening tools FGC 100/FXC 85 or with nail plugs, screws and plugs or ClipFix.
Coupling several RC DF pipe clips allows economical pipe fixing at just one fixing point.
The combination of the RC DF pipe clip and the fischer direct fastening tool enables one-hand installation and thus ensures significantly faster installation compared to conventional dowel installation.

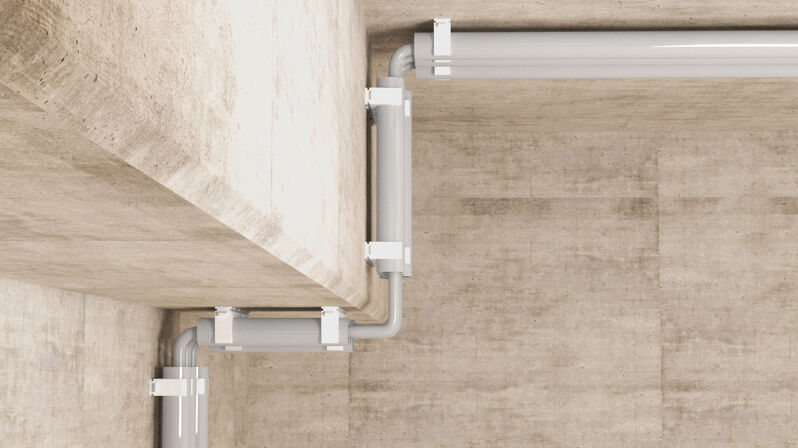

The fischer direct fastening pipe clip RC DF is an easy-to-mount solution for fixing pipes. The pipe clip RC DF is ideal for fixing plastic insulating pipes to the substrate. Two additional pipe clips can be attached to the side of an already fixed pipe clip. This saves time and money and increases flexibility. The pipe clip can be fixed with the fischer direct fastening tools, with nail plugs, plugs and screws or ClipFix.

Applications

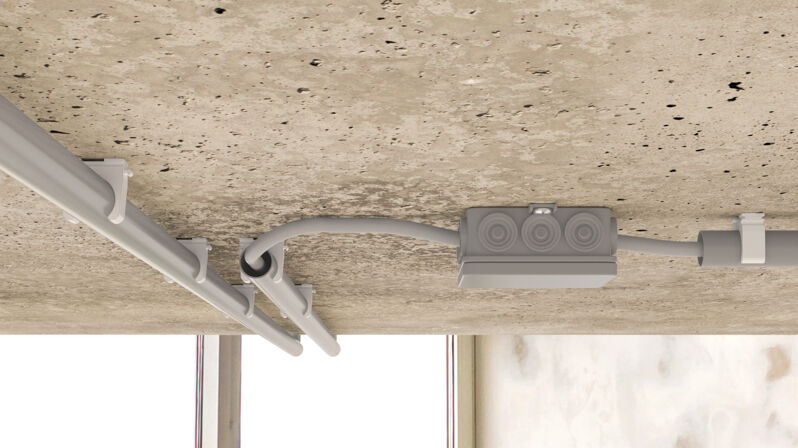

Flexible and rigid plastic insulating pipes

Building materials

When using the DFN nails

Soft concrete < C 30/37
Solid brick
sand-lime brick

When using DFNH nails

Hard concrete > C 30/37
steel

When using nail dowel, dowel and screw or Steckfix:

Concrete
Solid sand-lime brick
Solid brick made of lightweight concrete
Other substrates depending on the fastener used

Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.

Functionality

The base of the pipe clip can be fastened either with direct fastening (DFN/DFNH nails) or with conventional fastening options (e.g. nail plugs: N-F ø6).
For direct fastening, the pipe clip RC DF is placed lateral to the e-fix nose.
The direct fastening sets the DFN/DFNH nail and the pipe clip into the substrate in a single step.

Installation pipe clip RC DF with direct fastening

1 / 7

Installation pipe clip RC DF with plug

1 / 5

Clamping range ( D )	20 mm
Through hole ( d_f )	5.2 mm
Width ( b )	33 mm
Height ( h )	34 mm
Depth ( t )	18,5 mm
Max. nail shank diameter Direct fastening ( d_DF )	3 mm
Colour	RAL 7035 cable grey
Packaging	Polybag
Amount	100 pcs
GTIN (EAN-Code)	4048962520750
