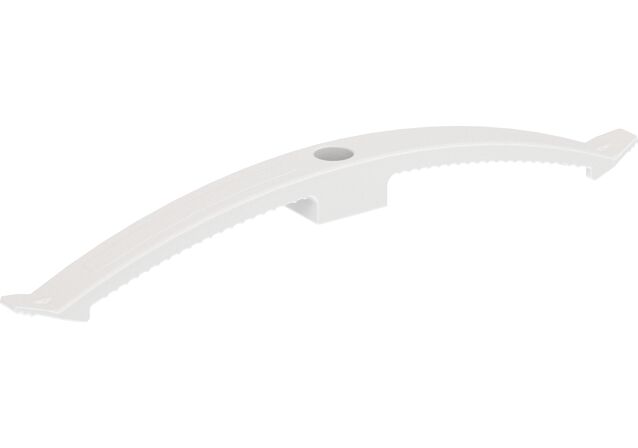

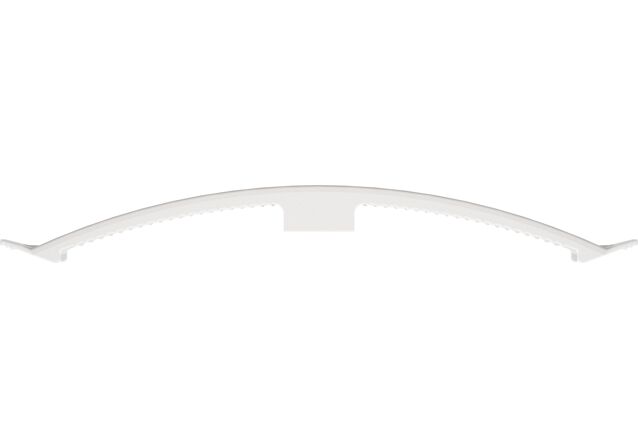

fischer cable clasp direct fastening KB 16 DF

Name: fischer cable clasp direct fastening KB 16 DF
Brand: fischer

Product Variant

Download of image data

The flat cable clasp for space-saving cable fixing with fischer direct fastening tools.

Advantages

The combination of cable clasp KB DF and fischer direct fastening tools enables one-hand installation and therefore allows faster installation compared to conventional dowel installation.
The durable nylon material is halogen-free and can be used all year round, even in frosty conditions, thus ensuring a high level of safety.
The angled flap of the cable clasp KB DF enables space-saving cable fixing and a quick reassignment.
The fischer direct fastening tools and fischer DFN/DFNH nails are used to fix the cable clasp securely to the substrate.

The fischer direct fastening cable clasp KB DF is a fixing solution for space-saving cable fixing with fischer direct fixing tools. With the fischer FGC 100 or FXC 85 in combination with the e-fix nose, the cable clasp KB DF is fixed directly into the substrate. The cable clasp KB DF is ideal for securely fixing several individual cables.

Functionality

The cable clasp KB DF is designed for fixing with the fischer FGC 100 and FXC 85 direct fastening tools.
The cable clasp KB DF is placed on the e-fix nose.
The direct fastening sets the DFN/DFNH nail and the cable clasp into the substrate in a single step.
After installation, the cables are pulled under the clasp. Additional cables can be easily laid after installation too.

Installation cable bow KB 8 DF

1 / 5

Installation Cable bow KB 16 DF

1 / 5

Length ( l )	227 mm
Width ( b )	20 mm
Height ( h )	17 mm
Max. number of ducts	16 ducts NYM 3 x 1.5
Through hole ( d_f )	3.7 mm
Max. nail shank diameter Direct fastening ( d_DF )	3 mm
Colour	RAL 7035 cable grey
Packaging	Polybag
Amount	50 pcs
GTIN (EAN-Code)	4048962520804
