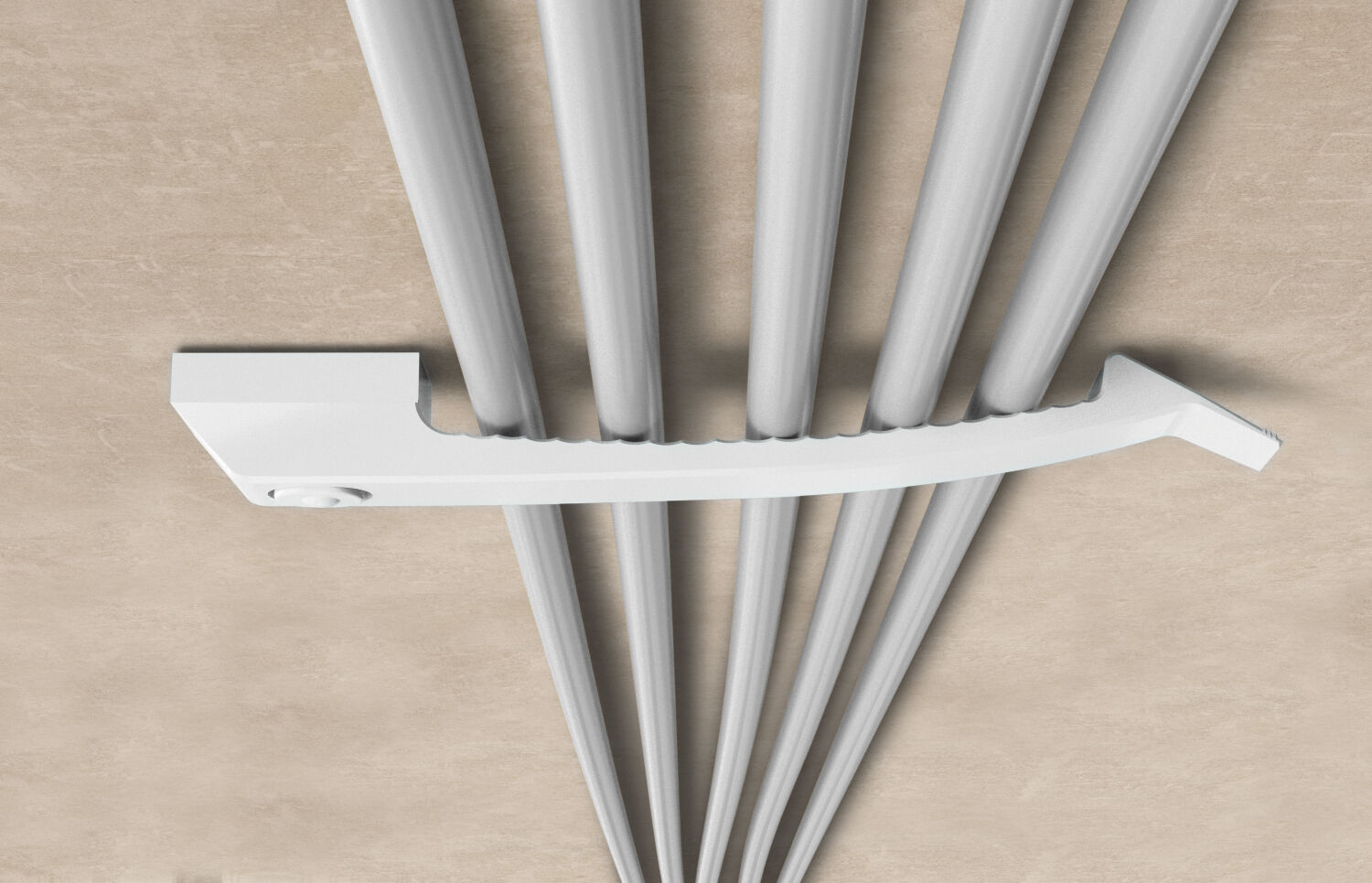

Application picture
Application picture
1   1

fischer ClipFix plus push in plug SF plus SD 30

The user-friendly plug-in installation for cable ducts and cable clasps.

Art.-No. 58178
Top Features
  • Simple assembly in cable ducts that are difficult to access. Combined plug and screw.
  • Plug-in installation saves time.
  • High retention forces due to a locking catch.
  • Made of high-quality nylon.

Sales to

Payment

Delivery

Product Description

The fischer ClipFix plus clip fixing SF plus SD is an easy-to-assemble solution for fixing cable ducts and cable clasps. The clip fixing made from high-quality nylon combines plug and screw in one component. The innovative electrical fixing is inserted into the drill hole without a screw and attaches loads of up to 11 kg securely into concrete and solid brick. The ClipFix plus clip fixing SF is also effective in extreme temperatures between -20 °C and +80 °C.
Advantages
  • The ClipFix plus SD combines anchor and screw. This saves on materials and makes it easier to affix cable ducts that are difficult to access without the need for additional tools.
  • The simple clip fixing reduces installation time.
  • The long-lasting nylon material is flame resistant, halogen- and silicone-free. It can be used all year round, including during a frost. This ensures a high level of safety.

Application and Permission

Applications
For fixing of:
  • Cable channels
  • Flat building components
Building materials
  • Concrete
  • Solid pumice block
  • Solid sand-lime brick
  • Natural stone with dense structure
  • Solid brick
* You can find detailed information on building materials in the registration document.

Assembly Instruction

Functioning
  • To fix, manually place the ClipFix plus SD directly into the drill hole. No additional screws are needed.
  • The clamping force of the locking catch allows the ClipFix to hold itself in the drill hole.
  • Recommended loads (required safety factor considered): clip fixing SD up to 11 kg.
  • Temperature resistance once installed from -20 °C to +80 °C.
Installation graphic
Installation graphic
Installation graphic
Installation graphic

Technical Data

Technical Data

Drill hole 6 [Ø mm]
Min. drill hole depth 35 [mm]
Usable length 4 [mm]
Amount 200 Unit(s)
GTIN (EAN Code) 4006209581780
