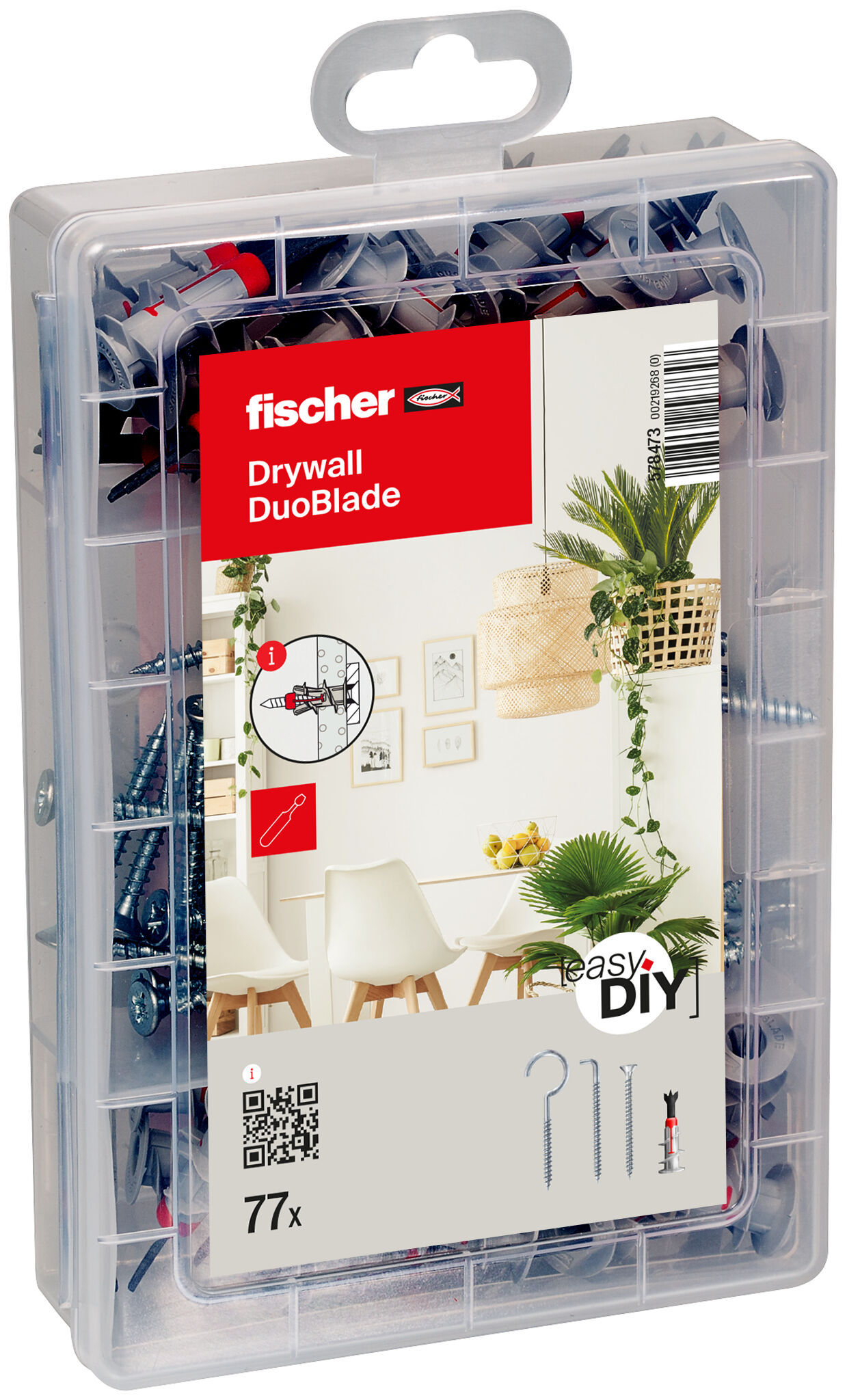

fischer EasyDIY Box Drywall DuoBlade (77)

Name: fischer EasyDIY Box Drywall DuoBlade (77)
Brand: fischer

Product Variant

Download of image data

Top Features

Self-drilling plug for quick and easy installation in plasterboard, gypsum fiberboard and lightweight cement boards.
No additional setting tool required.
Cross recess drive (PZ 2) for easy installation.
Refillable assembly box made of high-quality plastic: optimum overview thanks to transparent lid and pre-sorted contents.
Maximum load capacity of 8 kg to 34 kg, depending on the building material.

Simply self-drilling!

Advantages

The self-drilling DuoBlade plug enables secure, positive fixing for a high load-bearing capacity in plasterboard, gypsum fiberboard and lightweight cement building boards.
The black metal tip enables precise positioning on the substrate and guarantees simple and secure installation without the plug slipping.
The existing shaft ribs prevent the plug from turning in the drill hole.
The intelligent 2-component plug has an additional expansion effect for a secure hold.
The DuoBlade has a wide range of applications thanks to its compatibility with various screws and hooks.
Practical box made of high-quality plastic with transparent lid for organization and overview.

Simply self-drilling! fischer EasyDIY Box Drywall DuoBlade is a 77-piece set. Whether smoke detectors, mirrors or curtain rails – it is ideal for fastenings in plasterboard, gypsum fiberboard and lightweight cement boards. The included DuoBlade plug is part of the innovative DuoLine, which ensures the best possible performance in the substrate with its various components and enables a clean and effective drilling process thanks to the self-drilling metal tip. Compatibility with various screws and hooks opens up a wide range of applications. The practical box made of high-quality plastic with a transparent lid ensures order and clarity.

Functionality

The DuoBlade plug is suitable for pre-insertion in plasterboard, gypsum fiberboard and lightweight cement boards.
Tip: You can recognize the right substrate by the fact that your wall sounds hollow when you knock on it. If you are unsure, try our DIY app with building material recognition.
The wall plug is screwed into the substrate flush with the surface using a cordless screwdriver or screwdriver with a Phillips drive (PZ 2). No separate setting tool is required.
The self-drilling metal tip ensures a clean and effective drilling process.
Tip: In gypsum fiberboard, we recommend pre-drilling with a ø 8 mm drill bit.
The sharp, self-tapping thread of the DuoBlade enables secure, form-fit fastening for a high load-bearing capacity.
The fastening of your favorite pieces is finished.

Installation DuoBlade

1 / 9

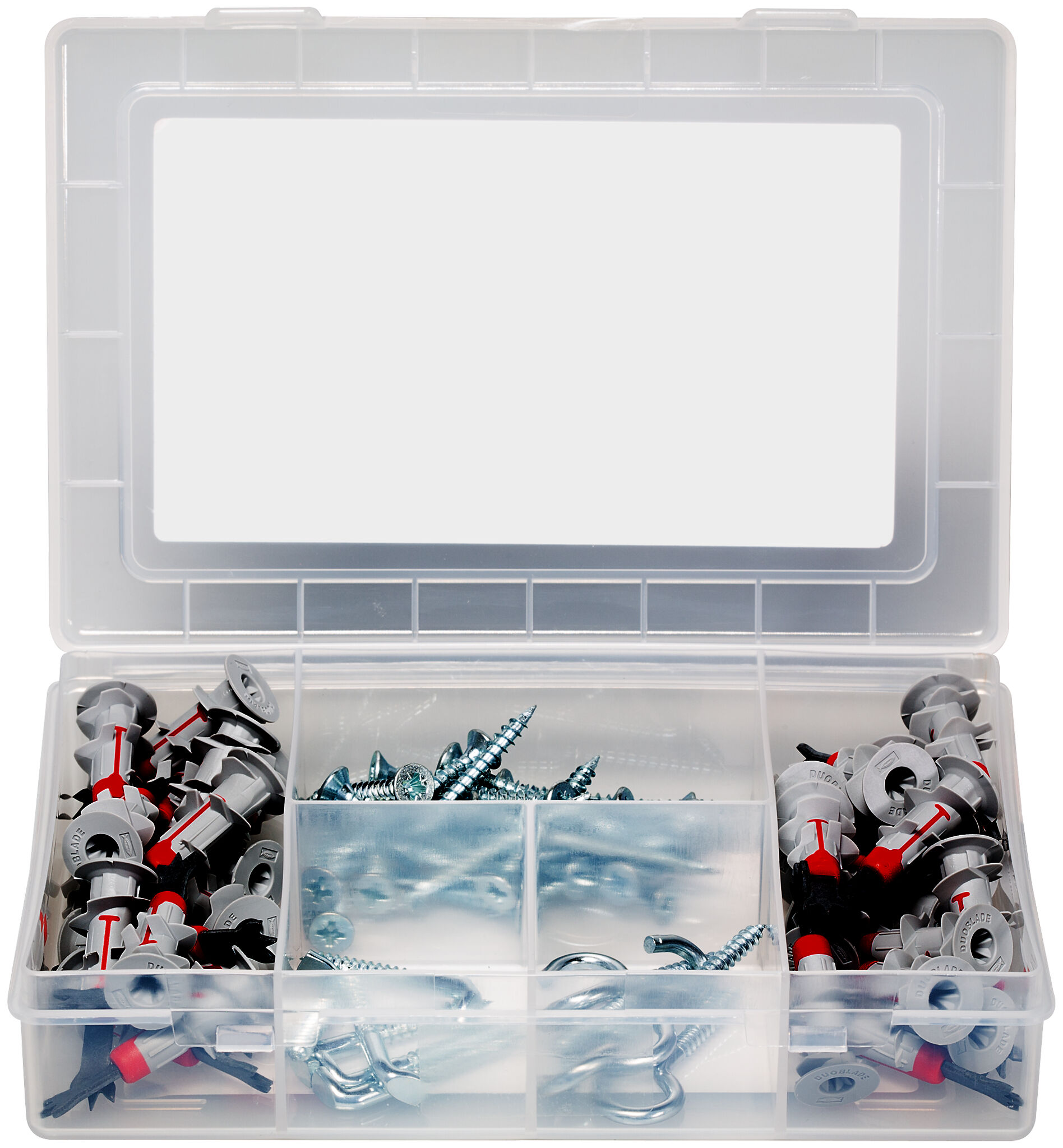

Contents	35 x DuoBlade 30 x Countersunk head screw 4,5 x 40 PZ 6 x Angle hook 4.2 x 40 6 x Round hook 4.3 x 46

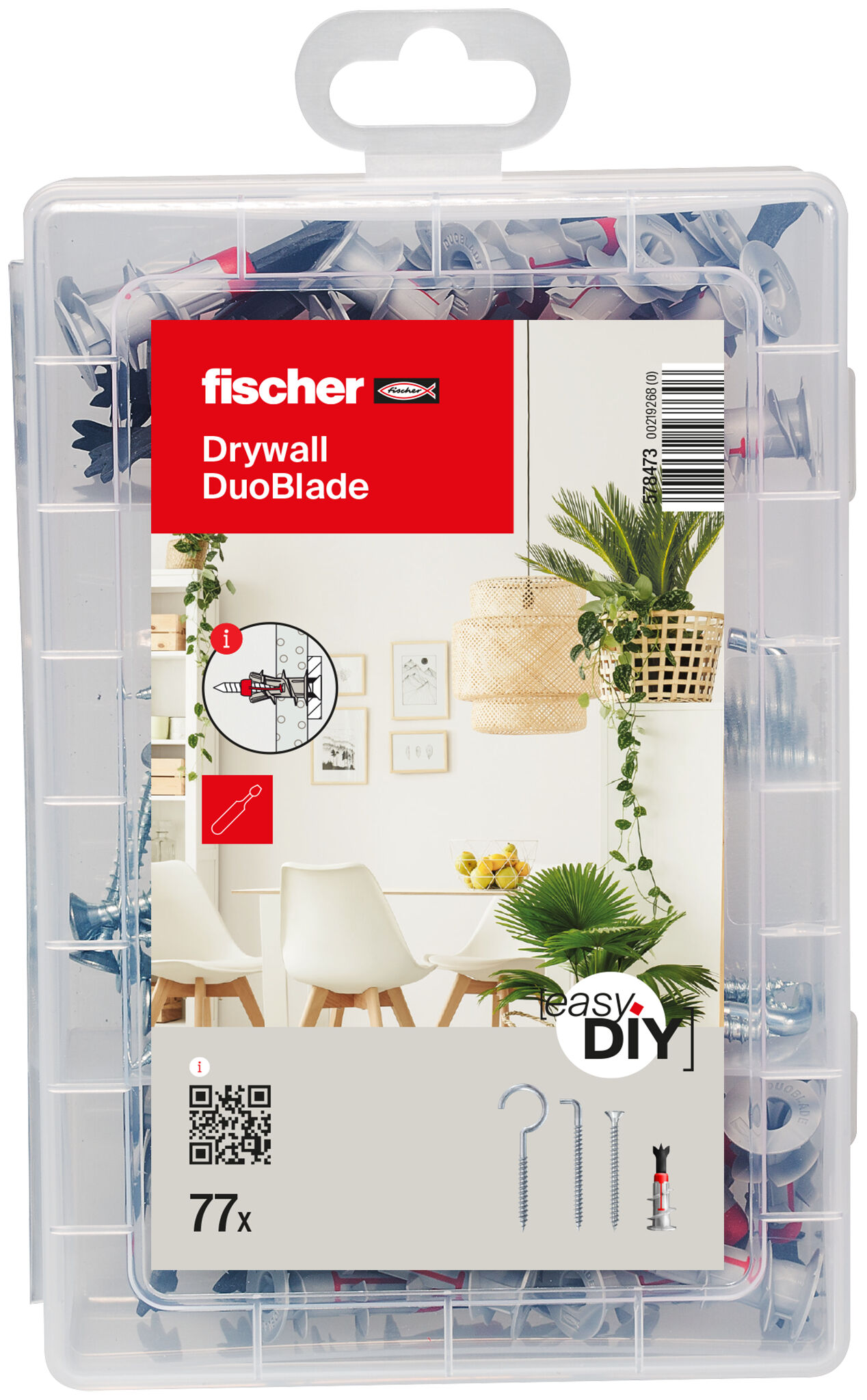

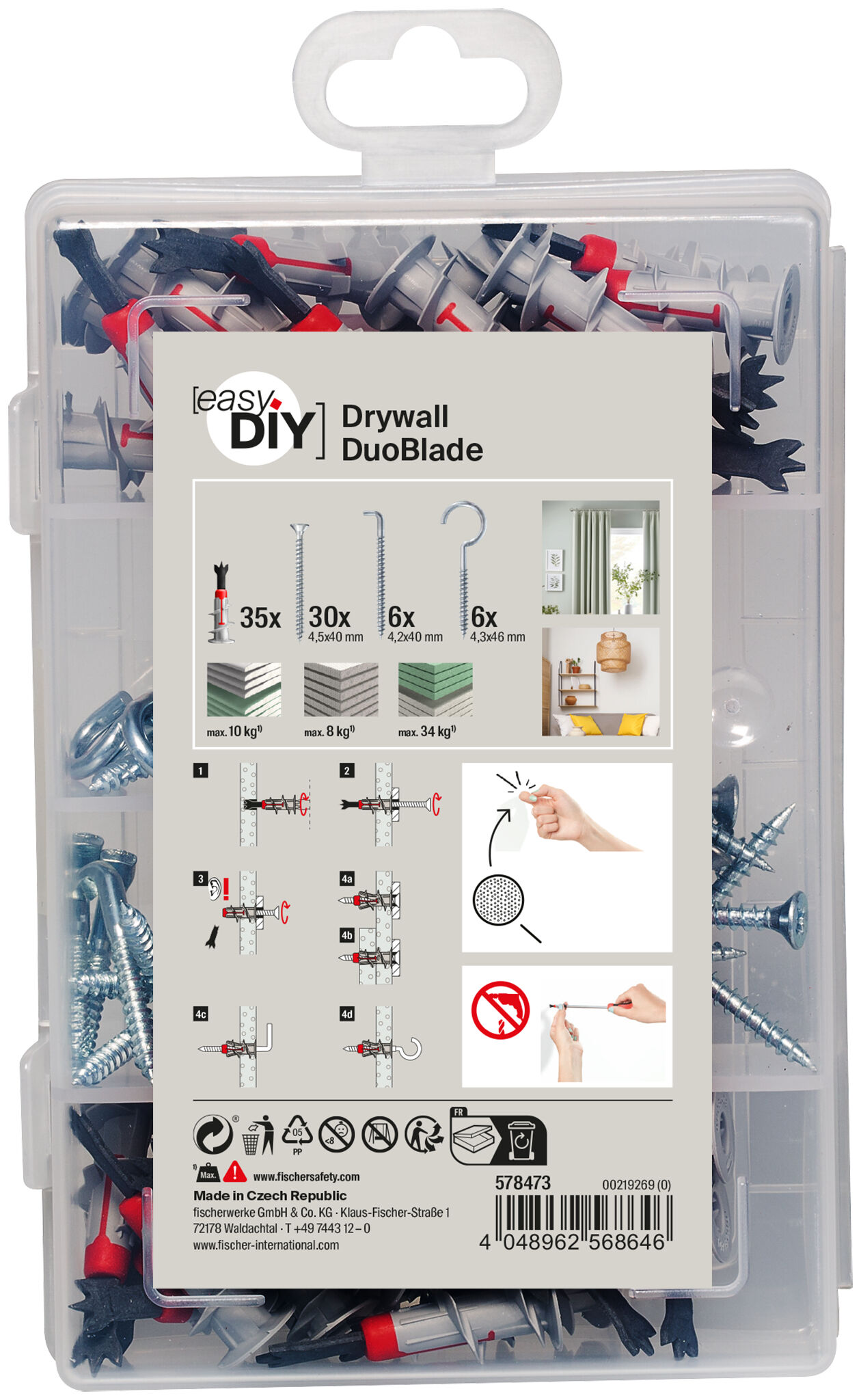

Packaging	Assortment box
Amount	77 pcs
GTIN (EAN-Code)	4048962568646
