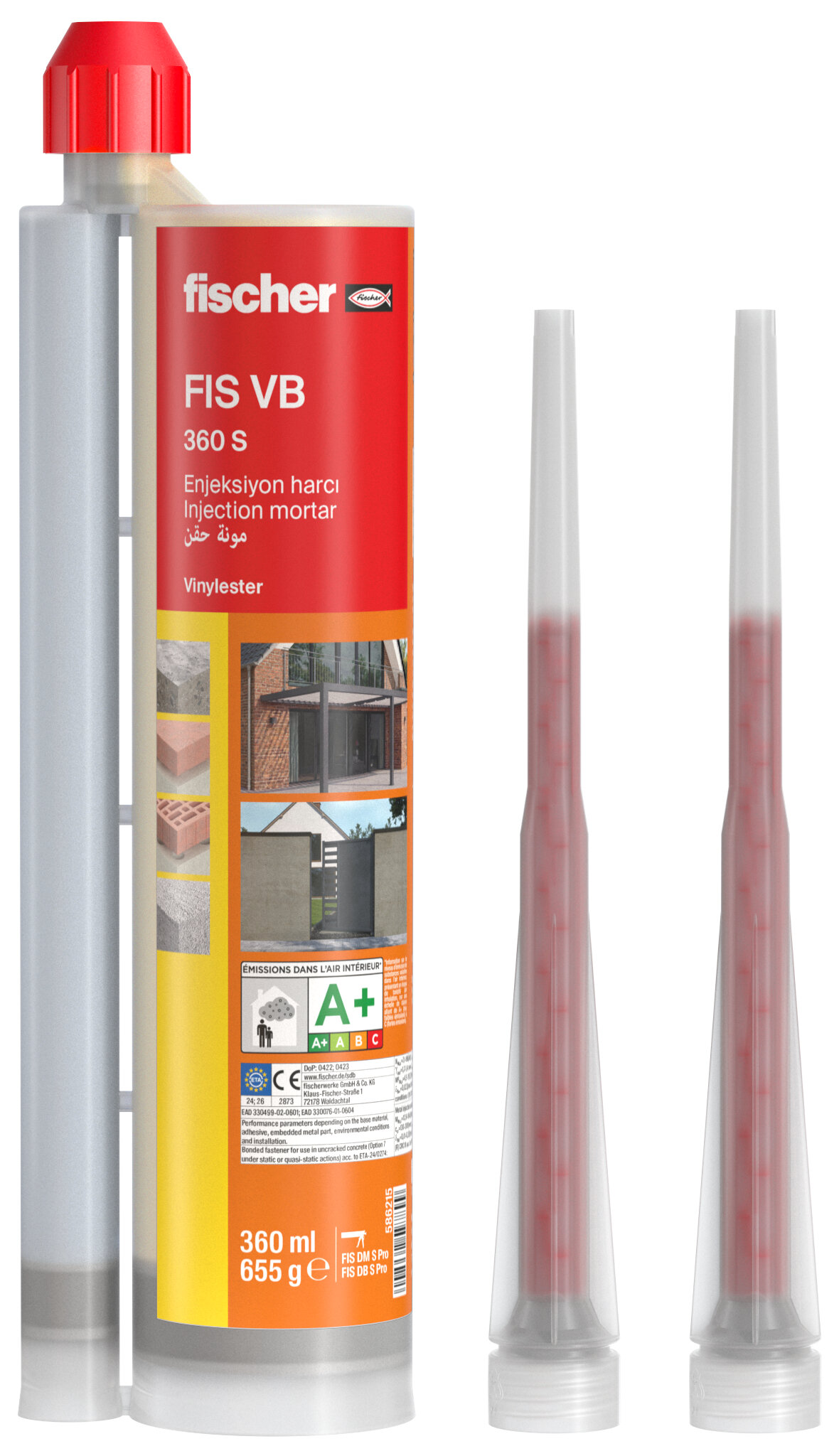

fischer injection mortar FIS VB 360 S, 360 ml, cartridge plus two static mixers

Name: fischer injection mortar FIS VB 360 S, 360 ml, cartridge plus two static mixers
Brand: fischer

Product Variant

Download of image data

Top Features

ETA approval for masonry and non-cracked concrete
Vinylester-based, styrene-free and fast curing
Economical and robust, outperforming typical polyester-based alternatives

Economical and approved injection mortar for anchoring in masonry and non-cracked concrete.

Advantages

Approved performance: Economical and ETA approved solution for masonry and non-cracked concrete, delivering reliable performance.
Versatile: Suitable for light to medium, static and quasi-static load applications, this injection mortar offers a fast-curing solution for standard installations.
Safe handling: The styrene-free formulation ensures safe handling and health protection.
The integrated scale on the cartridge reduces waste.
With an operating temperature range of 0 to 40°C, FIS VB can be used year-round.
Compatible with threaded rods M8-M20 (non-cracked concrete), M8-M12 (masonry) and internal threaded rods M5-M12.
Compatible with fischer manual and battery dispensers.
Suitable for wet concrete and has fire-resistant features for concrete applications.

The fischer vinylester-based injection mortar FIS VB is designed for light to medium, static and quasi-static load applications. It is approved for use in non-cracked concrete and masonry, delivering reliable performance for standard installations. The styrene-free, fast-curing formulation ensures safe handling and health protection.

Functionality

FIS VB is a 2-component injection mortar based on a vinyl ester concept.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
Discard the initial amount of mortar.
The mortar is extruded bubble free from the drill hole base.
The mortar fills the drill hole around the anchor, bonding the anchor to the drill hole wall and enabling the transfer of loads into the base material.
The injection cartridges are quick and easy to use with the fischer dispensers.
Option of using standard manual silicone gun for 300 ml catridge size.
Partially used cartridges can be reused by replacing the static mixer.

Show the assembly instruction as pdf file

Installation FIS VB in concrete

1 / 8

Installation FIS VB in solid brick

1 / 7

Installation FIS VB in hollow brick

1 / 5

Installation FIS VB in aerated concrete

1 / 7

ETA Certification Document

pdf, ETA-24/0274

European Technical Assessment for fischer injection system FIS VB - Bonded fasteners for use in concrete

Created on 08/19/2026

DOP - Declaration of Performance

pdf, DoP No. 0422

Declaration of Performance for fischer injection system FIS VB (Bonded fastener for use in concrete)

Created on 10/01/2026

ETA Certification Document

pdf, ETA-26/0280

European Technical Assessment for fischer injection system FIS VB - Metal injection anchors for use in masonry

Created on 09/02/2026

DOP - Declaration of Performance

pdf, DoP No. 0423

Declaration of Performance for fischer injection system FIS VB (Metal injection anchors for use in masonry)

Created on 10/01/2026

ETA-approval
Language on label	AR, EN, TR
Contents	1 x Cartridge 360 ml, 2 x Static mixers FIS MR Plus
Amount	1 pcs
GTIN (EAN-Code)	4048962597899

fischer injection mortar FIS VB 360 S, 360 ml, cartridge plus two static mixers
