The cost-efficient injection mortar for post-installed rebar connections.

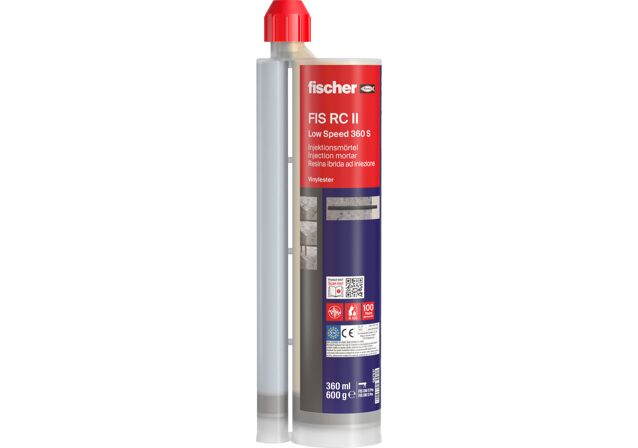

Injection mortar FIS RC II Low Speed

The fischer RebarConnect FIS RC II Low Speed injection mortar is the economical choice for post-installed rebar connections. With the injection system, ø 8-40 rebar connections with an anchoring depth of up to 2 metres can be carried out. In combination with the matching hollow drill, borehole cleaning is no longer required as an additional work step for fast installation. The processing of the FIS RC II Low Speed is regulated from -5°C to +40°C in the ETA.

Termékváltozat

Download of image data

Termékváltozat

Engedélyek / vizsgálati jelentések

11 termékváltozat

Language on label

Scale unit

Contents

Packaging

Amount

GTIN (EAN-Code)

Jelmagyarázat = Van engedély— = Nincs engedély

A (z) 11 változatok 11 megtekintése

Advantages

The European Technical Assessment (ETA) permits post-installed rebar connection with rebars from ø 8 - 40 mm and embedment depths up to 2 m including seismic applications.
The short processing and curing times ensure fast working progress.
Processing in different substrate temperatures from -5°C to +40°C allows universal use.
The injection mortar Rebar Connect FIS RC II Low Speed allows flexible application with hollow or hammer drills.
In addition, the FIS RC II Low Speed is approved for post-installed rebar connections with a service life of 100 years.

Functionality

Resin and hardener are stored in two separate chambers and are only mixed and activated in the static mixer when the injection cartridge is ejected.
In combination with the suitable hollow drill, there is no need for drill hole cleaning.
The injection cartridges can be applied quickly and with minimum effort using the fischer dispenser.
The reinforcement bar is set by hand with a slight rotating movement down to the bottom of the drill hole.
The mortar fully bonds the reinforcement bar to the drill hole wall and seals the borehole.
Opened cartridges can be reused by changing static mixers.

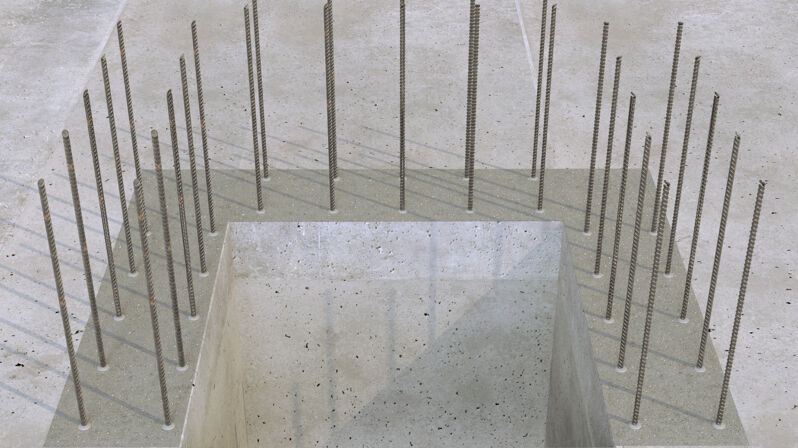

Installation in concrete with FIS RC II Low Speed in hammer drilled holes

1 / 8

ETA Certification Document

pdf, ETA-22/0501

European Technical Assessment for fischer injection system FIS RC II and FIS RC II Low Speed - Bonded fasteners and bonded expansion fasteners for use in concrete

Készült 09/23/2025

DOP - Declaration of Performance

pdf, DoP No. 0387

Declaration of Performance for fischer injection system FIS RC II / FIS RC II Low Speed (Bonded fastener for use in concrete)

Készült 10/22/2025

ETA Certification Document

pdf, ETA-22/0502

European Technical Assessment for Rebar connection with fischer injection system FIS RC II and FIS RC II Low Speed - Systems for post-installed rebar connections with mortar

Készült 09/23/2025

DOP - Declaration of Performance

pdf, DoP No. 0388

Declaration of Performance for fischer injection system FIS RC II / FIS RC II Low Speed (Mortar for post-installed rebar connections)

Készült 10/22/2025

ETA-approval
Language on label	DE, EN, IT
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Packaging	Cartridge
Amount	1 pcs
GTIN (EAN-Code)	4048962479911

ETA-approval
Language on label	EN, ES, PT
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Packaging	Cartridge
Amount	1 pcs
GTIN (EAN-Code)	4048962479928

ETA-approval
Language on label	EN, PL, RU
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Packaging	Cartridge
Amount	1 pcs
GTIN (EAN-Code)	4048962479935

ETA-approval
Language on label	DE, FR, NL
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Packaging	Cartridge
Amount	1 pcs
GTIN (EAN-Code)	4048962479942

ETA-approval
Language on label	DA, FI, NO, SV
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Packaging	Cartridge
Amount	1 pcs
GTIN (EAN-Code)	4048962479959
