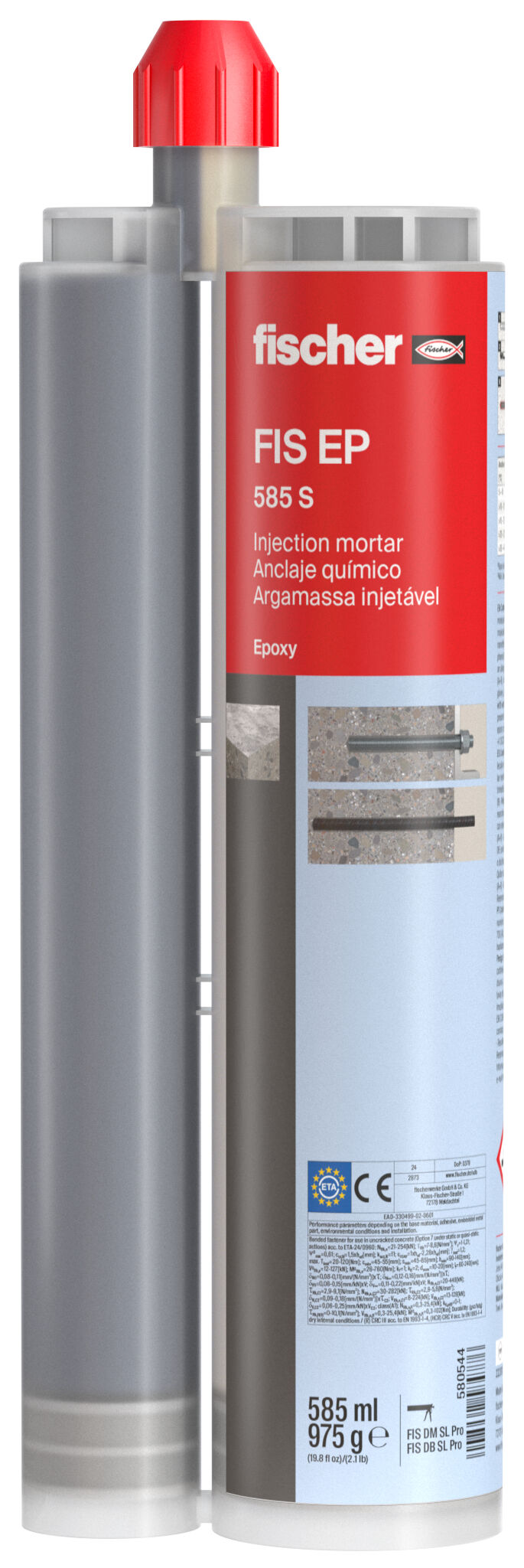

FIS EP for on-site installations in non-cracked concrete.
Variable loads by selecting the anchoring depth of the anchor rod FIS A.
The epoxy resin mortar FIS EP can be used with all standard fischer accessories.
Your advantages / Product description
The cost-efficient epoxy mortar for applications in concrete
Advantages
FIS EP is the economical epoxy resin mortar for applications in non-cracked concrete.
With the anchor rod FIS A, the loads to be introduced can be selected variably by choosing the anchorage depth.
FIS EP can be used for smooth installation with the standard fischer accessories.
In addition to the FIS EM Plus and the FIS EB II, the FIS EP belongs to the family of fischer epoxy resin mortars. The FIS EP is the economical solution for all applications in non-cracked concrete. In combination with the anchor rod FIS A, the loads to be introduced can be selected variably by choosing the anchorage depth.
Application and approval
Applications
Columns
Beams
Shear dowels
Starter bars
Polders
Building materials
Approved for:
Concrete C20/25 to C50/60, non-cracked
You can find detailed information on building materials in the approval document.
Approval
ETA-24/0960
DoP No. 0378
EPD-Kiwa-EE-000430-EN
Assembly instruction
Functionality
The epoxy mortar FIS EP combined with the FIS A threaded rod is suitable for pre-positioned and push-through installation.
Resin and hardener are stored in two separate chambers, thus are not mixed and activated until extrusion through the static mixer.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
The anchor is set manually by slightly rotating it until the anchor reaches the drill hole base.
During push-through installation, the annular gap is filled with FIS EP.
