fischer Plasterboard fixing DuoBlade S with black coated screws (Industry Design)

Name: fischer Plasterboard fixing DuoBlade S with black coated screws (Industry Design)
Brand: fischer

Product Variant

Download of image data

Top Features

High torque when anchor is installed for the feelgood-factor and an optimum feeling when setting.
Anti rotation lock prevents from spinning in the drill hole.
Use of commercially available hooks, screws and eyelets.
PZ2 drive - same drive for plug and screw.
Self-drilling plasterboard plug for fast and easy installation.
With the appropriate black coated screw for special applications in industry design.

The self-drilling plasterboard plug for fast and easy installation

Advantages

An innovative product of the fischer DuoLine with intelligent combinations for more power and more intelligence.
The self-drilling fischer DuoBlade allows fast and easy installation in gypsum plasterboard and gypsum fibreboard.
The black metal tip guarantees simple and safe installation.
High torque when anchor is installed for the feelgood-factor and an optimum feeling when setting.
PZ 2 drive - same drive for plug and screw.

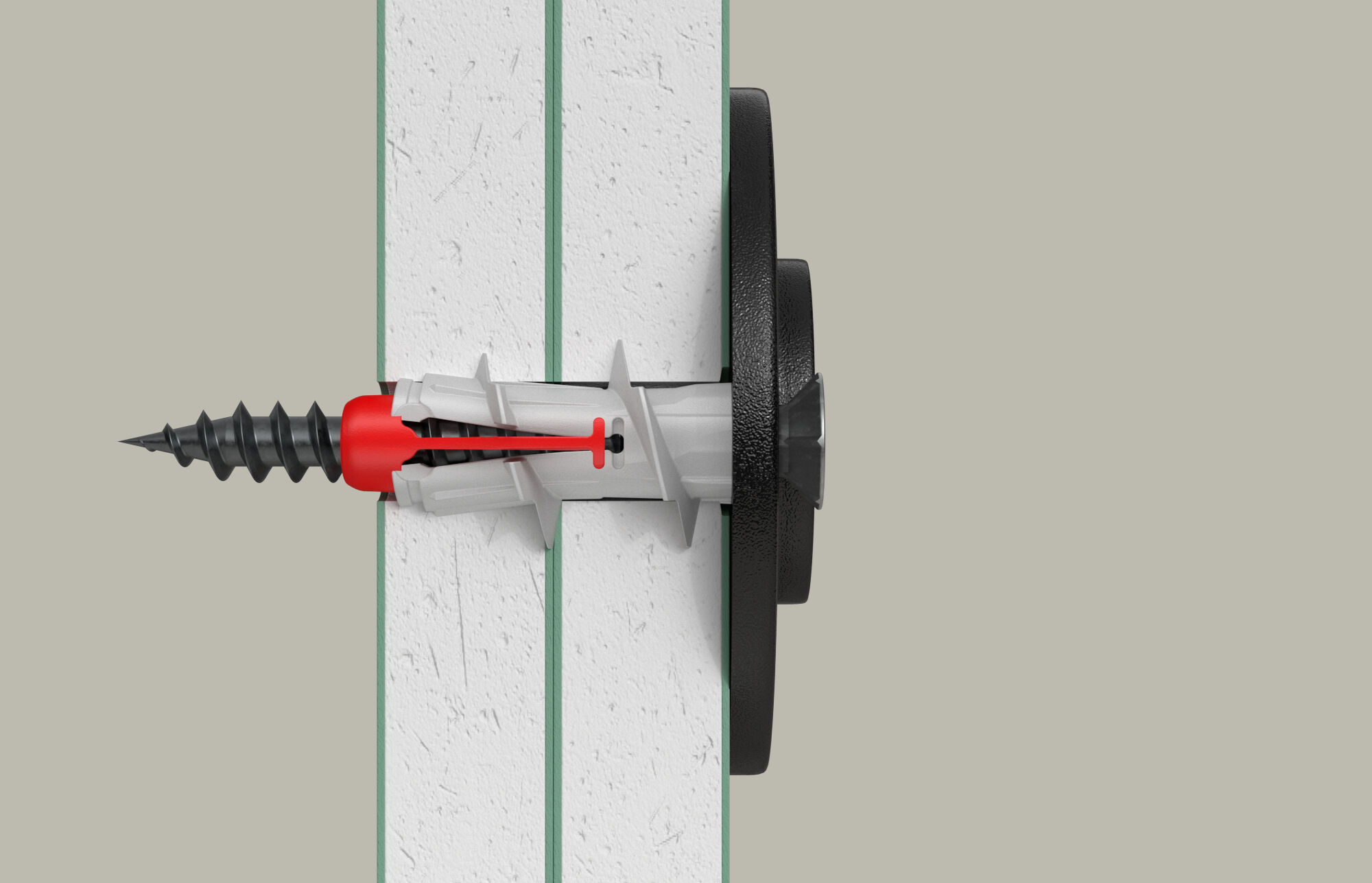

The fischer DuoBlade is part of the innovative DuoLine and therefore consists of different components, which enable the best possible performance. The self-drilling tip allows a clean and effective drilling procedure. The fixing is screwed in the pre-positioned installation with the (cordless) screwdriver setting tool flush to the surface of the gypsum plasterboard. The fischer DuoBlade is adapted for wood, metal and chipboard screws from 4 to 5 mm thickness as well as different hooks and eye screws. Consequently, it is universally suitable for fixing e.g. smoke detectors, curtain rods and shutters securely and quickly. The DuoBlade is placed in the plasterboard with a conventional PZ 2 drive. No special setting device is required.

Min. thickness to first supporting layer ( t )	50 mm
Anchor length ( l )	44 mm
Anchor length without drill tip ( l₁ )	29 mm
Anchorage depth ( h_ef )	9.5-25 mm
Min. bolt penetration ( l_E,min )	28 mm
Wood and chipboard screws ( d_s )	4.5 x 40 mm
Max. load in gypsum fibreboard 12.5 mm	34 kg
Max. load in gypsum plasterboard 12.5 mm	10 kg
Max. load in gypsum plasterboard 9.5 mm	8 kg
Max. load in gypsum plasterboard 2x12.5 mm	20 kg

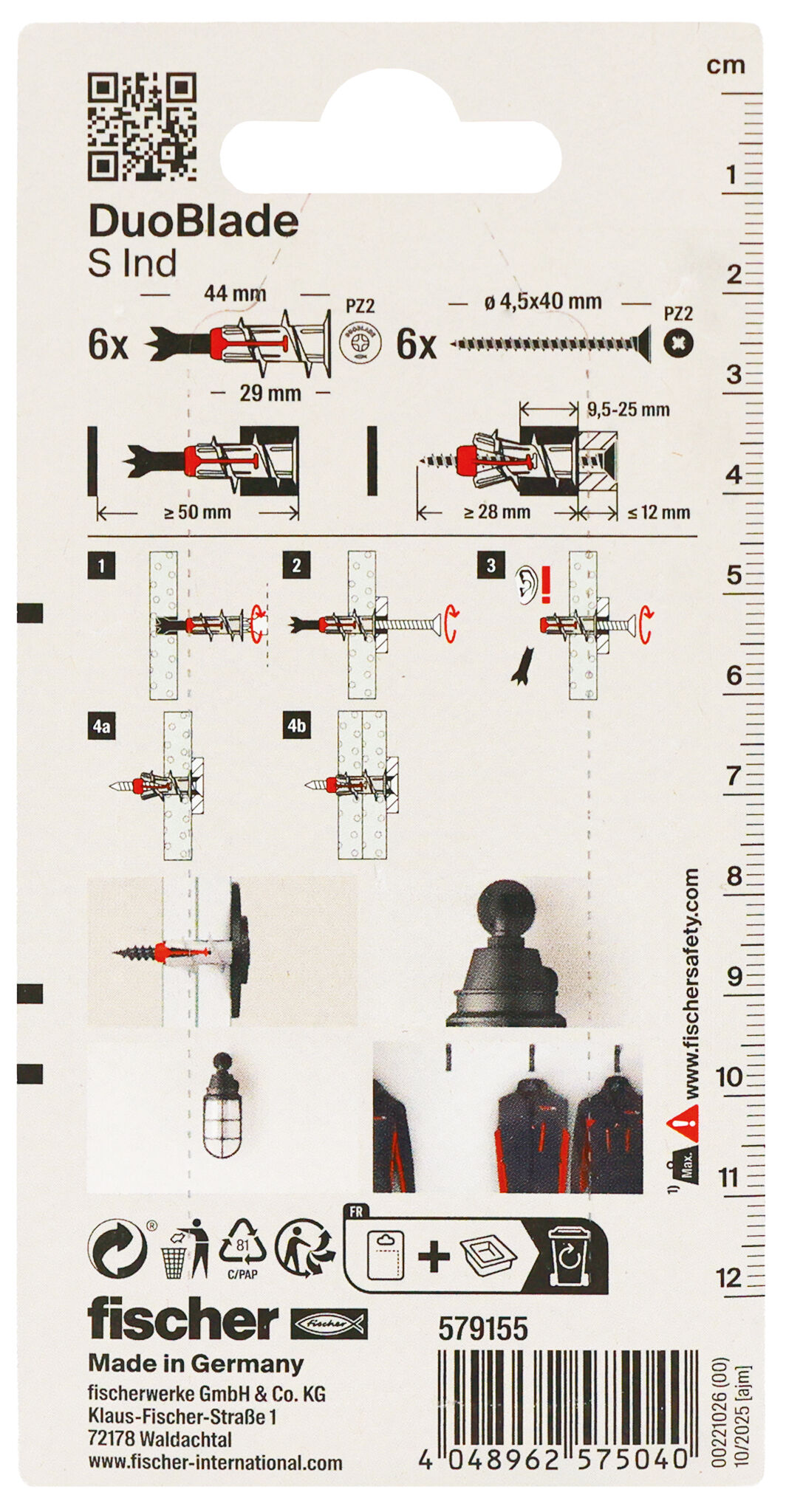

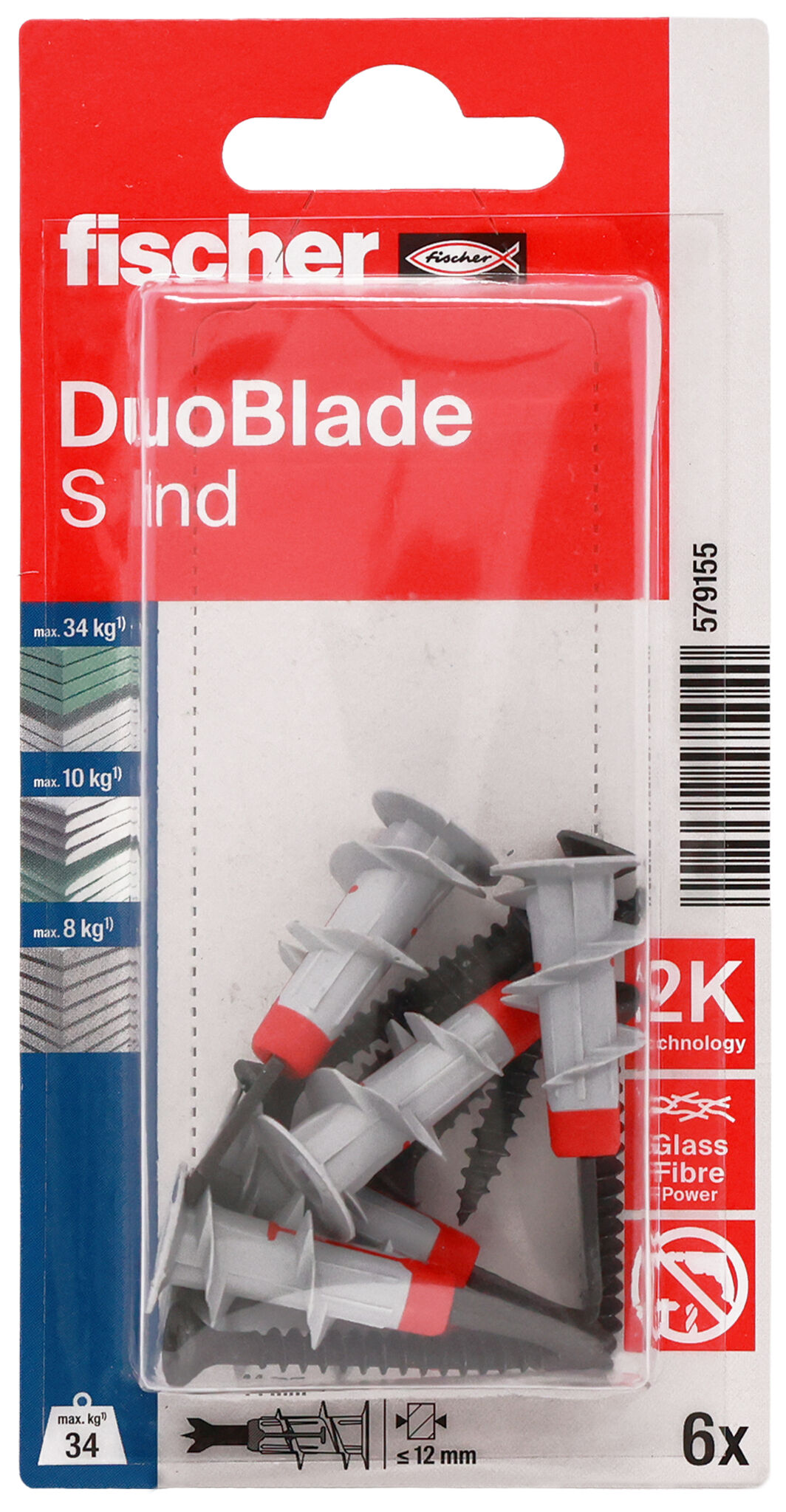

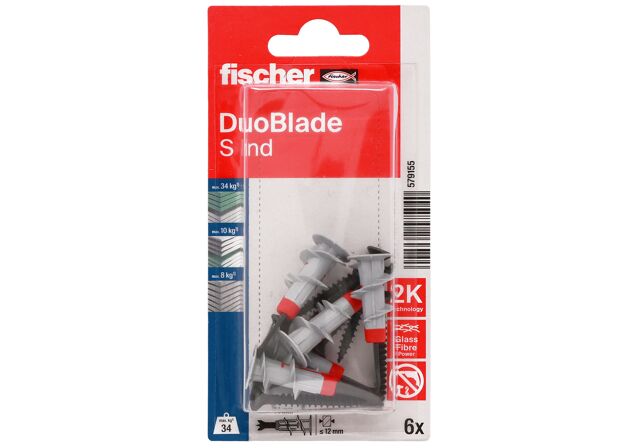

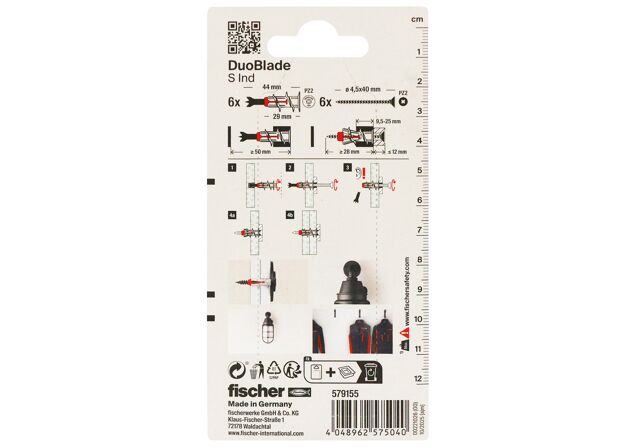

Contents	6 x DuoBlade 6 x Chipboard screw 4.5 x 40 black coated
Packaging	Blister card
Amount	6 pcs
GTIN (EAN-Code)	4048962575040
