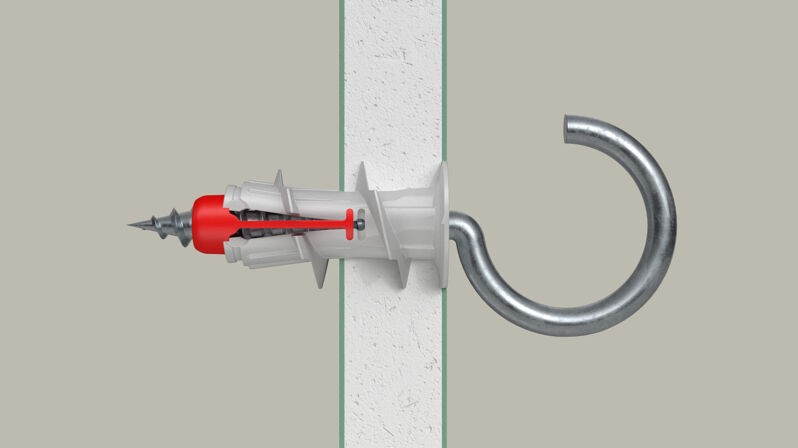

Application and Permission

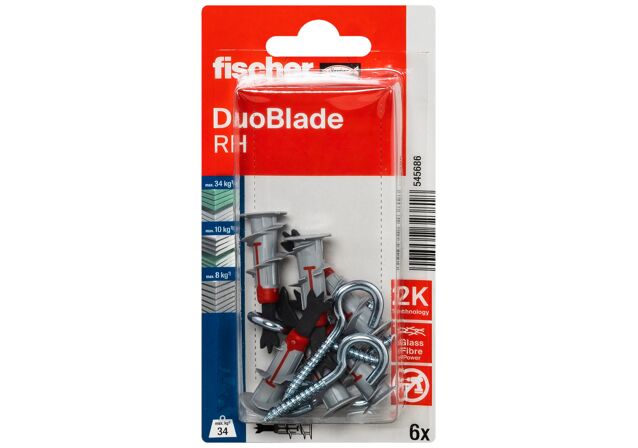

|Card contents||6 x DUOBLADE, 6 x round hook|
|Min. drill hole depth for pre-positioned installation||h1||50||[mm]|
|Min. thickness to first supporting layer||t||50||[mm]|
|Min. bolt penetration||lE,min||28||[mm]|
|Screw||ds x ls||4,5 x 40||[mm]|
|Anchorage depth||hef||9,5 - 25||[mm]|
|Anchor length without drill tip||l1||29||[mm]|
|GTIN (EAN Code)||4048962323818|
